Includes

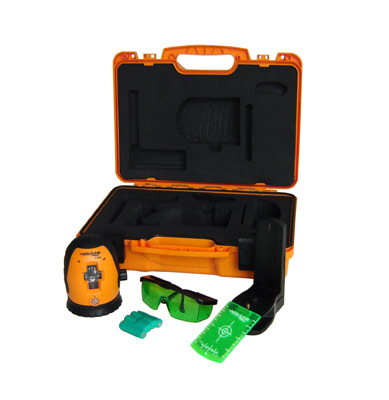

Self-leveling cross line laser level with GreenBrite® technology, tripod/wall mount bracket, mounting strap, 6V battery adapter, tinted glasses, magnetic target, Ni-MH rechargeable battery pack, instruction manual with warranty card and hard-shell carrying case
Technical Specifications
| Leveling Method | Self-Leveling (Pendulum) |
|---|---|
| Laser Wavelength | 532nm +/-10nm (Green) |
| Laser Classification | Class IIIa |
| Maximum Power Output | <=5mW |
| Accuracy | +/-1/8"/35ft. (+/-1mm/5m) |
| Interior Range | Up to 200' (60m) depending on light conditions |
| Exterior Range | N/A |
| Self-Leveling Range | +/-5 degrees |
| Power Supply | Rechargeable battery pack or 6V adapter (included) |
| Battery Life | Approximately 10 hours continuous use |
| Dimensions | 3.875" x 4.25" x 5.125" (98 x 108 x 130mm) |
| Weight | 1.653 lbs (0.75Kg) |
| Working Temperature | 32F to 104F (0C to 40C) |
| Center Screw Thread | 5/8"-11, 1/4"-20 |
| IP Protection Class | 54 |
| Warranty | 3 Years |
