40-6527 Includes
Self-leveling rotary laser level, tinted glasses, alkaline battery compartment, 4 “C” alkaline batteries, instruction manual with warranty card, soft-sided carrying case

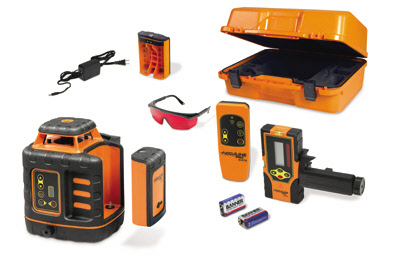

40-6532 Includes

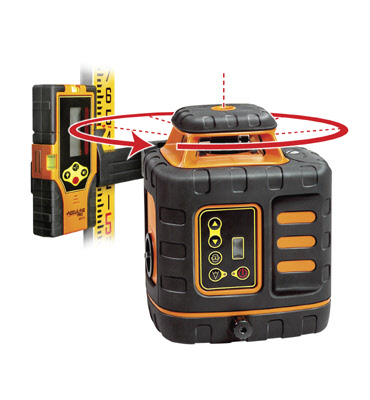

Self-leveling rotary laser level, Ni-MH rechargeable battery pack, 6V battery adapter, 4 “C” alkaline battery compartment (batteries not included), detector with clamp and 9V battery, remote control and 9V battery, tinted glasses, instruction manual with warranty card, hard-shell carrying case
Technical Specifications
| Leveling Method | Self-Leveling (Pendulum) |
|---|---|
| Laser Wavelength | 635nm +/-10nm |
| Laser Classification | Class IIIa |
| Maximum Power Output | <=5mW |
| Accuracy | +/-1/8"/100ft. (+/-1mm/10m) |
| Interior Range | Up to 200' diameter (60m) depending on light conditions |
| Exterior Range | Up to 2000' diameter (600m) with detector |
| Remote Range | N/A |
| Slope | N/A |
| Auto-Leveling Range | +/-3.5 degrees |
| Grade Setting | N/A |
| Power Supply | Rechargeable NiMH battery pack, or 6V adapter (included), 4 "C" alkaline batteries (not included) |
| Battery Life | Approximately 15 hours with rechargeable battery pack; 20 hours with alkaline batteries |
| Dimensions | 7.087" x 6.378" x 7.953" (180 x 162 x 202mm) |
| Weight | 4.409lbs. (2kg) |
| Working Temperature | 14F to 113F (-10C to +45C) |
| Center Screw Thread | 5/8"-11 |
| Scanning Modes | 0, 30, 60 degrees |
| Rotation Speeds | 150, 200, 250, 300 rpm |
| IP Protection Class | 66 |
| Warranty | 3 Years |
Johnson Level Rapid Response Center for Repair and Service
In the U.S., call 888-953-8357 from 8AM-5PM CT. In Canada, call 514-695-7221 8AM-5PM ET.
Manuals
40-6532/6527 - English
40-6532/6527 - French
40-6532/6527 - Spanish
