Includes

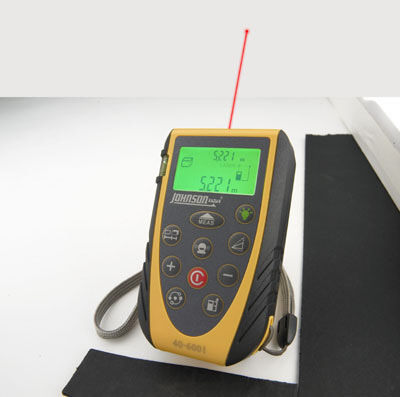

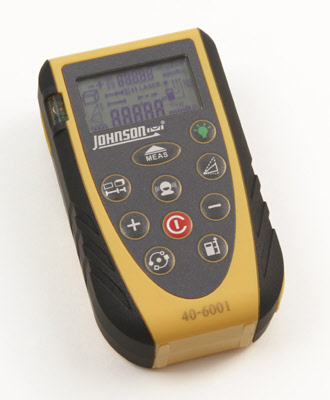

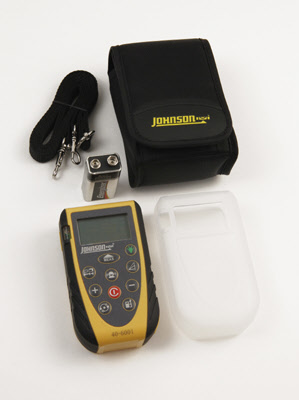

Laser distance measure, soft-sided pouch, safety strap, rubberized LDM protection cover, 9V battery, instruction manual
Technical Specifications
| Accuracy | ±1/16" (±2mm) |
|---|---|
| Battery Life | 5,000 Measurements |

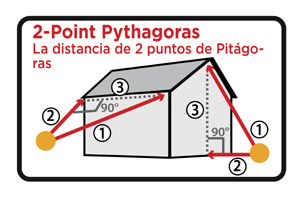

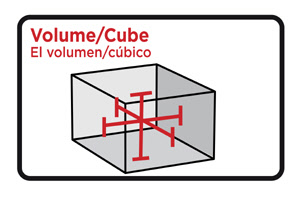

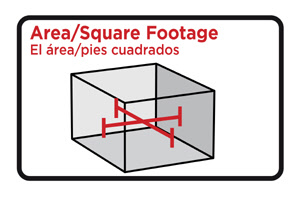

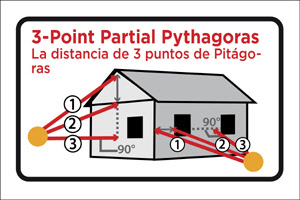

| Calculated Measuring | Addition/Subtraction, Area, Volume, 3 Pythagoras Functions (2-Point, 3-Point, 3-Point Partial) |
| Dimensions | 4.1" x 2.4" x 1.3" (104 x 61 x 33mm) |
| Indirect Measuring | Pythagoras Functions: Front, Rear, Tripod Thread |
| IP Protection Class | 54 |
| Laser Classification | Class II |
| Laser Wavelength | 650nm (Red) |
| Maximum Power Output | <1mW |
| Measurement Reference Settings | Front, Rear, Tripod Thread |
| Measuring Types | Single Distance, Min/Max, Continuous Measuring, Sound Activated Mode, stakeout Function (2 settings) |
| Power Supply | 1 9V alkaline battery (included) |
| Temperature Range Storage | -4°F to +140°F (-20°C to +60°C) |
| Temperature Range Usage | +32°F to +104°F (0°C to 40°C) |
| Tripod Screw Thread | 1/4" - 20 |
| Units of Measure | Inches, Feet + Inches, Metric |
| Weight | 1.5lbs (0.6kg) |
| Working Range | 165` (50m) |
