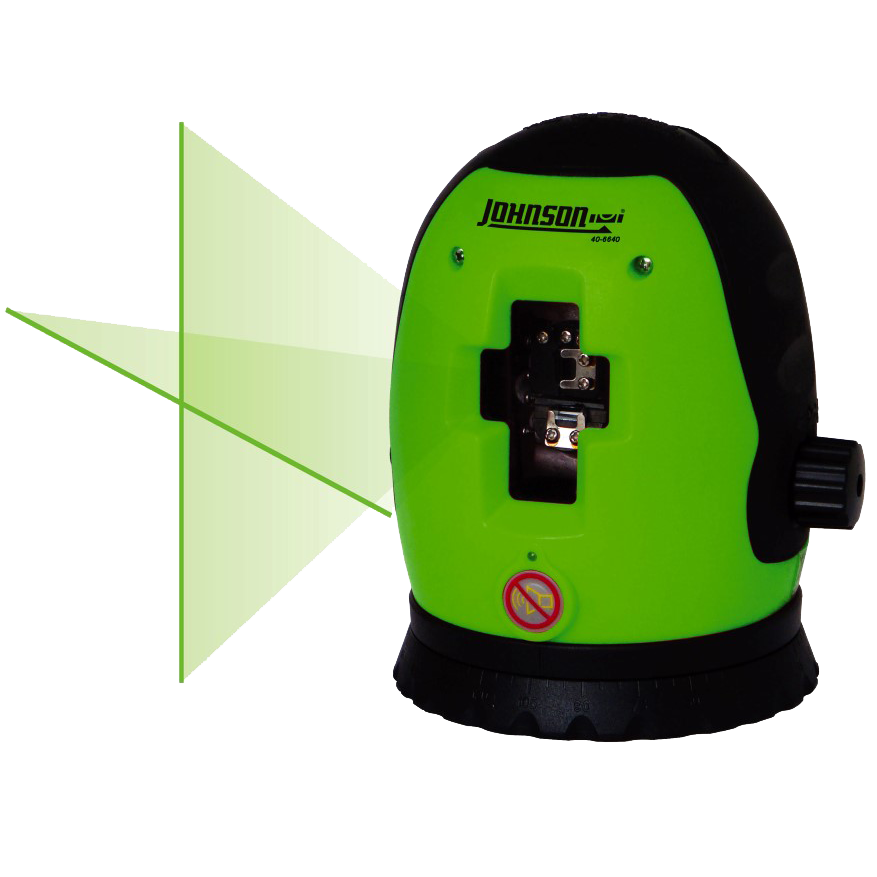

Self-Leveling Cross-Line Laser with GreenBrite® Technology

MODEL #:  40-6640
This product has been discontinued.
  • Green beam is 400% brighter than red beam laser
  • Projects vertical and horizontal laser lines simultaneously
  • Self-leveling with visual and audible alarms when beyond leveling range
  • Locking mechanism protects inner pendulum during transportation
  • Manual mode allows unit to tilt to extreme angles


Includes

Self-leveling cross line laser level with GreenBrite® technology, tripod/wall mount bracket, mounting strap, 6V battery adapter, tinted glasses, magnetic target, Ni-MH rechargeable battery pack, instruction manual with warranty card and hard-shell carrying case

  • Drop ceilings
  • Drywall installation
  • Sprinkler installation
  • HVAC
  • Ceiling joist & rafter alignment
  • Wallpaper & Stenciling/Painting
  • Tiling (walls and floors)
  • Electrical outlets & switches
  • Install conduit & wiring
  • Track lighting
  • Curtain walls / Shower doors
  • Windows
  • Cabinet & countertop alignment
  • Soffits
  • Chair rail / Trim
  • Closet shelves / doors
  • Paneling / Wainscoting

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.

Manuals

40-6640 - English
40-6640 - French
40-6640 - Spanish



Other Support

List of Authorized Non-Warranty Service Centers
Laser Level and Level Full Warranties
View all Product Manuals
Marketing Support
How to Use a Laser Line Level
How to Choose a Laser Line Level for Indoor Use Only

Replacement 6V Battery Adapter
Replacement 6V Battery Adapter Model: 40-6836 $40.72
Replacement Green Magnetic Target
Replacement Green Magnetic Target Model: 40-6846 $13.58
Replacement Green Tinted Glasses
Replacement Green Tinted Glasses Model: 40-6840 $13.58
Replacement Hard-Shell Carrying Case for 40-6640
Replacement Hard-Shell Carrying Case for 40-6640 Model: 40-6360 $84.28
Replacement Soft-Sided Carrying Case for Rotary Laser Level
Replacement Multi-Functional Mount for 40-6640 Model: 40-6356 $21.56
Replacement NiMH Rechargeable Battery Pack for 40-6640
Replacement NiMH Rechargeable Battery Pack for 40-6640 Model: 40-6358 $31.02
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620 Model: 40-6854 $1.00


Product Details

This product has been discontinued.
  • Green beam is 400% brighter than red beam laser
  • Projects vertical and horizontal laser lines simultaneously
  • Self-leveling with visual and audible alarms when beyond leveling range
  • Locking mechanism protects inner pendulum during transportation
  • Manual mode allows unit to tilt to extreme angles


Includes

Self-leveling cross line laser level with GreenBrite® technology, tripod/wall mount bracket, mounting strap, 6V battery adapter, tinted glasses, magnetic target, Ni-MH rechargeable battery pack, instruction manual with warranty card and hard-shell carrying case

Specifications

Accuracy +/-1/8"/50 ft. (+/-2mm/10m)
Battery Life Approximately 10 hours continuous use
Center Screw Thread 5/8"-11, 1/4"-20
Dimensions 3.875" x 4.25" x 5.125" (98 x 108 x 130mm)
Interior Range Up to 200' (60m) depending on light conditions
IP Protection Class 54
Laser Classification Class IIIa
Laser Wavelength 532nm +/-10nm (Green)
Leveling Method Self-Leveling (Pendulum)
Maximum Power Output <=5mW
Power Supply Rechargeable battery pack or 6V adapter (included)
Self-Leveling Range +/-5 degrees
Warranty 3 Years
Weight 1.653 lbs (0.75Kg)
Working Temperature 32F to 104F (0C to 40C)

Application

  • Drop ceilings
  • Drywall installation
  • Sprinkler installation
  • HVAC
  • Ceiling joist & rafter alignment
  • Wallpaper & Stenciling/Painting
  • Tiling (walls and floors)
  • Electrical outlets & switches
  • Install conduit & wiring
  • Track lighting
  • Curtain walls / Shower doors
  • Windows
  • Cabinet & countertop alignment
  • Soffits
  • Chair rail / Trim
  • Closet shelves / doors
  • Paneling / Wainscoting

Support

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.

Manuals

40-6640 - English
40-6640 - French
40-6640 - Spanish



Other Support

List of Authorized Non-Warranty Service Centers
Laser Level and Level Full Warranties
View all Product Manuals
Marketing Support
How to Use a Laser Line Level
How to Choose a Laser Line Level for Indoor Use Only

Replacement Parts

Replacement 6V Battery Adapter
Replacement 6V Battery Adapter Model: 40-6836 $40.72
Replacement Green Magnetic Target
Replacement Green Magnetic Target Model: 40-6846 $13.58
Replacement Green Tinted Glasses
Replacement Green Tinted Glasses Model: 40-6840 $13.58
Replacement Hard-Shell Carrying Case for 40-6640
Replacement Hard-Shell Carrying Case for 40-6640 Model: 40-6360 $84.28
Replacement Soft-Sided Carrying Case for Rotary Laser Level
Replacement Multi-Functional Mount for 40-6640 Model: 40-6356 $21.56
Replacement NiMH Rechargeable Battery Pack for 40-6640
Replacement NiMH Rechargeable Battery Pack for 40-6640 Model: 40-6358 $31.02
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620 Model: 40-6854 $1.00
