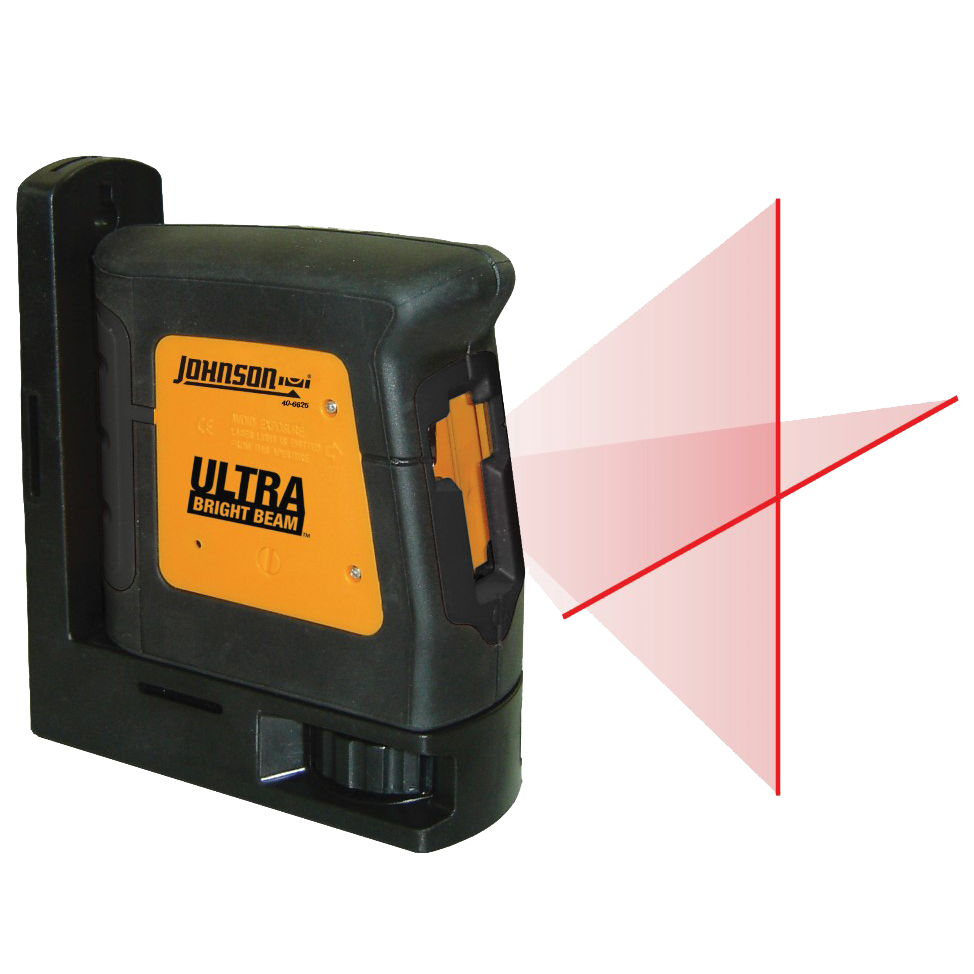

Self-Leveling Ultra-Bright Cross-Line Laser

MODEL #:  40-6625
BUY REFURBISHED
  • High-powered bright red cross beam laser

  • Manual mode allows unit to tilt to extreme angles

  • Locking mechanism protects inner pendulum during transportation

  • Self-leveling with visual and audible alarms when beyond leveling range

  • Multi-functional magnetic base with rare earth magnets for use on walls, metallic surfaces or tripod

40-6625 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, instruction manual with warranty card, soft-sided pouch

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/8"/35ft. (+/-3mm/10m)

Interior Range:

Up to 150ft. (45m) for lines depending upon light conditions

Self-Leveling Range:

+/- 5 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 20 hours continuous use

Dimensions:

2" x 5.25" x 6.25" (51x133x159mm)

Weight:

2Ibs. (0.9kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11, 1/4"-20

IP Protection Class:

55

Warranty:

3 Year Warranty

The Johnson Level 40-6625 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chari rail/trim, closet shelves/drawers, paneling/wainscounting

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.

40-6625 at homedepot.com

Manuals

40-6625 - English
40-6625 - French
40-6625 - Spanish



Other Support

List of Authorized Non-Warranty Service Centers
Laser Level and Level Full Warranties
View all Product Manuals
Marketing Support

Replacement Mount for Cross-Line Laser Levels
Replacement Mount for 40-6620v2, 40-6620v3 and 40-6625 Model: 40-6849 $34.66
Replacement Red Magnetic Target
Replacement Red Magnetic Target Model: 40-6844 $10.20
Replacement Soft-Sided Carrying Case for Cross-Line Laser Level
Replacement Soft-Sided Pouch for 40-6620v2, 40-6620v3 and 40-6625 Model: 40-6807 $5.44
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620 Model: 40-6854 $1.00


Product Details

40-6625 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, instruction manual with warranty card, soft-sided pouch

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/8"/35ft. (+/-3mm/10m)

Interior Range:

Up to 150ft. (45m) for lines depending upon light conditions

Self-Leveling Range:

+/- 5 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 20 hours continuous use

Dimensions:

2" x 5.25" x 6.25" (51x133x159mm)

Weight:

2Ibs. (0.9kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11, 1/4"-20

IP Protection Class:

55

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6625 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chari rail/trim, closet shelves/drawers, paneling/wainscounting
