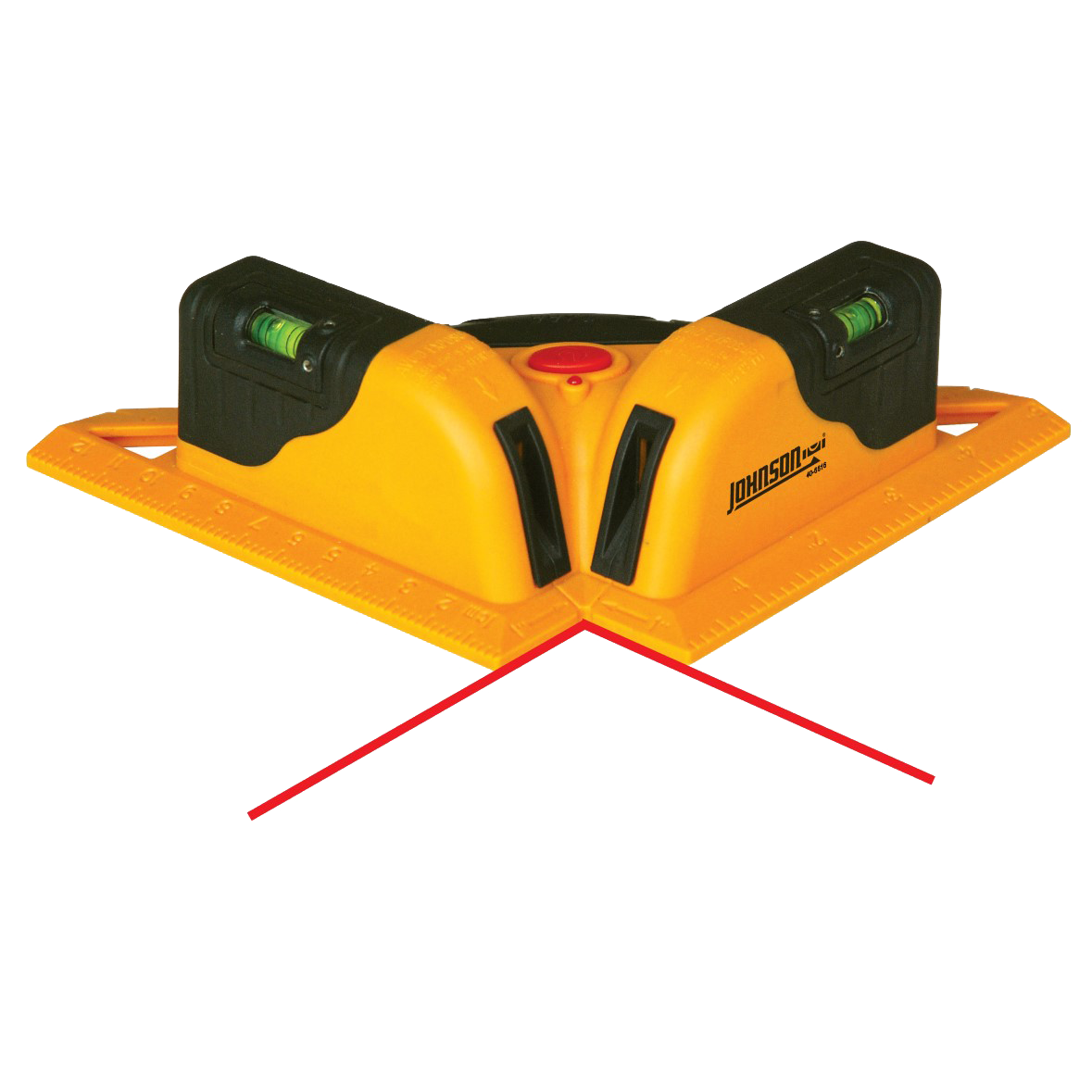

Tiling/Flooring Laser

MODEL #:  40-6616
  • Generates two lines on the floor at a 90 degrees angle for surface layout including tile, stone, brick, carpet and hardwood flooring

  • Projects two laser beams over wet mastic or concrete

  • Angles are easily established with the built-in protractor

40-6616 Includes > Laser, 2 "AA" alkaline batteries, floor target, instruction manual with warranty card, soft-sided pouch

Leveling Method:

Manual (Vials)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW


+/-1/8"/30ft. (+/-4mm/10m)

Interior Range:

Up to 30ft. (9m) depending upon light conditions

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

Approximately 30 hours continuous use


6.125" x 6.125" x 1.938 (155x155x49mm)


0.55Ibs. (0.25kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

IP Protection Class:



3 Year Warranty

The Johnson Level 40-6616 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chari rail/trim, closet shelves/drawers, paneling/wainscounting

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.
