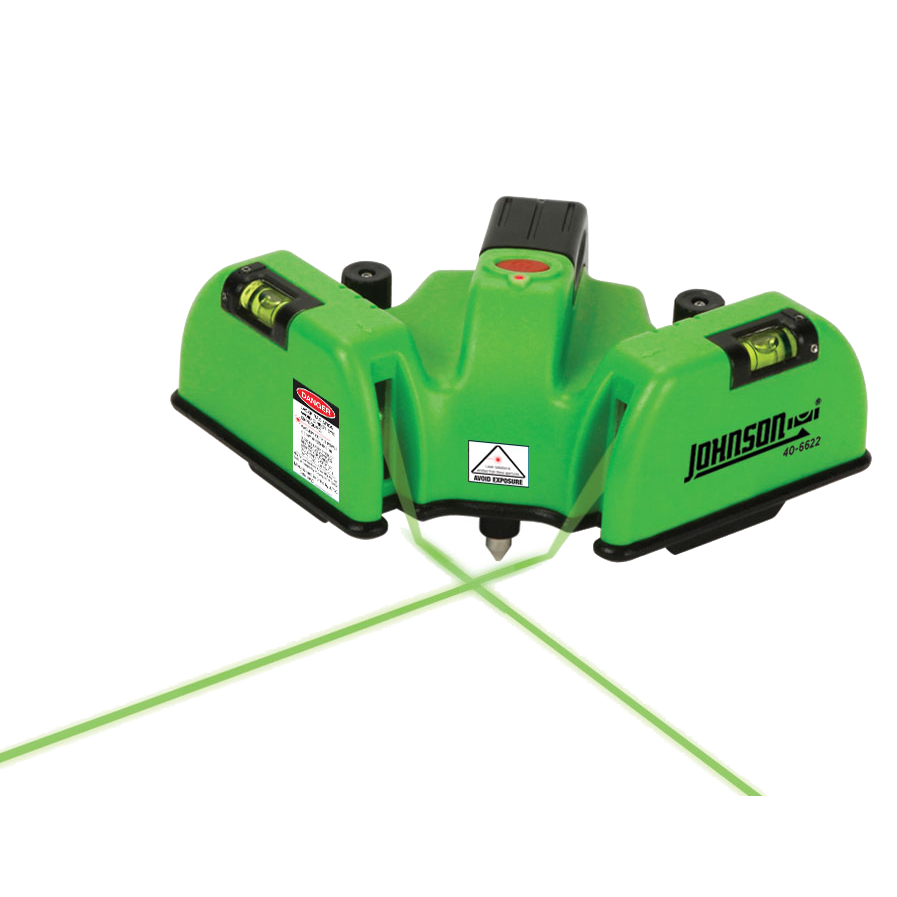

Heavy Duty Flooring Laser with GreenBrite Technology

MODEL #:  40-6622

Beam is 400% more visible than red beam, generates two lines on the floor at a 90° angle for surface layout including tile, stone, brick, carpet and hardwood flooring.  Projects two laser beams over wet mastic or concrete, simple one button operation, robust housing with metal feet, top mounted vials and leveling screws.  40-6622 Includes > Laser, 3 "AA" alkaline batteries, floor taget, and soft-sided carrying case.

40-6622+ Hover over main image to zoom
40-6622
  • Generates two lines on the floor at a 90° angle for surface layout including tile, stone, brick, carpet and hardwood flooring

  • Projects two laser beams over wet mastic or concrete

  • Simple one button operation

  • Robust housing with metal feet

  • Top mounted vials and leveling screws

  • Beam is 400% more visible than red beam

40-6622 Includes > 3 "AA" alkaline batteries, floor target, and soft-sided carrying case

Leveling Method:

Manual (Vials)

Laser Wavelength:

532nm±10nm (Green)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/16"/20 ft.

Interior Range:

Up to 150 ft. depending upon light conditions

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 30 hours of continuous use

Dimensions:

3.50" x 9" x 5.12"

Weight:

1.51 LBS

Working Temperature:

32°F-104°F

Warranty:

3 Years

The Johnson Level 40-6622 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling, tiling (walls and floors), electrical outlets and switches, installing conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, closet shelves, drawers, paneling, and wainscoting

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Flooring Laser Level Instruction Manuals

40-6622 - English
40-6622- Spanish
40-6622- French

Other Support

How to Use a Line Laser Level
How to Use a Self Leveling Laser Level
How to Choose a Laser Line Level for Indoor Use Only

replacement pouch for 40-6618 and 40-6622 image
Replacement Pouch for 40-6618 and 40-6622 Model: 40-6389 $17.40


Product Details

Beam is 400% more visible than red beam, generates two lines on the floor at a 90° angle for surface layout including tile, stone, brick, carpet and hardwood flooring.  Projects two laser beams over wet mastic or concrete, simple one button operation, robust housing with metal feet, top mounted vials and leveling screws.  40-6622 Includes > Laser, 3 "AA" alkaline batteries, floor taget, and soft-sided carrying case.



40-6622 Includes > 3 "AA" alkaline batteries, floor target, and soft-sided carrying case

Specifications

Leveling Method:

Manual (Vials)

Laser Wavelength:

532nm±10nm (Green)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/16"/20 ft.

Interior Range:

Up to 150 ft. depending upon light conditions

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 30 hours of continuous use

Dimensions:

3.50" x 9" x 5.12"

Weight:

1.51 LBS

Working Temperature:

32°F-104°F

Warranty:

3 Years

Application

The Johnson Level 40-6622 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling, tiling (walls and floors), electrical outlets and switches, installing conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, closet shelves, drawers, paneling, and wainscoting

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Flooring Laser Level Instruction Manuals

40-6622 - English
40-6622- Spanish
40-6622- French

Other Support

How to Use a Line Laser Level
How to Use a Self Leveling Laser Level
How to Choose a Laser Line Level for Indoor Use Only

Replacement Parts

replacement pouch for 40-6618 and 40-6622 image
Replacement Pouch for 40-6618 and 40-6622 Model: 40-6389 $17.40
