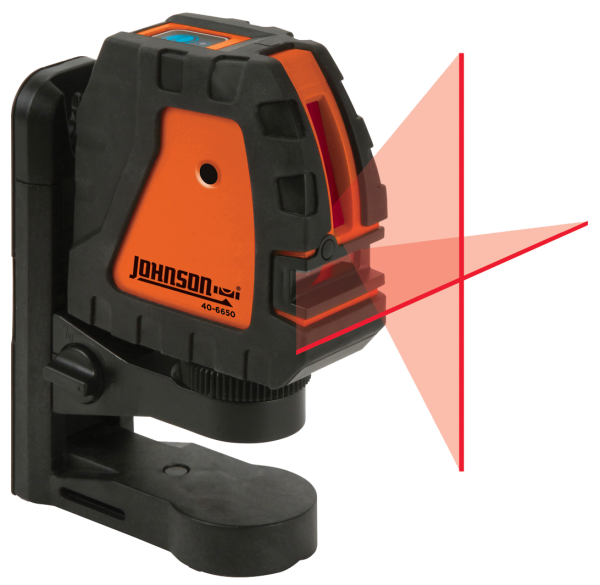

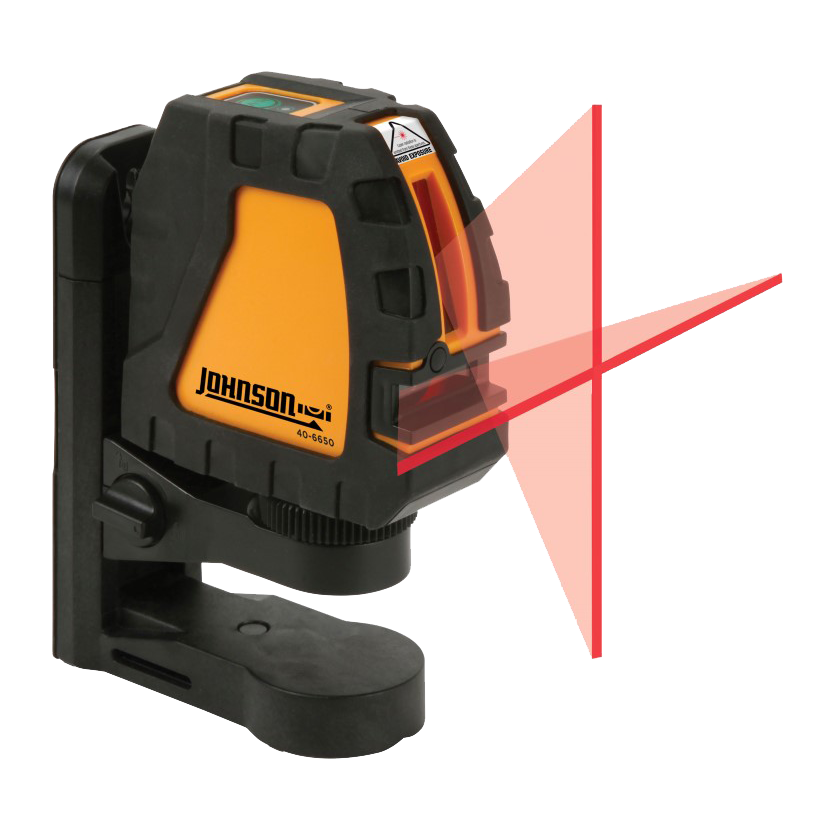

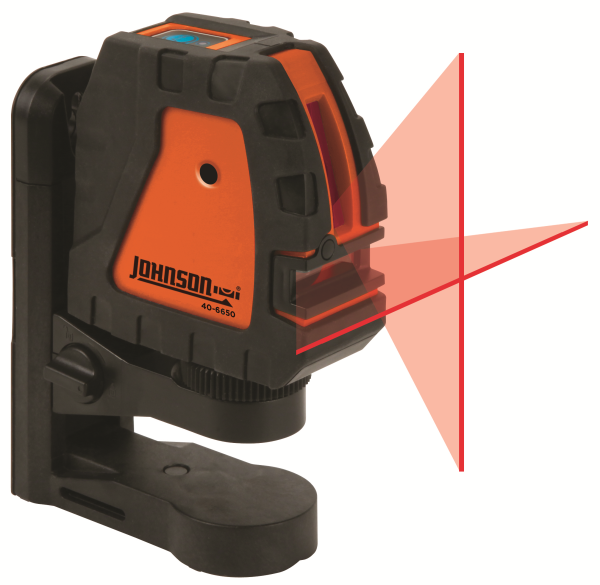

Self-Leveling Cross-Line Laser

MODEL #:  40-6650

Self-leveling, Projects one horizontal, vertical or cross-line beam separately or simultaneously, Visual out of level indicator, Multi-functional elevating magnetic bracket with rare earth magnets for use on walls, metallic surfaces or tripod, While on the bracket, and the laser can be raised or lowered 2-1/2" and rotate 360°.  40-6650 Includes > Laser, multi-functional elevating magnetic bracket, mounting strap, 4 "AA" alkaline batteries, and soft-sided pouch.

+ Hover over main image to zoom
  • Pulse Mode for use with line detector (sold separatley)

  • Projects one horizontal, vertical or cross-line beam separatley or simultaneously

  • Locking compensator

  • Viual out of level indicator

  • Multi-Function elevating megnetic bracket with rare earth magnets for use on walls, metallic surfaces or tripod

  • While on bracket, the laser can be raised or lowered 2-1/2" and rotate 360°

40-6650 Includes > Laser, multi-functional elevating magnetic bracket, mounting strap, 4 "AA" alkaline batteries, and soft-sided pouch

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

650nm±10nm (Red)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±1/8"/35ft.

Interior Range:

Up to 200 ft; Dectector range up to 75ft. (With Johnson model 40-6780)

Self-Leveling Range:

±3 degrees

Power Supply:

4 "AA" alkaline batteries (included); Li-ion rechargeable battery pack (not included)

Battery Life:

24 hours Li-ion; 16 hours alkaline

*battery life as tested with Lithium AA/Alkaline AA batteries and all beams enabled

Dimensions:

5.25" x  2" x  6"

Weight:

1.425 Ibs (0.7kg)

Working Temperature:

14°F to 113°F

Center Screw Thread:

5/8"-11, 1/4"-20

IP Protection Class:

54

Warranty:

3 Year Warranty

The Johnson Level 40-6650 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, paneling/wainscoting.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Cross-Line Laser Level Instruction Manuals

40-6650 Manual

Other Support

How to Use a Line Laser Level
How to Use a Self Leveling Laser Level
How to Choose a Laser Line Level for Indoor Use Only

replacement elevating magnetic bracket image
Replacement Elevating Magnetic Bracket for 40-6650, 40-6656, 40-6645,40-6657, and 40-6551 Model: 40-6392 $40.00
replacement soft-sided carrying case image
Replacement Soft-Sided Carrying Case for 40-6650 and 40-6656 Model: 40-6393 $10.80


Product Details

Self-leveling, Projects one horizontal, vertical or cross-line beam separately or simultaneously, Visual out of level indicator, Multi-functional elevating magnetic bracket with rare earth magnets for use on walls, metallic surfaces or tripod, While on the bracket, and the laser can be raised or lowered 2-1/2" and rotate 360°.  40-6650 Includes > Laser, multi-functional elevating magnetic bracket, mounting strap, 4 "AA" alkaline batteries, and soft-sided pouch.



40-6650 Includes > Laser, multi-functional elevating magnetic bracket, mounting strap, 4 "AA" alkaline batteries, and soft-sided pouch

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

650nm±10nm (Red)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±1/8"/35ft.

Interior Range:

Up to 200 ft; Dectector range up to 75ft. (With Johnson model 40-6780)

Self-Leveling Range:

±3 degrees

Power Supply:

4 "AA" alkaline batteries (included); Li-ion rechargeable battery pack (not included)

Battery Life:

24 hours Li-ion; 16 hours alkaline

*battery life as tested with Lithium AA/Alkaline AA batteries and all beams enabled

Dimensions:

5.25" x  2" x  6"

Weight:

1.425 Ibs (0.7kg)

Working Temperature:

14°F to 113°F

Center Screw Thread:

5/8"-11, 1/4"-20

IP Protection Class:

54

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6650 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, paneling/wainscoting.
