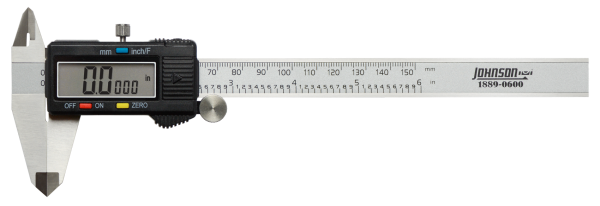

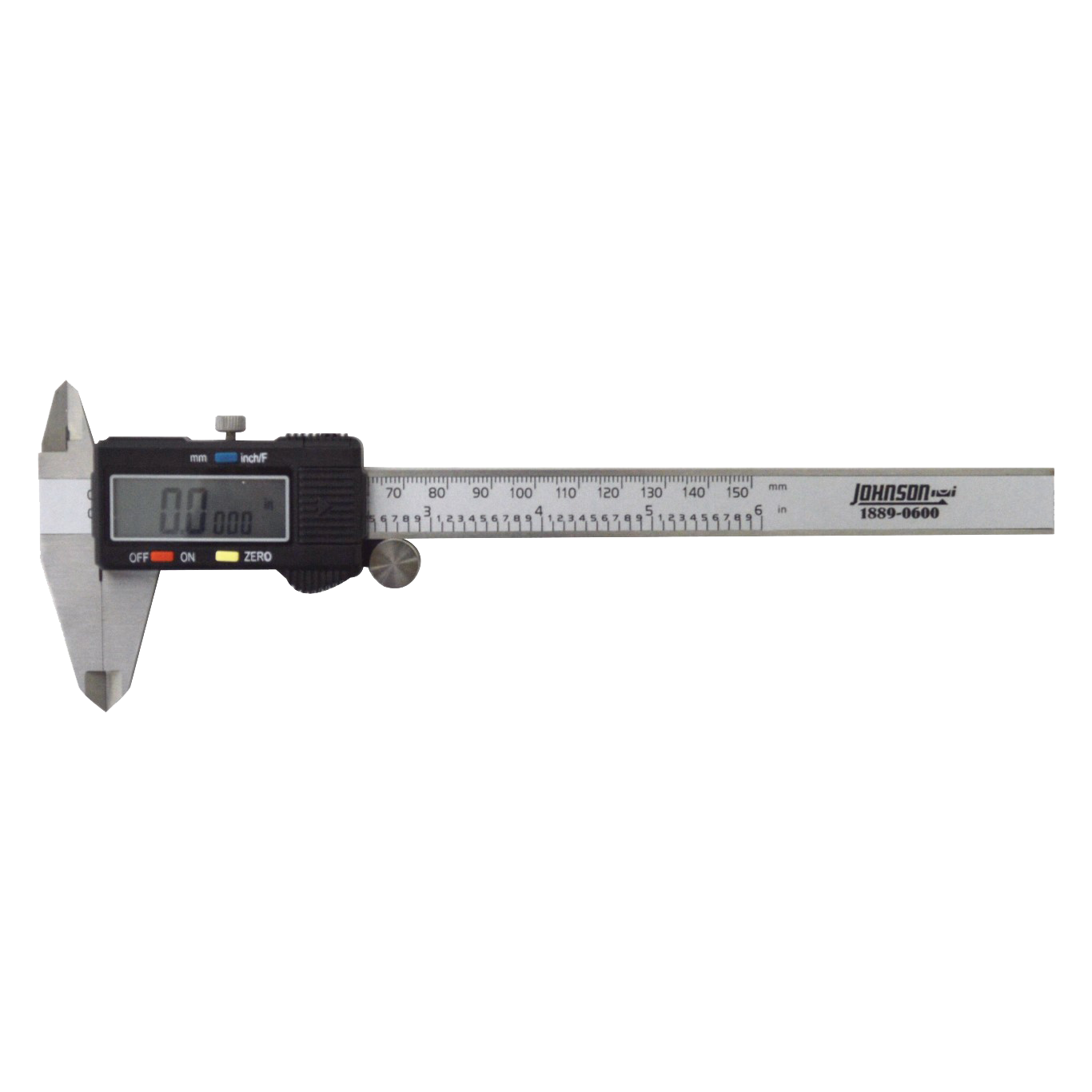

6" Digital Caliper

MODEL #:  1889-0600

When your work requires measurements with extreme accuracy, this digital caliper gets the job done. The 6" digital caliper is an easy-to-use, highly accurate tool for measuring between two opposite sides of a tool or part. The large, easy-to-read LCD screen clearly displays measurements in millimeters, inch-decimal and inch fractions with an accuracy of 0.001". The zero feature allows you to set any position as your zero point at the touch of a button. This caliper also comes with a hard-shell case to keep your tool clean and safe when not in use.

1889-0600+ Hover over main image to zoom
1889-0600
  • Large easy-to-read digital LCD display

  • Measurements read in Millimeters, Inch-Decimal and Inch-Fraction and zero button to set display to 0.000 at any position

  • Zero button to set display to 0.00 at any position

  • Resolution reads to"0.0"05" and"0.0"mm and 1/64" in fraction mode

  • Working range 0 to 6" and 0 to 150mm

  • Scale in tenths of an inch up to 6 inches and millimeters up to 150 millimeters

  • Thumb wheel and locking knob to set and lock the scale at any desired measurement

  • Ideal for inside, outside, depth and step measurements

  • Low battery indicator when display numbers are flashing

  • Automatic shut-off after 5 minutes without use

1889-0600 Includes > 1 LR44 alkaline battery and hard case

Accuracy:

0.001"

Working Range:

0 to 6" and 0 to 150mm

Resolution:

0.0005" and 0.01mm and 1/64" in fraction mode

Power Supply:

1 LR44 alkaline battery (included)

Dimensions:

9.25" x 3.06" x 0.25" (235 x 78 x 6mm)

Weight:

0.34 lbs. (0.15kg)

Warranty:

1 Year Warranty

This caliper can measure a distance or length with much greater accuracy than a ruler or tape measure. It is a useful tool for machinists, laboratory workers, woodworkers or anyone measuring inside, outside or depth dimensions on the jobsite.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Digital Caliper Instruction Manual

1889-0600 - English/French/Spanish

Other Support

How to Choose Construction Measuring Tools

replacement battery cover image
Replacement Battery Cover for 1889-0600 Model: 40-6394 $1.00


Product Details

When your work requires measurements with extreme accuracy, this digital caliper gets the job done. The 6" digital caliper is an easy-to-use, highly accurate tool for measuring between two opposite sides of a tool or part. The large, easy-to-read LCD screen clearly displays measurements in millimeters, inch-decimal and inch fractions with an accuracy of 0.001". The zero feature allows you to set any position as your zero point at the touch of a button. This caliper also comes with a hard-shell case to keep your tool clean and safe when not in use.



1889-0600 Includes > 1 LR44 alkaline battery and hard case

Specifications

Accuracy:

0.001"

Working Range:

0 to 6" and 0 to 150mm

Resolution:

0.0005" and 0.01mm and 1/64" in fraction mode

Power Supply:

1 LR44 alkaline battery (included)

Dimensions:

9.25" x 3.06" x 0.25" (235 x 78 x 6mm)

Weight:

0.34 lbs. (0.15kg)

Warranty:

1 Year Warranty

Application

This caliper can measure a distance or length with much greater accuracy than a ruler or tape measure. It is a useful tool for machinists, laboratory workers, woodworkers or anyone measuring inside, outside or depth dimensions on the jobsite.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Digital Caliper Instruction Manual

1889-0600 - English/French/Spanish

Other Support

How to Choose Construction Measuring Tools

Replacement Parts

replacement battery cover image
Replacement Battery Cover for 1889-0600 Model: 40-6394 $1.00
