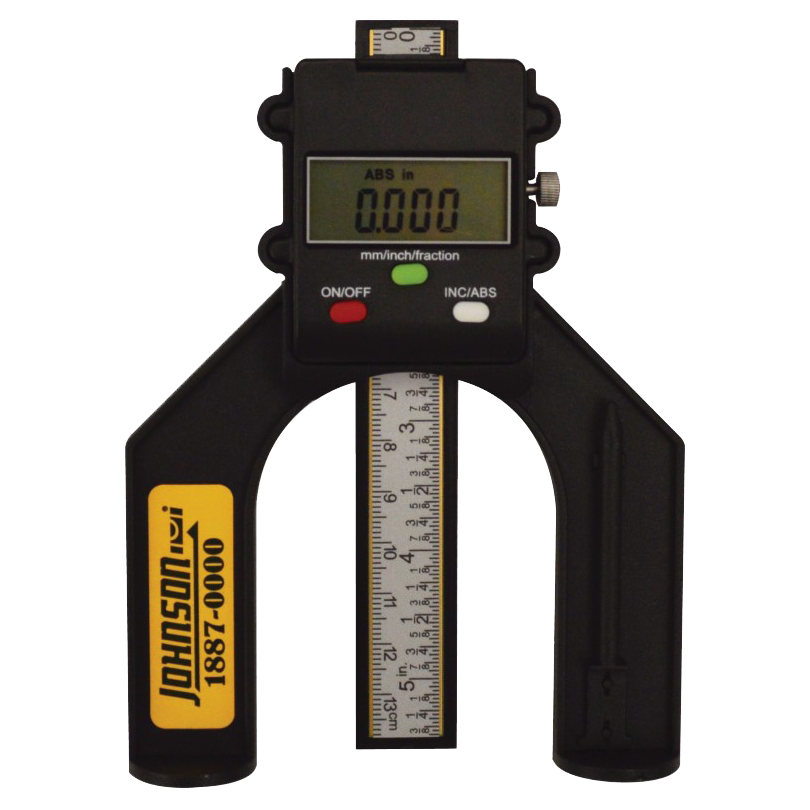

Digital Depth Gauge

MODEL #:  1887-0000

Set your height with greater accuracy with Johnson's digital depth gauge. This tool measures with ± 0.004" accuracy so that your readings are always exact. Its large, easy-to-read digital LCD screen displays in inches (decimal), inches (fractions) or millimeters and in both absolute and incremental modes at the touch of a button. The convenient freestanding measuring scale allows for hands-free use and includes a locking knob to easily lock the scale at any desired measurement. A depth pin is also included for measuring holes.

1887-0000+ Hover over main image to zoom
1887-0000
  • Large easy-to-read digital LCD display

  • Measurements are displayed in: Inches in Decimal, Inches in Fraction and Millimeters with the push of a button

  • Measures in both absolute and incremental modes

  • Automatic shut-off after 5 minutes without use

  • Measuring scale with a locking knob to lock the scale at any desired measurement

  • Free standing scale with a locking knob to lock the scale at any desired measurement

  • Depth pin for measuring holes

1887-0000 Includes > 1 3V CR2032 lithium battery and depth pin.

Accuracy:

± 0.004"/ (± 0.1mm)

Working Range:

Scale: 0-3" (1-80mm) Depth Pin: 0-2" (0-50mm)

Resolution:

± 0.002"/ (± 0.05mm)

Power Supply:

1 3V CR2032 lithium battery (included)

Battery Life:

Approximately 1,500 hours continuous use

Dimensions:

4.35" x 5.63" (110 x 143mm)

Weight:

0.20 lbs. (0.94kg)

Working Temperature:

32ºF to 122ºF (0ºC to 50ºC)

Warranty:

1 Year Warranty

This digital depth gauge is a must-have for woodworkers. Its convenience and accuracy make it ideal for setting heights or measuring depths when using routers, router tables and saw benches.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Depth Gauge Instruction Manual

1887-0000 - English/French/Spanish

Other Support

How to Choose Construction Measuring Tools

replacement battery holder image
Replacement Battery Holder for 1887-0000 Model: 40-6395 $1.00
depth pin image
Replacement Depth Pin for 1887-0000 Model: 40-6396 $1.00


Product Details

Set your height with greater accuracy with Johnson's digital depth gauge. This tool measures with ± 0.004" accuracy so that your readings are always exact. Its large, easy-to-read digital LCD screen displays in inches (decimal), inches (fractions) or millimeters and in both absolute and incremental modes at the touch of a button. The convenient freestanding measuring scale allows for hands-free use and includes a locking knob to easily lock the scale at any desired measurement. A depth pin is also included for measuring holes.



1887-0000 Includes > 1 3V CR2032 lithium battery and depth pin.

Specifications

Accuracy:

± 0.004"/ (± 0.1mm)

Working Range:

Scale: 0-3" (1-80mm) Depth Pin: 0-2" (0-50mm)

Resolution:

± 0.002"/ (± 0.05mm)

Power Supply:

1 3V CR2032 lithium battery (included)

Battery Life:

Approximately 1,500 hours continuous use

Dimensions:

4.35" x 5.63" (110 x 143mm)

Weight:

0.20 lbs. (0.94kg)

Working Temperature:

32ºF to 122ºF (0ºC to 50ºC)

Warranty:

1 Year Warranty

Application

This digital depth gauge is a must-have for woodworkers. Its convenience and accuracy make it ideal for setting heights or measuring depths when using routers, router tables and saw benches.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Depth Gauge Instruction Manual

1887-0000 - English/French/Spanish

Other Support

How to Choose Construction Measuring Tools

Replacement Parts

replacement battery holder image
Replacement Battery Holder for 1887-0000 Model: 40-6395 $1.00
depth pin image
Replacement Depth Pin for 1887-0000 Model: 40-6396 $1.00
