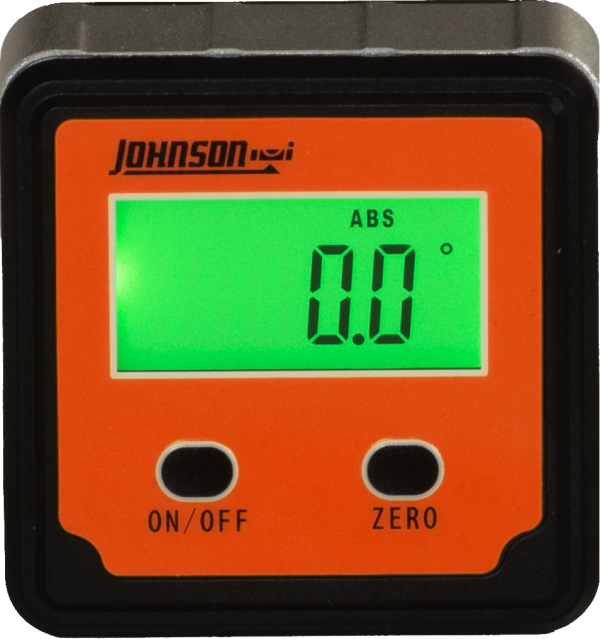

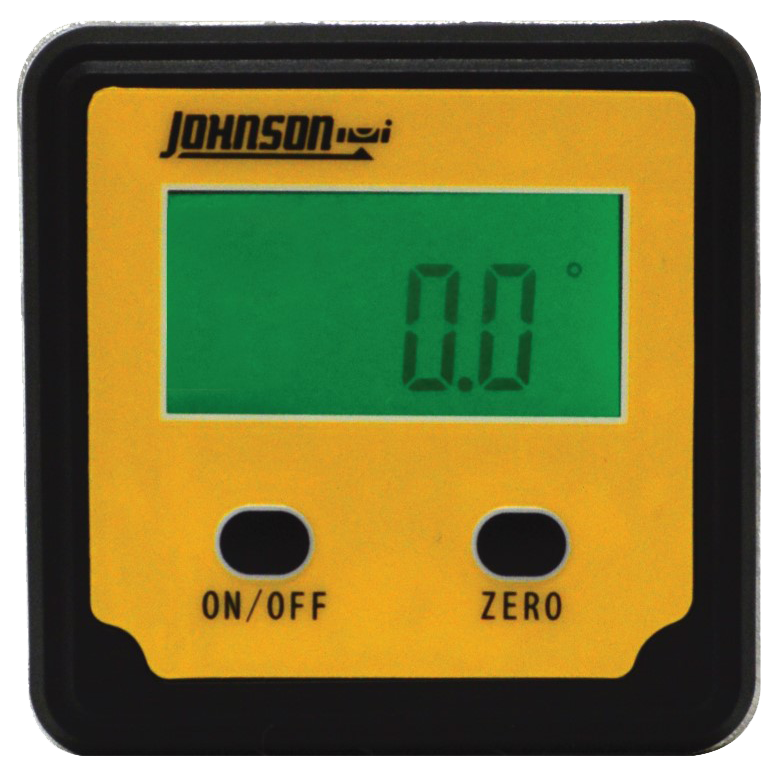

Magnetic Digital Angle Locator 2 Button

MODEL #:  1886-0000

Check and transfer angle measurements easily and accurately with Johnson's compact magnetic digital angle locator. This tool easily and clearly displays angles in degrees from 0° to 90°, in both absolute and relative measurements, making your job go faster and more accurately. It features an automatic LCD backlight for easy visibility, and the reading will automatically invert when you're taking overhead measurements. This angle locator comes with a soft-sided pouch to keep it clean and safe when not in use.

1886-0000+ Hover over main image to zoom
1886-0000
  • Automatic LCD backlight

  • Automatic digit inversion for overhead measurements

  • Measures in both absolute and relative measurements

  • Angle display in degrees

  • Working range of angle measurement 0 x 90 degrees

  • Magnetic base

1886-0000 Includes > 1 "AAA" alkaline battery and soft-sided pouch

Accuracy:

± 0.1° for 0° and 90°, and ± 0.2°

Working Range:

4 x 90°

Resolution:

± 0.1°

Power Supply:

1 "AAA" alkaline battery (included)

Working Temperature:

32°F to 122°F (0° to 50° C)

Warranty:

1 Year Warranty

This magnetic digital angle locator is ideal for checking and transferring angles for remodeling, cabinet or counter installation, measuring roof angles, setting saw angles, aligning wood forms for concrete pours and much more! Its magnetic base makes it especially useful when working on ferrous surfaces such as steel studs. It is a must-have for general contractors, builders, carpenters, tile workers and roofers.
