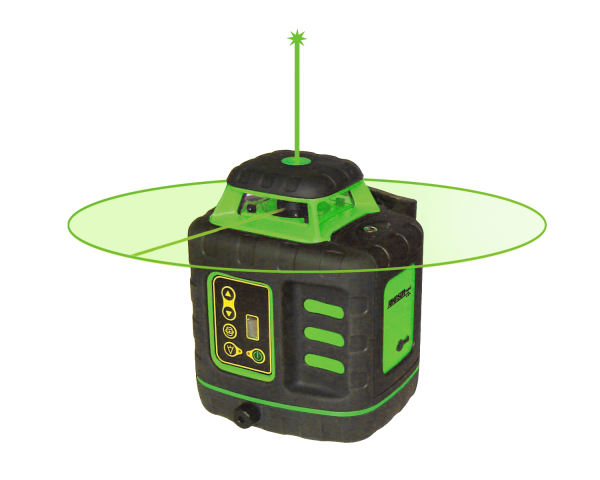

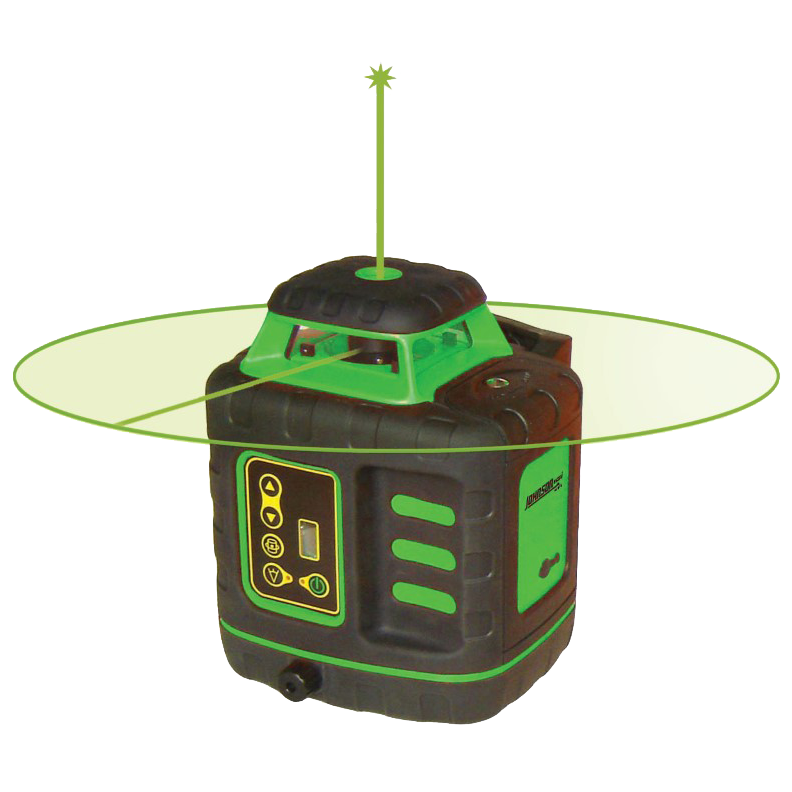

Self-Leveling Rotary Laser Kit with GreenBrite® Technology

MODEL #:  40-6543
BUY REFURBISHED
  • Green Beam is 400% more visible than red beam

  • Self-leveling in the horizontal plane

  • Locking mechanism protects inner pendulum during transportation

  • Manual-leveling in the vertical plane with 90 degrees split beam

  • Laser beam modes include dot and two adjustable line lengths

  • Visual and audible alarms when beyond leveling range

40-6543 Kit Includes > Laser, remote control with 9V battery, wall/ceiling mount, NiMH rechargeable battery pack, 4 "C" alkaline battery comparent (batteries not included), 6.4V battery adapter, tinted glasses, magnetic target, instruction manual with warranty card, hard-shell carrying case

Accuracy +/-1/8"/100ft. (+/-1mm/10m)
Auto-Leveling Range +/-3.5 degrees
Battery Life Approximately 15 hours with rechargeable battery pack; 20 hours with alkaline batteries
Center Screw Thread 5/8"-11
Dimensions 7.087" x 6.378" x 7.953" (180 x 162 x 202mm)
Exterior Range Up to 2000' diameter (600m) with detector
Interior Range Up to 200' diameter (60m) depending on light conditions
IP Protection Class 66
Laser Classification Class IIIa
Laser Wavelength 635nm +/-10nm
Leveling Method Self-Leveling (Pendulum)
Maximum Power Output <=5mW
Power Supply Rechargeable NiMH battery pack, or 6.4V adapter (included), 4 "C" alkaline batteries (not included)
Rotation Speeds 150, 200, 250, 300 rpm
Scanning Modes 0, 30, 60 degrees
Warranty 3 Years
Weight 4.409lbs. (2kg)
Working Temperature 14F to 113F (-10C to +45C)

The Johnson Level 40-6543 can be used for the following indoor applications; layout of interior walls, check door and window heights, acoustical/drop ceilings, layout warehouse racking, room additions, drywall installation, partition installation, squaring floor and wall tiles, installing sprinkler systems, align and plumb walls, level floors, metal stud and wood framers, level cabinets, level shelving and countertops.

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.

Rotary Laser Level Instruction Manuals

40-6543 - English
40-6543 - French
40-6543 - Spanish

Other Johnson Laser Level Support

List of Authorized Non-Warranty Laser Level Service Centers
Laser Level and Level Full Warranties
All Leveling Product Manuals
Johnson Level Marketing Support
Replacement 6.4V Battery Adapter
Replacement 6.4V Battery Adapter Model: 40-6838 $37.62
Replacement Alkaline Battery Compartment (no batteries) for 40-6520, 40-6525, 40-6530 and 40-6543
Replacement Alkaline Battery Compartment (no batteries) for 40-6520, 40-6525, 40-6530 and 40-6543 Model: 40-6834 $5.10
Replacement Hard-Shell Carrying Case for 40-6543
Replacement Hard-Shell Carrying Case for 40-6543 Model: 40-6363 $100.32
Replacement NiMH Rechargeable Battery Pack for 40-6543
Replacement NiMH Rechargeable Battery Pack for 40-6543 Model: 40-6362 $63.96
Replacement Remote Control with Batteries for 40-6532 and 40-6543
Replacement Remote Control with Batteries for 40-6532 and 40-6543 Model: 40-6735 $94.06
Replacement Wall/Ceiling Mount for 40-6512, 40-6517 and 40-6543
Replacement Wall/Ceiling Mount for 40-6512, 40-6517 and 40-6543 Model: 40-6371 $54.00
Replacement Green Tinted Glasses
Replacement Green Tinted Glasses Model: 40-6840 $13.58
Replacement Green Magnetic Target
Replacement Green Magnetic Target Model: 40-6846 $13.58


Product Details

40-6543 Kit Includes > Laser, remote control with 9V battery, wall/ceiling mount, NiMH rechargeable battery pack, 4 "C" alkaline battery comparent (batteries not included), 6.4V battery adapter, tinted glasses, magnetic target, instruction manual with warranty card, hard-shell carrying case

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

532nm+/-10nm (Green)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/AM262-1/8"/100ft. (+/-1mm/10m)

Interior Range:

Up to 400' (120m) diameter depending upon light conditions

Exterior Range:

Up to 1,200' diameter (365m) with detector (not included)

Remote Range:

Up to 200ft. (60m) diameter

Self-Leveling Range:

+/- 3.5 degrees

Power Supply:

NiMH rechargeable battery pack and 6.4V adapter , 4 "C" batteries

Battery Life:

Approximately 16 hours with rechargeable battery pack; 15 hrs with alkaline batteries

Dimensions:

7.087" x 6.378" x 7.953" (180x 162x202mm)

Weight:

4.40Ibs. (2kg)

Working Temperature:

32 degrees to 104 degrees (0 degrees celsius to +40 degrees celsius)

Center Screw Thread:

5/8"-11

Laser Beam Modes:

0, 30, 60 degrees

Rotation Speeds:

150, 200, 250, 300 RPM

IP Protection Class:

66

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6543 can be used for the following indoor applications; layout of interior walls, check door and window heights, acoustical/drop ceilings, layout warehouse racking, room additions, drywall installation, partition installation, squaring floor and wall tiles, installing sprinkler systems, align and plumb walls, level floors, metal stud and wood framers, level cabinets, level shelving and countertops.

Support

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.

Rotary Laser Level Instruction Manuals

40-6543 - English
40-6543 - French
40-6543 - Spanish

Other Johnson Laser Level Support

List of Authorized Non-Warranty Laser Level Service Centers
Laser Level and Level Full Warranties
All Leveling Product Manuals
Johnson Level Marketing Support

Replacement Parts

Replacement 6.4V Battery Adapter
Replacement 6.4V Battery Adapter Model: 40-6838 $37.62
Replacement Alkaline Battery Compartment (no batteries) for 40-6520, 40-6525, 40-6530 and 40-6543
Replacement Alkaline Battery Compartment (no batteries) for 40-6520, 40-6525, 40-6530 and 40-6543 Model: 40-6834 $5.10
Replacement Hard-Shell Carrying Case for 40-6543
Replacement Hard-Shell Carrying Case for 40-6543 Model: 40-6363 $100.32
Replacement NiMH Rechargeable Battery Pack for 40-6543
Replacement NiMH Rechargeable Battery Pack for 40-6543 Model: 40-6362 $63.96
Replacement Remote Control with Batteries for 40-6532 and 40-6543
Replacement Remote Control with Batteries for 40-6532 and 40-6543 Model: 40-6735 $94.06
Replacement Wall/Ceiling Mount for 40-6512, 40-6517 and 40-6543
Replacement Wall/Ceiling Mount for 40-6512, 40-6517 and 40-6543 Model: 40-6371 $54.00
Replacement Green Tinted Glasses
Replacement Green Tinted Glasses Model: 40-6840 $13.58
Replacement Green Magnetic Target
Replacement Green Magnetic Target Model: 40-6846 $13.58
