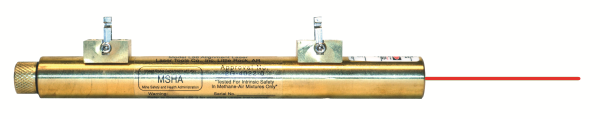

MSHA Mining Alignment Laser

MODEL #:  40-6264

Intrinsically safe and MSHA approved (Mining, Safety & Health Administration) - explosion proof containment not required, Used in above ground and underground operations - extremely rugged with 6mm optics for a small dot at a distance, Laser beam is aligned to be concentric with the outside diameter of the brass housing, This allows the installer to use the outside of the case for centering and positioning the beam, Precision beam alignment - self-cleaning threads - no tools required, Milled Flat on bottom - use as an installation laser level, Large 12mm optics - 20 times brighter than standard lasers, "O" ring seal - water and oil proof to IP67 standards and solid brass - proven to work in hard environments.  40-6264 Includes > Laser, adjustable spad hanging tabs, and 2 "AAA" alkaline batteries.

40-6264+ Hover over main image to zoom
40-6264
  • Intrinsically safe and MSHA approved (Mining, Safety & Health Administration) - explosion proof containment not required

  • Used in above ground and underground operations - extremely rugged with 6mm optics for a small dot at a distance

  • Laser beam is aligned to be concentric with the outside siameter of the brass housing.  This allows the installer to use the outside of the case for centering and positioning the beam.

  • Precision beam alignment - self-cleaning threads - no tools required

  • Large optics - 20 times brighter than standard lasers

  • "O" ring seal - water and oil proof to IP67 standards

  • Solid brass - proven to work in harsh environments

  • Adjustable hanging brackets included - connects to spads directly

40-6264 Includes > Laser, adjustable spad hanging tabs, and 2 "AAA" alkaline batteries.

Laser Wavelength:

635nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

5mw

Beam Divergance:

Less than .15 mrad

Concentric beam Alignment to Case O.D.:

±1/8"/100 ft. (±1mm/10m)

Interior Range:

Up to 500 ft. (150m) 40-6264

Power Supply:

2 "AAA" alkaline batteries (included)

Battery Life:

Approximately 12 hours

Dimensions:

6.8" x .75" (173 x 19mm)

Weight:

0.63 lbs. (0.29kg)

Working Temperature:

14°F to 122°F (-10°C to 50°C)

IP Protection Class:

67

Warranty:

1 Year Warranty

The Johnson Level 40-6260 can be used for the following applications; mining companies (operation of equipment that requires precise alignment to operate properly), align, aim and position parts and machinery, saw mills, CNC machines to align bar feeders, industrial plants, marine work, R&D labs.

Replacement Battery Cap for 40-6264 Model: 40-6897 $150.00


Product Details

Intrinsically safe and MSHA approved (Mining, Safety & Health Administration) - explosion proof containment not required, Used in above ground and underground operations - extremely rugged with 6mm optics for a small dot at a distance, Laser beam is aligned to be concentric with the outside diameter of the brass housing, This allows the installer to use the outside of the case for centering and positioning the beam, Precision beam alignment - self-cleaning threads - no tools required, Milled Flat on bottom - use as an installation laser level, Large 12mm optics - 20 times brighter than standard lasers, "O" ring seal - water and oil proof to IP67 standards and solid brass - proven to work in hard environments.  40-6264 Includes > Laser, adjustable spad hanging tabs, and 2 "AAA" alkaline batteries.



40-6264 Includes > Laser, adjustable spad hanging tabs, and 2 "AAA" alkaline batteries.

Specifications

Laser Wavelength:

635nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

5mw

Beam Divergance:

Less than .15 mrad

Concentric beam Alignment to Case O.D.:

±1/8"/100 ft. (±1mm/10m)

Interior Range:

Up to 500 ft. (150m) 40-6264

Power Supply:

2 "AAA" alkaline batteries (included)

Battery Life:

Approximately 12 hours

Dimensions:

6.8" x .75" (173 x 19mm)

Weight:

0.63 lbs. (0.29kg)

Working Temperature:

14°F to 122°F (-10°C to 50°C)

IP Protection Class:

67

Warranty:

1 Year Warranty

Application

The Johnson Level 40-6260 can be used for the following applications; mining companies (operation of equipment that requires precise alignment to operate properly), align, aim and position parts and machinery, saw mills, CNC machines to align bar feeders, industrial plants, marine work, R&D labs.
