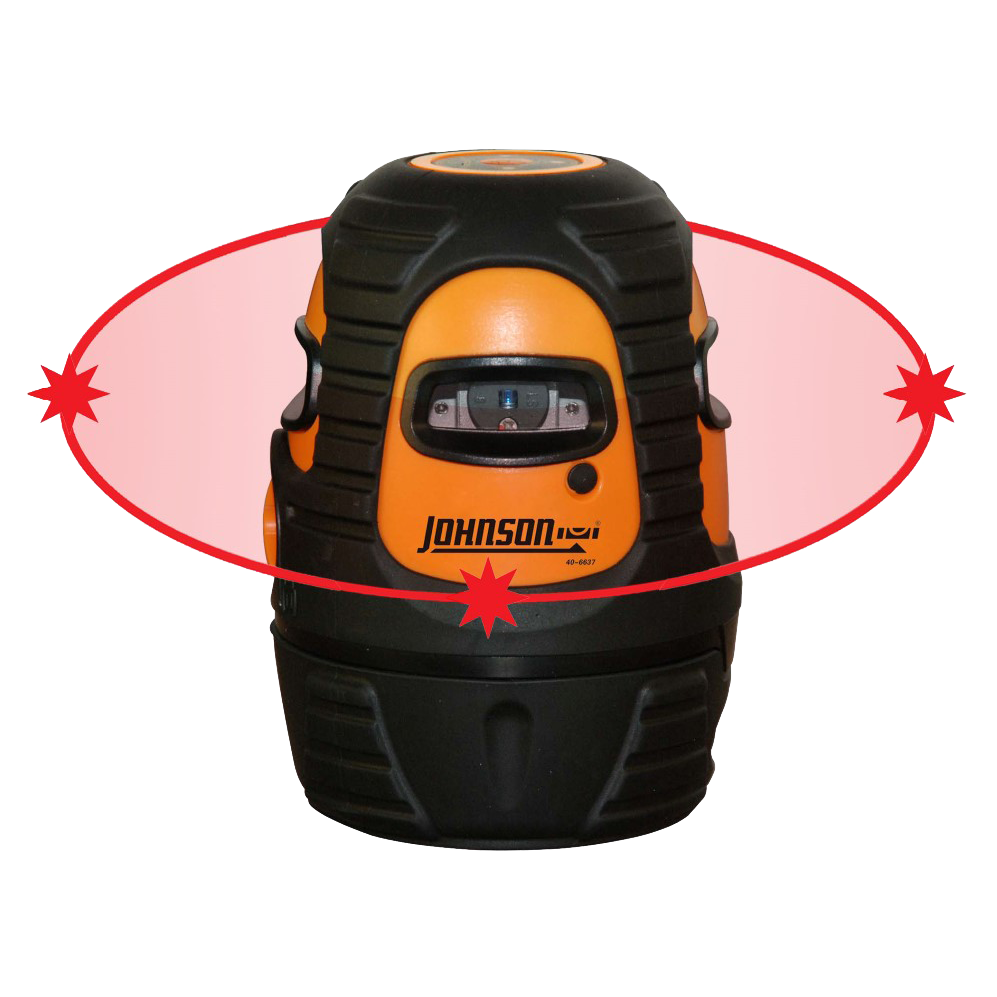

Self-Leveling 360 Degree Line Laser with 4 Horizontal Dots Kit

MODEL #:  40-6639

Locking mechanism protects inner pendulum during transportation, Manual mode allows unit to tilt to extreme angles, Self-leveling 360 degree contunuous horizontal laser line with four laser dots at 90 degrees, Self-leveing with visible and audible alarms when beyond leveling range, and Laser beam can be set to pulse for use with line detector.  40-6639 Includes > Laser, 4 "AA" alkaline batteries, detector with 9V battery and clamp, wall mount bracket, mounting strap, and soft-sided carrying case.

40-6639+ Hover over main image to zoom
40-6639
40-6639
  • Locking mechanism protects inner pendulum during transportation

  • Manual mode allows unit to tilt to extreme angles

  • Self-leveling 360 degree contunuous horizontal laser line with four laser dots at 90 degrees

  • Visible and audible alarms when beyond leveling range

  • Laser beam can be set to pulse for use with optional line detector (included in 40-6639)

40-6639 Includes > Laser, 4 "AA" alkaline batteries, detector with 9V battery and clamp, wall mount bracket, mounting strap, and soft-sided carrying case

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to I/M/5M

Accuracy:

+/-1/8"/50ft. (+/-1m/5m)

Interior Range:

Up to 200ft. (60m) diameter depending upon light conditions

Exterior Range:

Up to 300ft. (90m) diameter with detector (included in 40-6639)

Self-Leveling Range:

+/- 5 degrees

Power Supply:

4 "AA" alkaline batteries (included)

Battery Life:

Approximately 10 hours continous use

Dimensions:

3.74" x 5.11" (95x130mm)

Weight:

1.869Ibs (0.84kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11

IP Protection Class:

54

Warranty:

3 Year Warranty

The Johnson Level 40-6639 can be used for the following indoor and outdoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chari rail/trim, closet shelves/drawers, paneling/wainscounting, site preperation, establishing grades, excavating, landscaping-terracing and retaining walls, rough and fine grading, digging basements, setting foundation and footers, retention ponds and septic tank, controlling concrete pours, alignment and plumb of concrete forms, leveling deck floors, establish diagonals and footings for decks/patios, contour framing, drainage.

Replacement Mulit-Functional Magnetic Bracket for 40-6636, 40-6637, 40-6638 and 40-6639
Replacement Mulit-Functional Magnetic Bracket for 40-6636, 40-6637, 40-6638 and 40-6639 Model: 40-6881 $27.00
Replacement Soft-Sided Carrying Case for 40-6638 and 40-6639 Model: 40-6883 $19.80
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620, 40-6625, 40-6680,40-6640, 40-6693, 40-6678, 40-6693, 40-6695, 40-6650, 40-6656, 40-6657, 40-6688, 40-6645 Model: 40-6854 $1.00


Product Details

Locking mechanism protects inner pendulum during transportation, Manual mode allows unit to tilt to extreme angles, Self-leveling 360 degree contunuous horizontal laser line with four laser dots at 90 degrees, Self-leveing with visible and audible alarms when beyond leveling range, and Laser beam can be set to pulse for use with line detector.  40-6639 Includes > Laser, 4 "AA" alkaline batteries, detector with 9V battery and clamp, wall mount bracket, mounting strap, and soft-sided carrying case.



40-6639 Includes > Laser, 4 "AA" alkaline batteries, detector with 9V battery and clamp, wall mount bracket, mounting strap, and soft-sided carrying case

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to I/M/5M

Accuracy:

+/-1/8"/50ft. (+/-1m/5m)

Interior Range:

Up to 200ft. (60m) diameter depending upon light conditions

Exterior Range:

Up to 300ft. (90m) diameter with detector (included in 40-6639)

Self-Leveling Range:

+/- 5 degrees

Power Supply:

4 "AA" alkaline batteries (included)

Battery Life:

Approximately 10 hours continous use

Dimensions:

3.74" x 5.11" (95x130mm)

Weight:

1.869Ibs (0.84kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11

IP Protection Class:

54

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6639 can be used for the following indoor and outdoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chari rail/trim, closet shelves/drawers, paneling/wainscounting, site preperation, establishing grades, excavating, landscaping-terracing and retaining walls, rough and fine grading, digging basements, setting foundation and footers, retention ponds and septic tank, controlling concrete pours, alignment and plumb of concrete forms, leveling deck floors, establish diagonals and footings for decks/patios, contour framing, drainage.
