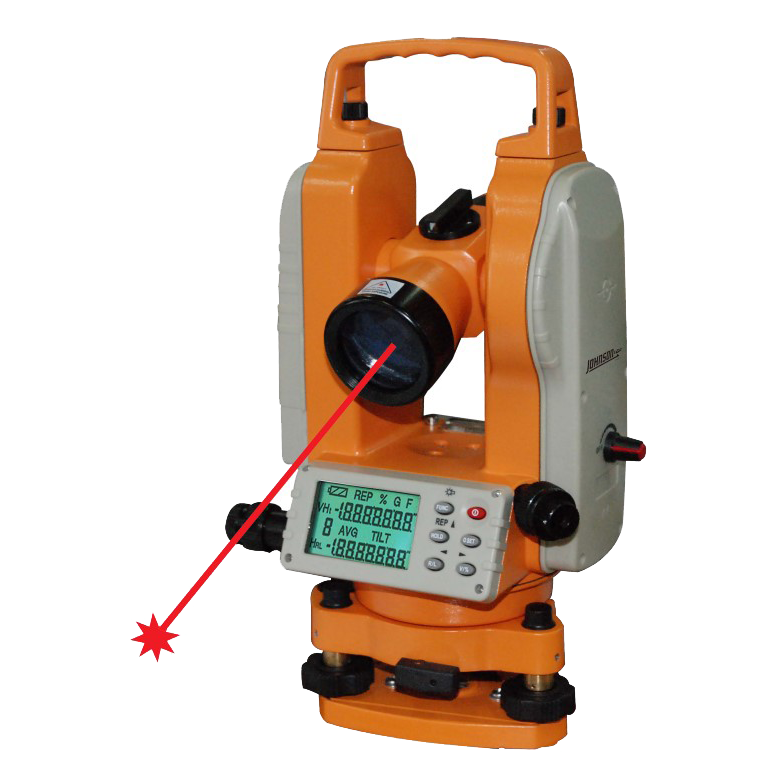

Five-Second Electronic Digital Theodolite with Laser

MODEL #:  40-6936

This electronic digital theodolite with laser offers the simplest and most accurate solution to measuring angles in the horizontal and vertical planes. Its five-second angular accuracy (<1/4" @ 800') guarantees the accuracy your jobsite demands, while its simple six-button keypad and laser plummet keep the setup and operation quick and easy. For maximum convenience, this tool emits a laser beam directly from the aperture - letting you focus on your target with laser precision. The dual LCDs feature large characters that are easy to read while the backlit LCD and telescope reticle are ideal for working in dimly lit work environments. This theodolite comes with everything you'll need to get up and running - including a NiMH rechargeable battery pack, an alkaline battery compartment, rain cover and hard-shell carrying case.

40-6936+ Hover over main image to zoom
40-6936
40-6936
  • Five second angular accuracy - accurate enough for any construction job

  • Vertical axis compensation - tilt sensor provides the highest level of accuracy and be turned on or off depending upon job requirements

  • Dual LCD with large characters - easy to see, angle readings, eliminate errors and reduce eye fatigue

  • Simple six button keypad - quick set-ups and simple operation with low operator learning curve

  • Laser beam is emitted directly from the aperture, but does not impede viewing

  • Large beam can easily and accurately place anchor bolts at regular intervals on a line or set an angle and use the beam to verify your tape measure is properly aligned for the next stake or sight in foots, frames and tilt-up walls - all without pulling a string!

  • Focusable cross-hairs

  • 5/8" - 11 threads for standard tripods

40-6936 Includes > Five second theodolite with laser, NiMH rechargeable battery pack, alkaline battery comparent (batteries not included), 3-7.5V battery adapter, rain cover, and a hard-shell carrying case

Warranty:

3 Year Warranty

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Magnification:

30X

Aperture:

1.7"

Telescope Resolution:

3"

Angle View:

1°30'

Short Distance:

5 ft

Stadia Constant:

100

Telescope Length:

6.18"

Angle Measurement:

Incremental

Minimal Reading:

1", 2", 5", optional

Angle Measurement Unit:

360°, 400gon, 6,400mil

Accuracy:

5"

Tubular Vial:

30"

Circular Vial:

8'

Tilt Sensor:

Upright angle automatice compensation

Compensation Range:

±3'

Plummet:

Laser

Display Type:

Double sided LCD

Date Input & Output:

Joint (one) - RS232

Power Supply:

NiMH or 5 X "AA"

Operating Voltage:

6V DC

Battery Life:

16

Working Temperature:

-4°F to 104°F

Tripod Thread:

5/8"-11

Johnson's electronic digital theodolite is the perfect tool for measuring angles in the horizontal and vertical planes. It is a must-have for surveying and road construction work, and its instant conversion of vertical angles to percent of grade makes it useful for pipe and slope work. The laser beam is ideal for easily and accurately placing anchor bolts at regular intervals on a line or for setting an angle, and the beam can verify your tape measure or measuring wheel is properly aligned to your large workspace.
