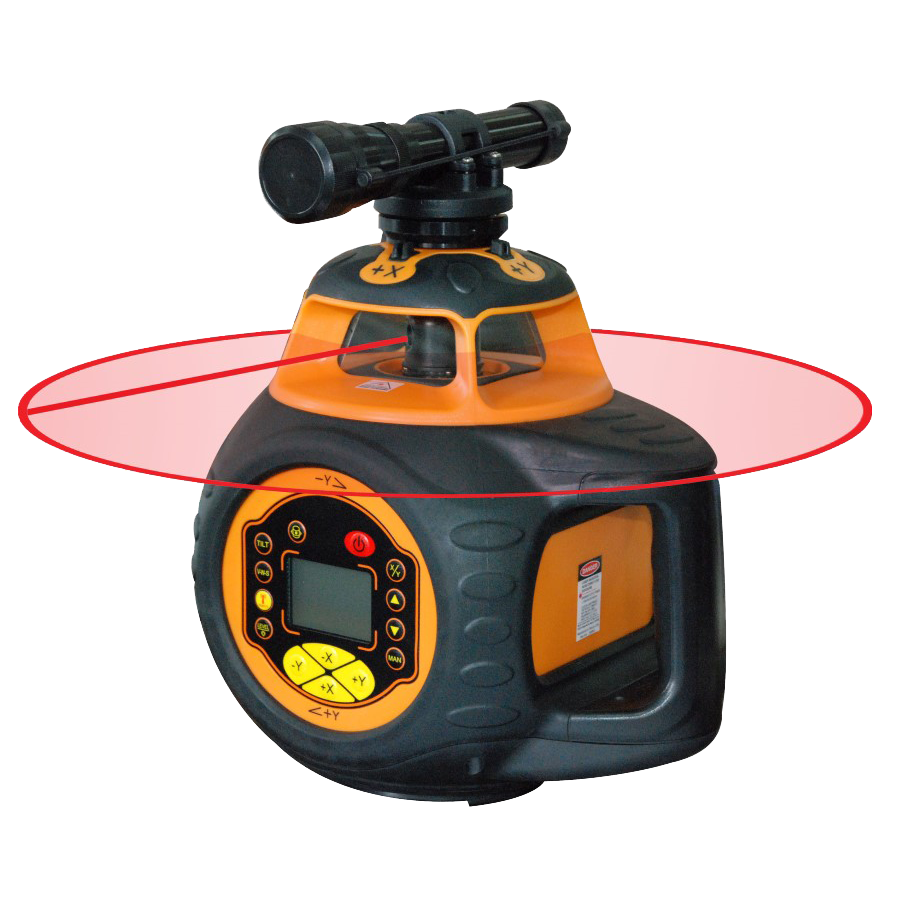

Electronic Self-Leveling Digital Dual Grade Horizontal Rotary Laser Kit

MODEL #:  40-6584

Programmable dual slope function allows user to perform slope at different inclinations in both x and y axis, Electronic beam shield to turn the laser beam off in one to three quadrants, Large +/-8 degrees electronic self level range, When beyond the leveling range, the laser beam will flash, rotation of the beam will stop, and an audible alarm will activate, Height of Instrument/Tilt alarm function ensures product accuracy, Operates with radio frequency remote control, LCD display with backlight illumination , Manual mode allows unit to tilt to extreme angles and two rotational speeds: 600 and 1100 RPM.  40-6584 Includes > Laser, li-ion rechargeable battery pack, alkaline battery comparent (batteries not included), li-ion battery adapter, remote control with 2 "AA" batteries, detector with 9V battery and clamp, sighting scope, slope plate, fine adjusent plate, and a hard-shell carrying case.

40-6584+ Hover over main image to zoom
40-6584
40-6584
  • Programmable dual slope function allows user to perform slope at different inclinations in both x and y axis

  • Electronic beam shield to turn the laser beam off in one to three quadrants

  • Large +/-8 degrees electronic self level range. When beyond the leveling range, the laser beam will flash, rotation of the beam will stop, and an audible alarm will activate

  • Height of Instrument/Tilt alarm function ensures product accuracy

  • Operates with radio frequency remote control

  • LCD display with backlight illumination

  • Manual mode allows unit to tilt to extreme angles and two rotational speeds: 600 and 1100 RPM

  • Two rotation speeds: 600 and 1100 RPM

40-6584 Includes > Laser, li-ion rechargeable battery pack, alkaline battery comparent (batteries not included), li-ion battery adapter, remote control with 2 "AA" batteries, detector with 9V battery and clamp, sighting scope, slope plate, fine adjusent plate, and a hard-shell carrying case

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

+/-1/16"/100 ft.

Interior Range:

Up to 200 ft. diameter

Exterior Range:

Up to 2,000 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter

Auto-Leveling Range:

+/- 8°

Grade Setting:

X-Axis - 10% to+10% Y-Axis - 1% to+ 25% X+Y=20%

Power Supply:

Li-ion rechargable battery pack and Li-ion battery adapter (included), 3 "D" alkaline batteries (not included)

Battery Life:

40 hours with rechargeable battery pack; 100 hrs with alkaline batteries

Dimensions:

 9.76" x 9.25" x 7.08"

Weight:

7.27 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

600 and 1100 RPM

IP Protection Class:

66

Warranty:

3 Years

The Johnson Level 40-6584 can be used for the following outdoor applications; site preperation, establishing grades, excavating, landscaping-terracing and retaining walls, rough and fine grading, digging basements, setting foundation and footers, retention ponds and septic tanks, controlling concrete pours, alignment and plumb of concrete forms, leveling deck floors, establish diagonals and footings for decks/patios, contour framing, drainage.

Replacement Alkaline Battery Compartment (no batteries) for 40-6582 and 40-6584
Replacement Alkaline Battery Compartment (no batteries) for 40-6582 and 40-6584 Model: 40-6888 $19.20
Replacement Fine Adjustment Bracket for 40-6582 and 40-6584
Replacement Fine Adjustment Bracket for 40-6582 and 40-6584 Model: 40-6891 $72.00
Replacement Hard-Shell Carrying Case for 40-6584
Replacement Hard-Shell Carrying Case for 40-6584 Model: 40-6894 $129.00
Replacement LI-ion Adapter for 40-6582 and 40-6584
Replacement Li-ion Charger for 40-6582 40-6584, 40-6546, 40-6548, 40-6557, 40-6558, and 40-6559 Model: 40-6887 $33.00
Replacement LI-ion NiMH Rechargeable Battery Pack for 40-6582 and 40-6584
Replacement LI-ion NiMH Rechargeable Battery Pack for 40-6582 and 40-6584 Model: 40-6889 $168.00
Replacement Remote Control with Batteries for 40-6584
Replacement Remote Control with Batteries for 40-6584 Model: 40-6899 $117.00
Replacement Sight Scope for 40-6580, 40-6582 and 40-6584
Replacement Sight Scope for 40-6580, 40-6582 and 40-6584 Model: 40-6869 $72.00
Replacement Slope Plate for 40-6584
Replacement Slope Plate for 40-6584 Model: 40-6892 $52.80


Product Details

Programmable dual slope function allows user to perform slope at different inclinations in both x and y axis, Electronic beam shield to turn the laser beam off in one to three quadrants, Large +/-8 degrees electronic self level range, When beyond the leveling range, the laser beam will flash, rotation of the beam will stop, and an audible alarm will activate, Height of Instrument/Tilt alarm function ensures product accuracy, Operates with radio frequency remote control, LCD display with backlight illumination , Manual mode allows unit to tilt to extreme angles and two rotational speeds: 600 and 1100 RPM.  40-6584 Includes > Laser, li-ion rechargeable battery pack, alkaline battery comparent (batteries not included), li-ion battery adapter, remote control with 2 "AA" batteries, detector with 9V battery and clamp, sighting scope, slope plate, fine adjusent plate, and a hard-shell carrying case.



40-6584 Includes > Laser, li-ion rechargeable battery pack, alkaline battery comparent (batteries not included), li-ion battery adapter, remote control with 2 "AA" batteries, detector with 9V battery and clamp, sighting scope, slope plate, fine adjusent plate, and a hard-shell carrying case

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

+/-1/16"/100 ft.

Interior Range:

Up to 200 ft. diameter

Exterior Range:

Up to 2,000 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter

Auto-Leveling Range:

+/- 8°

Grade Setting:

X-Axis - 10% to+10% Y-Axis - 1% to+ 25% X+Y=20%

Power Supply:

Li-ion rechargable battery pack and Li-ion battery adapter (included), 3 "D" alkaline batteries (not included)

Battery Life:

40 hours with rechargeable battery pack; 100 hrs with alkaline batteries

Dimensions:

 9.76" x 9.25" x 7.08"

Weight:

7.27 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

600 and 1100 RPM

IP Protection Class:

66

Warranty:

3 Years

Application

The Johnson Level 40-6584 can be used for the following outdoor applications; site preperation, establishing grades, excavating, landscaping-terracing and retaining walls, rough and fine grading, digging basements, setting foundation and footers, retention ponds and septic tanks, controlling concrete pours, alignment and plumb of concrete forms, leveling deck floors, establish diagonals and footings for decks/patios, contour framing, drainage.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Rotary Laser Level Instruction Manuals

40-6584 - English
40-6584 - French
40-6584 - Spanish

Other Johnson Laser Level Support

How to Set Up a Rotary Laser Level
List of Authorized Non-Warranty Laser Level Service Centers
Laser Level and Level Full Warranties
All Leveling Product Manuals
Johnson Level Marketing Support
How to Choose a Rotary Laser Level
How to Calibrate a Rotary Laser Level
How to Use a Rotary Laser Level
How to Choose a Rotary Laser Level for Outdoor Use
How to Choose a Laser Level
How to Use a Laser Level
How to Use a Laser Level Outdoors
How to Use a Laser Level to Hang Pictures
How to Use a Laser Level to Level Ground
How to Set Grade with a Laser Level

Replacement Parts

Replacement Alkaline Battery Compartment (no batteries) for 40-6582 and 40-6584
Replacement Alkaline Battery Compartment (no batteries) for 40-6582 and 40-6584 Model: 40-6888 $19.20
Replacement Fine Adjustment Bracket for 40-6582 and 40-6584
Replacement Fine Adjustment Bracket for 40-6582 and 40-6584 Model: 40-6891 $72.00
Replacement Hard-Shell Carrying Case for 40-6584
Replacement Hard-Shell Carrying Case for 40-6584 Model: 40-6894 $129.00
Replacement LI-ion Adapter for 40-6582 and 40-6584
Replacement Li-ion Charger for 40-6582 40-6584, 40-6546, 40-6548, 40-6557, 40-6558, and 40-6559 Model: 40-6887 $33.00
Replacement LI-ion NiMH Rechargeable Battery Pack for 40-6582 and 40-6584
Replacement LI-ion NiMH Rechargeable Battery Pack for 40-6582 and 40-6584 Model: 40-6889 $168.00
Replacement Remote Control with Batteries for 40-6584
Replacement Remote Control with Batteries for 40-6584 Model: 40-6899 $117.00
Replacement Sight Scope for 40-6580, 40-6582 and 40-6584
Replacement Sight Scope for 40-6580, 40-6582 and 40-6584 Model: 40-6869 $72.00
Replacement Slope Plate for 40-6584
Replacement Slope Plate for 40-6584 Model: 40-6892 $52.80
