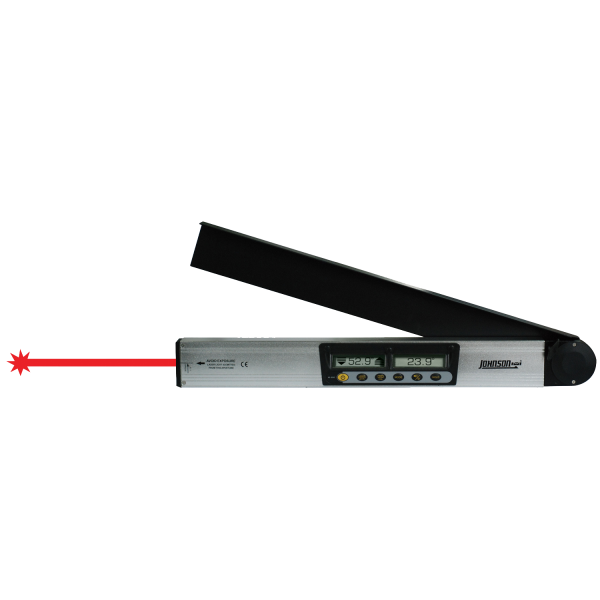

23" Digital Magnetic Level & Angle Locator with Dot Laser

MODEL #:  40-6065
BUY REFURBISHED
  • 5 construction languages - units of measure (degrees, percent, mm/m, in/ft in decimal, in/ft in fractional)

  • Working range of angle measurement is 0 degrees to 182.5 degrees

  • Automatic digit inversion for overhead measurements

  • Backlight for easy-read in dimly lit work environment

  • Laser beam for transfer of reference points

  • Powerful GripTight rare earth magnets hold to ferrous metal surfaces

  • Push button calibration

  • Audible indicator at 0° and 90°

40-6065+ Hover over main image to zoom
40-6065
40-6065_1

40-6065 Includes: Magnetic digital level/angle locator with dot laser, 3 "AA" alkaline batteries, instruction manual, soft-sided pouch

Weight 2.6lbs (1.18kg)
Working Angle Inclination 0° to 90°
Working Range Angle 0° to 182.5°
Working Temperature 14°F to 113°F (-10°C to +45C)
Accuracy ±0.1 for 0° and 90°, and ±0.2 for 1° to 89°
Accuracy Angle ±0.1°
Battery Life Approximately 70 hours continuous use
Center Screw Thread 1/4" - 20
Dimensions 20.8" x 2.48" x 1.57" (528 x 63 x 40mm)
Laser Accuracy ±1/8"/50` (±0.2mm/m)
Laser Classification Class IIIa
Laser Wavelength 650nm ±10
Maximum Power Output 5mW
Power Supply 3 "AA" alkaline batteries (included)
Resolution 0.1° or 0.1%

The Johnson Level 40-6065 can be used for the following indoor and outdoor applications; machine installation for level and plumb, handicap ramp installation, measuring slope or incline, measure angles, bend pipe or sheet metal at precise angles, window and door installation, counter top installation.

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT. In Canada, call 514-695-7221 8AM-5PM ET.

Manuals

40-6065 - English
40-6065 - French
40-6065 - Spanish

Other Support

List of Authorized Non-Warranty Service Centers
Laser Level and Level Full Warranties
View all Product Manuals
Marketing Support
How to Choose a Digital Level

Product Details

40-6065 Includes: Magnetic digital level/angle locator with dot laser, 3 "AA" alkaline batteries, instruction manual, soft-sided pouch

Specifications

Laser Wavelength:

650nm+/-10

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-0.1° for 0 and 90, +/-0.2° for other angles

Laser Accuracy:

+/-1/8"/50ft. (± 0.2mm/m)

Resolution:

0.10%

Working Range Angle:

0-182.5 degrees

Working Angle Inclination:

0-90 degrees

Accuracy Angle:

+/-0.1 degrees

Power Supply:

3 "AA" alkaline batteries and 1 3V CR 2032 lithium battery (included

Battery Life:

Approximately 70 hours continuous use

Dimensions:

20.8" x 2.48" x 1.57" (600 x 63 x 40mm)

Weight:

2.64 lbs. (1.2kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsuis)

Center Screw Thread:

1/4"-20

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6065 can be used for the following indoor and outdoor applications; machine installation for level and plumb, handicap ramp installation, measuring slope or incline, measure angles, bend pipe or sheet metal at precise angles, window and door installation, counter top installation.
