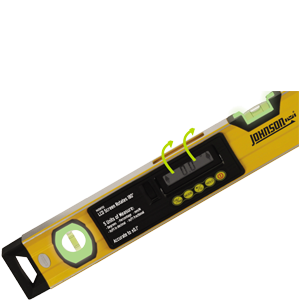

Digital Box Levels with Rotating Display and Glo-View Technology

MODEL #:  40-6028,40-6048
  • Patented Glo-View® vial enhances readability in low light
  • Natural light or hand-held light sources recharge the vial surrounds
  • LCD screen rotates for easy top reading
  • 5 construction languages - units of measure (degrees, percent, mm/m, in/ft in decimal, in/ft in fractional)
  • Self-calibrated
  • 0° to 10° and 80° to 90° position of inclination is confirmed by a signal tone
  • Numbers invert for working overhead
  • Reference function making any slope "0.0"
  • Hold function locks measurement on the LCD

Digital Level Review by Tool Guys
Digital Level Review by Tool Box Buzz
Digital Level Video Review by Tools In Action

40-6028/40-6048 Includes

28” Digital Level or 48” Digital Level, 3 “AAA” alkaline batteries, instruction manual, soft-sided pouch

Accuracy:±0.1° for 0° and 90°; ±0.2° for other angles
Battery Life:Approx. battery life 60 hours continuous use
Dimension Arm To Arm Length:NM
Laser Accuracy:NM
Laser Classification:NM
Laser Wavelength:NM
Power Supply:3 "AAA" alkaline batteries
Working Range Angle:360°; Display ±90°; Definition Rate of 0.1°
Working Temperature:14°F to 113°F (-10°C to +45C)

The 40-6028 and 40-6048 digital levels can be used for the following outdoor and indoor applications,

  • Machine installation for level and plumb
  • Handicap ramp installation
  • Measuring slope or incline

Product Details

  • Patented Glo-View® vial enhances readability in low light
  • Natural light or hand-held light sources recharge the vial surrounds
  • LCD screen rotates for easy top reading
  • 5 construction languages - units of measure (degrees, percent, mm/m, in/ft in decimal, in/ft in fractional)
  • Self-calibrated
  • 0° to 10° and 80° to 90° position of inclination is confirmed by a signal tone
  • Numbers invert for working overhead
  • Reference function making any slope "0.0"
  • Hold function locks measurement on the LCD

Digital Level Review by Tool Guys
Digital Level Review by Tool Box Buzz
Digital Level Video Review by Tools In Action



40-6028/40-6048 Includes

28” Digital Level or 48” Digital Level, 3 “AAA” alkaline batteries, instruction manual, soft-sided pouch

Specifications

Accuracy:±0.1° for 0° and 90°; ±0.2° for other angles
Battery Life:Approx. battery life 60 hours continuous use
Dimension Arm To Arm Length:NM
Laser Accuracy:NM
Laser Classification:NM
Laser Wavelength:NM
Power Supply:3 "AAA" alkaline batteries
Working Range Angle:360°; Display ±90°; Definition Rate of 0.1°
Working Temperature:14°F to 113°F (-10°C to +45C)

Application

The 40-6028 and 40-6048 digital levels can be used for the following outdoor and indoor applications,

  • Machine installation for level and plumb
  • Handicap ramp installation
  • Measuring slope or incline

Support

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.

Download 40-6048 Hgh Resolution Image

Download 40-6028 / 40-6048 Kit High Resolution Image

Manuals

40-6028/40-6048 - English
40-6028/40-6048 - French
40-6028/40-6048 - Spanish
