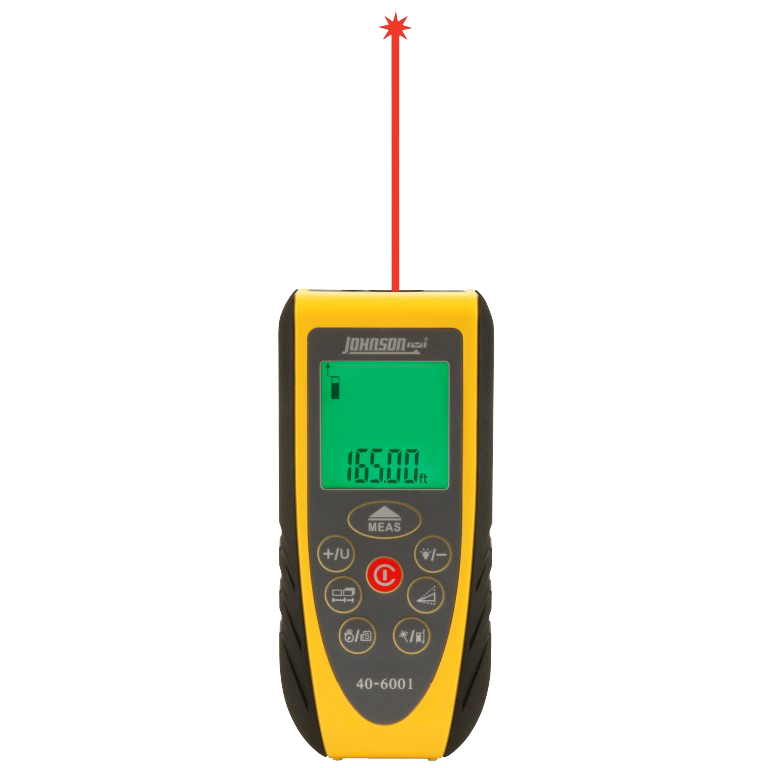

165' Laser Distance Measure

MODEL #:  40-6001
BUY REFURBISHED
  • Stores 20 individual measurements sequentially

  • Use with a tripod for precise measurements

  • Accurate to ñ1/16"/165'

40-6001+ Hover over main image to zoom
40-6001
40-6001

40-6001 Includes > Laser distance measure, soft-sided pouch, safety strap, 2 "AA" alkaline batteries and instruction manual with warranty card

Weight 0.325lbs (0.147kg)
Working Range 2" - 165` (50m)
Accuracy ±1/16" (±2mm)
Battery Life 10,000 Measurements
Calculated Measuring Addition/Subtraction, Area, Volume, 3 Pythagoras Functions (2-Point, 3-Point, 3-Point Partial)
Indirect Measuring Pythagoras Functions: Front, Rear, Tripod Thread
IP Protection Class 52
Laser Classification Class II
Laser Wavelength 650nm (Red)
Maximum Power Output <1mW
Measurement Reference Settings Front, Rear, Tripod Thread
Measuring Types Single Distance, Min/Max, Continuous Measuring, Sound Activated Mode, stakeout Function (2 settings)
Power Supply 2 "AA" alkaline battery (included)
Temperature Range Storage -4°F to +140°F (-20°C to +60°C)
Temperature Range Usage +23°F to +104°F (-5°C to 40°C)
Tripod Screw Thread 1/4" - 20
Units of Measure Inches, Feet + Inches, Metric

The Johnson Level 40-6001 can be used for the following indoor applications; machinery, plumbing, HVAC; warehouse, carpentry, electricians, realtor, appraiser, flooring.

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.

Manuals

40-6001 - English
40-6001 - Spanish



Other Support

List of Authorized Non-Warranty Service Centers
Laser Level and Level Full Warranties
View all Product Manuals
Marketing Support
How to Use a Laser Distance Measure

Replacement Soft-Sided Carrying Pouch for 40-6001v1
Replacement Soft-Sided Carrying Pouch for 40-6001v1 Model: 40-6876 $6.00


Product Details

40-6001 Includes > Laser distance measure, soft-sided pouch, safety strap, 2 "AA" alkaline batteries and instruction manual with warranty card

Specifications

Accuracy:

+/-1/16"

Interior Range:

2"-165'

Power Supply:

Alkaline

IP Protection Class:

52

Warranty:

2 Year Warranty

Application

The Johnson Level 40-6001 can be used for the following indoor applications; machinery, plumbing, HVAC; warehouse, carpentry, electricians, realtor, appraiser, flooring.

Support

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.

Manuals

40-6001 - English
40-6001 - Spanish



Other Support

List of Authorized Non-Warranty Service Centers
Laser Level and Level Full Warranties
View all Product Manuals
Marketing Support
How to Use a Laser Distance Measure

Replacement Parts

Replacement Soft-Sided Carrying Pouch for 40-6001v1
Replacement Soft-Sided Carrying Pouch for 40-6001v1 Model: 40-6876 $6.00
