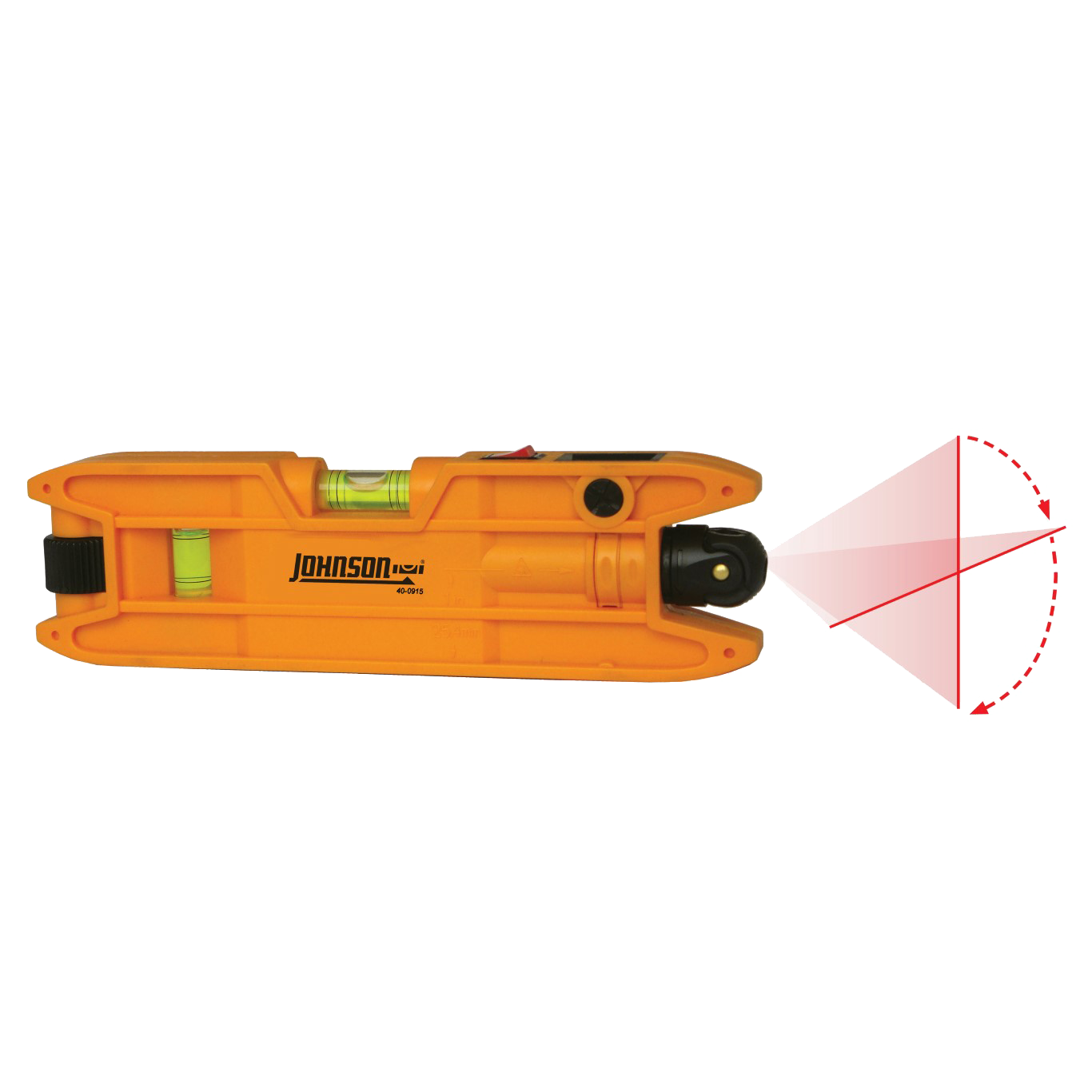

Magnetic Torpedo Laser Level
This magnetic torpedo laser level offers precision, versatility and durability with four vials that read plumb, level, 45° and cross check as well as three simultaneous 90° laser beams for level, plumb and square reference points. For versatility, the level comes equipped with a strong magnetic leveling base, tripod mount and V-groove frame that fits on pipe and conduit. And the precision crafted, anodized aluminum frame provides maximum accuracy and durability. The level also comes with a soft-sided carrying pouch to keep your tool clean and safe when not in use.
+ Hover over main image to zoom
40-6184 Includes > Laser, base (leveling bracket), 3 "AA" alkaline batteries, two mounting straps, and soft-sided pouch
| Accuracy: | ±1/8"/50' |
|---|---|
| Battery Life: | 50 hours |
| Center Screw Thread: | 1/4"-20 |
| Dimensions: | 3.12" x 9.87" x 1.60" |
| Laser Classification: | Class Illa |
| Laser Wavelength: | 650nm±10nm |
| Leveling Method: | Manual (Vials) |
| Maximum Power Output: | ≤5mW |
| Power Supply: | 3 AA Alkaline Batteries (included) |
| Warranty: | 3 Years |
| Weight: | 1.60 Ibs |
| Working Range: | Up to 100' |
| Working Temperature: | 14°F-113°F |
Torpedo levels are designed for use in tight spaces and for projecting the laser over long distances, making this laser level ideal for jobsite layout, concrete formwork, plumbers, electricians, HVAC and more.
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Torpedo Laser Level Instruction Manuals
40-6184 - English
40-6184 - Spanish
40-6184 - French
Product Details
This magnetic torpedo laser level offers precision, versatility and durability with four vials that read plumb, level, 45° and cross check as well as three simultaneous 90° laser beams for level, plumb and square reference points. For versatility, the level comes equipped with a strong magnetic leveling base, tripod mount and V-groove frame that fits on pipe and conduit. And the precision crafted, anodized aluminum frame provides maximum accuracy and durability. The level also comes with a soft-sided carrying pouch to keep your tool clean and safe when not in use.
40-6184 Includes > Laser, base (leveling bracket), 3 "AA" alkaline batteries, two mounting straps, and soft-sided pouch
Specifications
| Accuracy: | ±1/8"/50' |
|---|---|
| Battery Life: | 50 hours |
| Center Screw Thread: | 1/4"-20 |
| Dimensions: | 3.12" x 9.87" x 1.60" |
| Laser Classification: | Class Illa |
| Laser Wavelength: | 650nm±10nm |
| Leveling Method: | Manual (Vials) |
| Maximum Power Output: | ≤5mW |
| Power Supply: | 3 AA Alkaline Batteries (included) |
| Warranty: | 3 Years |
| Weight: | 1.60 Ibs |
| Working Range: | Up to 100' |
| Working Temperature: | 14°F-113°F |
Application
Torpedo levels are designed for use in tight spaces and for projecting the laser over long distances, making this laser level ideal for jobsite layout, concrete formwork, plumbers, electricians, HVAC and more.
Support
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Torpedo Laser Level Instruction Manuals
40-6184 - English
40-6184 - Spanish
40-6184 - French
