Magnetic Locator with LCD

MODEL #:  40-6420
40-6420+ Hover over main image to zoom
40-6420

This Johnson Magnetic Locator with LCD display will detect ferrous metal objects above and under the ground and is perfect for locating survey corner markers, PK and Mag Nails, valve boxes and curb boxes, steel and iron pipes, well casings, steel tanks, lost tools or even downed and buried fence lines.  The lightweight and heavy-duty design is suitable for harsh field conditions and this unit can be submerged in water up to 75-ft deep.  This magnetic locator comes with a limited lifetime warranty.

  • Varying pitch audio signal mode using a moving coil speaker for enhanced audio output
  • Waterproof - sensor tube up to 27.5" and water resistant design
  • Easy to use - one handed operation with three button keypad
  • Rugged construction suitable for field conditions
  • Detection of buried ferrous metal objects at depths up to 8 feet:
    Hand gun - one to two feet
    175mm projective - four to five feet
    55 gallon drum - six to ten feet
  • Detection of ferrous metal objects and weapons on persons
  • Digital LCD display with expanding bar graph indicating polarity and relative signal strength and low battery indicator
  • Provides gain setting indicator icon
  • Eight sensitivity settings
  • 40 hours operational life (intermittent usage)
  • Lightweight - 2.3 lbs including batteries
  • Operating temperature:  -13° to 140°F (-25° 60°C)
  • Overall length:  30" (99cm)
  • Sensor tube constructed of aircraft grade aluminum continuous from handle to sensor tip
  • Control box housing material is high impact ABS plastic
  • Withstands a vertical drop of six feet onto a hard surface
  • Limited lifetime warranty

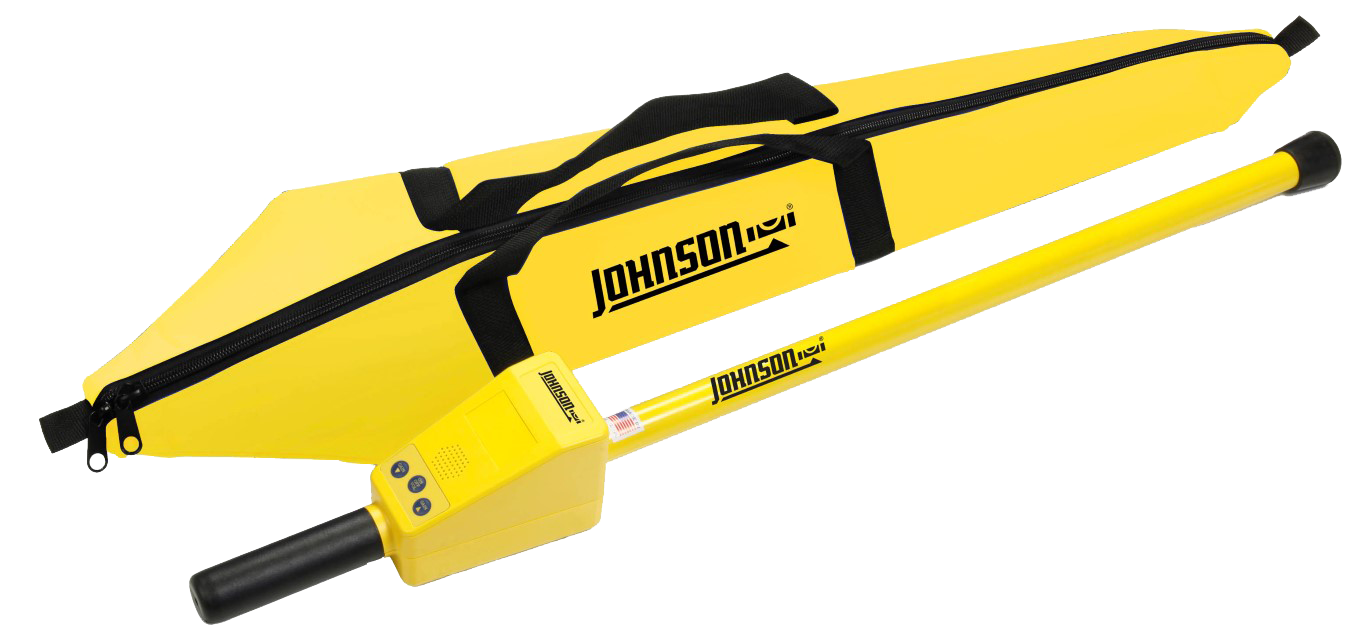

Johnson Level's 40-6420 Magnetic Locator with LCD includes:

  • Magnetic locator with LCD
  • (4) 9V (2 spare) alkaline batteries
  • Instruction manual
  • Soft-sided carrying case

Magnetic Locator Applications,

Detecting any ferrous metal object above or under the ground such as locating survey corner markers, PK and Mag Nails, valve boxes and curb boxes, steel and iron pipes, well casings, steel tanks, lost tools and downed and buried fence lines.
