30X Automatic Level

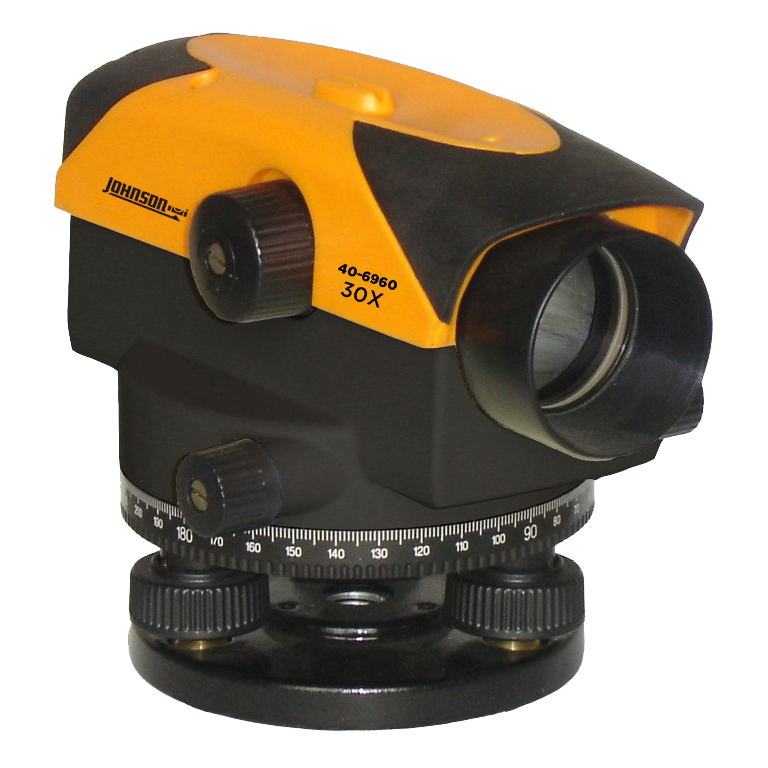

Make your next outdoor project run faster and more accurately with Johnson's automatic level featuring a 30x power lens for strong magnification. This easy-to-use level features a large, ergonomic focusing knob, prism for viewing the bubble and top-mounted quick-sight for easy viewing of your grade rod. Accuracy is never an issue with this automatic level - it's equipped with fine adjustment knobs, focusable cross-hairs, 360⁰ horizontal circle and 1:100 stadia for distance estimation, which means you can dial in your measurements exactly, every time. The automatic level is also water and dust resistant, making it safe to use on nearly any jobsite. This level also comes with a hard-shell carrying case to keep your tool clean and safe when not in use. If you're looking for a tripod and grade rod to accompany the level, consider Johnson's Model 40-6961 30x automatic level system.
+ Hover over main image to zoom
Water and dust resistant for use in most weather conditions
Wire-hung, magnetically dampened compensator
Large, easy-to-use focusing knob
360 degrees horizontal circle
Prism for bubble viewing
Top-mounted optical sight for quick reference
1:100 stadia for distance estimation
Focusable cross-hairs
5/8" - 11 threads for standard tripods
40-6960 Includes > Automatic level and hard-shell carrying case
| Warranty: | 3 Year Warranty |
|---|---|
| Magnification: | 30X |
| Leveling Accuracy: | ±1/16"/200' |
| Self-Leveling Range: | ±5° |
| Clear Objective Aperture: | 40mm |
| Field of View: | 1° 30' (2.5'/100') |
| Stadia Constant: | 100 |
| Compensator: | Working Range±15' & Setting Accuracy ±0.8" |
| Graduations: | 1° |
| Tripod Thread: | 5/8"-11 |
| IP Protection Class: | IP54 |
This automatic level's precision and durability make it perfectly suited for any number of outdoor jobs, including jobsite prep, grading, excavation, landscaping, setting foundations and footers, concrete formwork and more!
Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
Manuals
40-6960 - English
40-6960 - Spanish
40-6960 - French
Other Support
List of Authorized Non-Warranty Service Centers
Laser Level and Level Full Warranties
View all Product Manuals
Marketing Support
How to Use an Automatic Optical Level
Product Details
Make your next outdoor project run faster and more accurately with Johnson's automatic level featuring a 30x power lens for strong magnification. This easy-to-use level features a large, ergonomic focusing knob, prism for viewing the bubble and top-mounted quick-sight for easy viewing of your grade rod. Accuracy is never an issue with this automatic level - it's equipped with fine adjustment knobs, focusable cross-hairs, 360⁰ horizontal circle and 1:100 stadia for distance estimation, which means you can dial in your measurements exactly, every time. The automatic level is also water and dust resistant, making it safe to use on nearly any jobsite. This level also comes with a hard-shell carrying case to keep your tool clean and safe when not in use. If you're looking for a tripod and grade rod to accompany the level, consider Johnson's Model 40-6961 30x automatic level system.
40-6960 Includes > Automatic level and hard-shell carrying case
Specifications
| Warranty: | 3 Year Warranty |
|---|---|
| Magnification: | 30X |
| Leveling Accuracy: | ±1/16"/200' |
| Self-Leveling Range: | ±5° |
| Clear Objective Aperture: | 40mm |
| Field of View: | 1° 30' (2.5'/100') |
| Stadia Constant: | 100 |
| Compensator: | Working Range±15' & Setting Accuracy ±0.8" |
| Graduations: | 1° |
| Tripod Thread: | 5/8"-11 |
| IP Protection Class: | IP54 |
Application
This automatic level's precision and durability make it perfectly suited for any number of outdoor jobs, including jobsite prep, grading, excavation, landscaping, setting foundations and footers, concrete formwork and more!
