Bar Feeder Alignment System

MODEL #:  40-6270

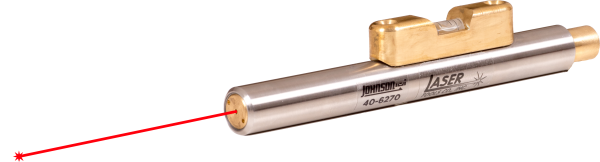

Bar feeders feed material into lathes or other machining centers. Alignment of the bar feeder to the machining center is critical to ensure accuracy in the finished product, prevent jamming, and reduce stress on the machining center. Johnson's bar feeder alignment system is accurate and easy to use. It features a magnetic spindle adapter that reduces the need for different diameter extension sleeves and works with all sizes of chucks and collets.

+ Hover over main image to zoom
  • Fast self-centering setup reduces maintenance time

  • Magnetic spindle adapter reduces need for different diameter extension sleeves

  • Works with all sizes of chucks and collets

  • Waterproof to IP67 standards

  • Two targets (one clear and one white) with 1/8" graduations

40-6270 Includes > Laser, 2 targets, 3/4" resizing sleeve for target, magnetic spindle adapter, aperture pack (1/16", 3/32", 1/8"), 2 "AAA" alkaline batteries, hard-shell carrying case

Leveling Method:

Manual (Vials)

Laser Wavelength:

635nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/100'

Working Range:

Up to 100'

Beam Divergance:

Less than 0.4 mrad

Power Supply:

2 "AAA" batteries

Battery Life:

12 Hours

Working Temperature:

23°F to 104°F

IP Protection Class:

IP67

Warranty:

1 Year Warranty

Johnson's 40-6270 is an essential alignment tool for your automated machinery - prolonging its useful life and saving you time and frustration.

Johnson Level Rapid Response Center for Repair and Service

In the U.S., email service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT

In CANADA  call 800-346-6682 x347 M-F 8AM-5PM ET

40-6270 Manual

Product Details

Bar feeders feed material into lathes or other machining centers. Alignment of the bar feeder to the machining center is critical to ensure accuracy in the finished product, prevent jamming, and reduce stress on the machining center. Johnson's bar feeder alignment system is accurate and easy to use. It features a magnetic spindle adapter that reduces the need for different diameter extension sleeves and works with all sizes of chucks and collets.



40-6270 Includes > Laser, 2 targets, 3/4" resizing sleeve for target, magnetic spindle adapter, aperture pack (1/16", 3/32", 1/8"), 2 "AAA" alkaline batteries, hard-shell carrying case

Specifications

Leveling Method:

Manual (Vials)

Laser Wavelength:

635nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

±1/8"/100'

Working Range:

Up to 100'

Beam Divergance:

Less than 0.4 mrad

Power Supply:

2 "AAA" batteries

Battery Life:

12 Hours

Working Temperature:

23°F to 104°F

IP Protection Class:

IP67

Warranty:

1 Year Warranty

Application

Johnson's 40-6270 is an essential alignment tool for your automated machinery - prolonging its useful life and saving you time and frustration.

Support

Johnson Level Rapid Response Center for Repair and Service

In the U.S., email service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT

In CANADA  call 800-346-6682 x347 M-F 8AM-5PM ET

40-6270 Manual
