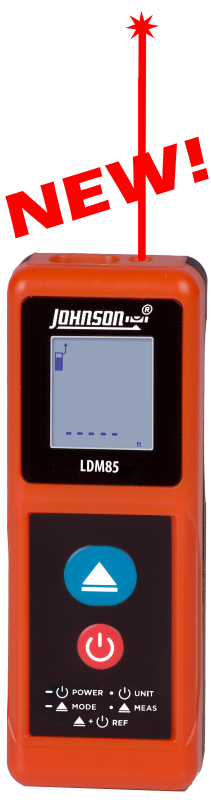

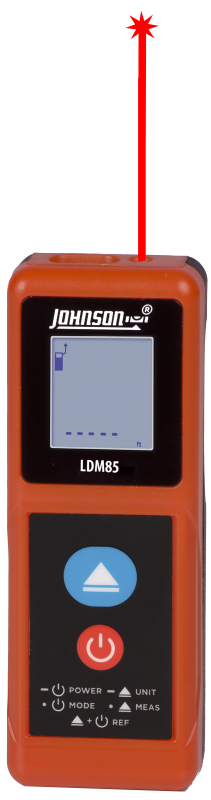

85' Laser Distance Meter

MODEL #:  LDM85

Laser distance meters accurately measure long distances in straight lines by using the reflectivity of a laser beam to calculate distance. The LDM85 is a pro-grade tool, measuring as far as 85', and is IP54 rated for use in dusty and rainy environments. It also features a backlit display, making it easy to read. This laser distance meter can measure length, area, volume and continuous measurements.

+ Hover over main image to zoom
  • Measures where a tape measure can't

  • Backlit display for easy reading

  • 4 measurement modes: Length, area, volume and continuous use

  • IP54 rating

LDM85 Includes > Laser, 2 "AAA" alkaline batteries

Laser Wavelength:

650nm±10nm

Laser Classification:

Class ll

Maximum Power Output:

≤1mW

Accuracy:

±5/64"/85'

Interior Range:

2" - 85'

Power Supply:

2 "AAA" alkaline batteries

Battery Life:

10 hours/10,000 measurements

Dimensions:

3.87" x 1.37" x 0.87"

Weight:

0.15 LBS

Working Temperature:

23°F-104°F

IP Protection Class:

54

Warranty:

2 Year Warranty

LDMs measure where a tape measure can't! The LDM85 is useful for estimating paint or flooring measurements, measuring the heights of walls and trusses, calculating warehouse space and more!

Johnson Level Rapid Response Center for Repair and Service

In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Laser Distance Meter Instruction Manuals

LDM85-English

Product Details

Laser distance meters accurately measure long distances in straight lines by using the reflectivity of a laser beam to calculate distance. The LDM85 is a pro-grade tool, measuring as far as 85', and is IP54 rated for use in dusty and rainy environments. It also features a backlit display, making it easy to read. This laser distance meter can measure length, area, volume and continuous measurements.



LDM85 Includes > Laser, 2 "AAA" alkaline batteries

Specifications

Laser Wavelength:

650nm±10nm

Laser Classification:

Class ll

Maximum Power Output:

≤1mW

Accuracy:

±5/64"/85'

Interior Range:

2" - 85'

Power Supply:

2 "AAA" alkaline batteries

Battery Life:

10 hours/10,000 measurements

Dimensions:

3.87" x 1.37" x 0.87"

Weight:

0.15 LBS

Working Temperature:

23°F-104°F

IP Protection Class:

54

Warranty:

2 Year Warranty

Application

LDMs measure where a tape measure can't! The LDM85 is useful for estimating paint or flooring measurements, measuring the heights of walls and trusses, calculating warehouse space and more!
