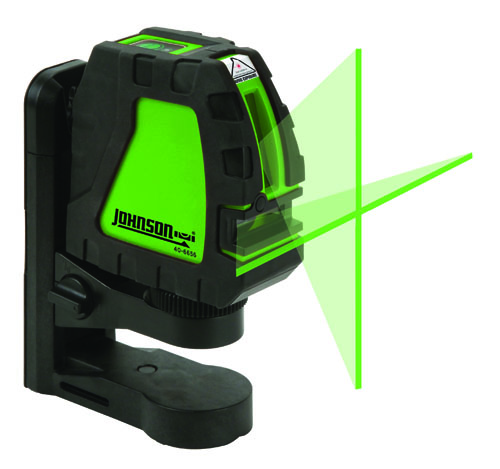

Self-Leveling Cross-Line Laser with GreenBrite Technology

MODEL #:  40-6656

Green beam is 400% more visible than red beam, Self-leveling, Projects one horizontal, vertical or cross-line beam separately or simultaneously, Visual out of level indicator, Multi-functional elevating magnetic bracket with rare earth magnets for use on walls, metallic surfaces or tripod, While on the bracket, and the laser can be raised or lowered 2-1/2" and rotate 360°.  40-6656 Includes > Laser, multi-functional elevating magnetic bracket, mounting strap, 3 "AA" alkaline batteries, and soft-sided pouch.

+ Hover over main image to zoom
  • GreenBrite® Technology - 400% more visible than red lasers

  • Multi-functional magnetic elevating bracket

  • Projects horizontal, vertical or cross-line

  • Manual mode allows unit to tilt to extreme angles

  • Visual out-of-level indicator

  • Ideal for layout work, drywall, framing and carpentry

  • Included Lithium Ion battery for all-day operation

  • IP54 dust and water resistant construction

40-6656 Includes > Laser, multi-functional elevating magnetic bracket, mounting strap, 3 "AA" alkaline batteries, and soft-sided pouch

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

520nm±10nm(Green)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±1/8"35'

Interior Range:

Up to 200'

Exterior Range:

Up to 75' with detector

Self-Leveling Range:

±3°

Power Supply:

Li-ion rechareable battery pack and charger (included)

4 "AA" alkaline batteries (not included)

Working Temperature:

14° F to 113° F

Battery Life:

11 Hours Li-ion; 6 Hours alkaline

*Battery life as tested with lithium AA/alkaline batteries, and all beams enabled

IP Protection Class:

IP54

Warranty:

3 Year Warranty

The Johnson Level 40-6656 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chari rail/trim, closet shelves/drawers, paneling/wainscounting

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Cross-Line Laser Level Instruction Manuals

Other Support

How to Use a Line Laser Level
How to Use a Self Leveling Laser Level
How to Choose a Laser Line Level for Indoor Use Only

replacement elevating magnetic bracket image
Replacement Elevating Magnetic Bracket for 40-6650, 40-6656, 40-6645,40-6657, and 40-6551 Model: 40-6392 $40.00
replacement soft-sided carrying case image
Replacement Soft-Sided Carrying Case for 40-6650 and 40-6656 Model: 40-6393 $10.80


Product Details

Green beam is 400% more visible than red beam, Self-leveling, Projects one horizontal, vertical or cross-line beam separately or simultaneously, Visual out of level indicator, Multi-functional elevating magnetic bracket with rare earth magnets for use on walls, metallic surfaces or tripod, While on the bracket, and the laser can be raised or lowered 2-1/2" and rotate 360°.  40-6656 Includes > Laser, multi-functional elevating magnetic bracket, mounting strap, 3 "AA" alkaline batteries, and soft-sided pouch.



40-6656 Includes > Laser, multi-functional elevating magnetic bracket, mounting strap, 3 "AA" alkaline batteries, and soft-sided pouch

Specifications

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

520nm±10nm(Green)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±1/8"35'

Interior Range:

Up to 200'

Exterior Range:

Up to 75' with detector

Self-Leveling Range:

±3°

Power Supply:

Li-ion rechareable battery pack and charger (included)

4 "AA" alkaline batteries (not included)

Working Temperature:

14° F to 113° F

Battery Life:

11 Hours Li-ion; 6 Hours alkaline

*Battery life as tested with lithium AA/alkaline batteries, and all beams enabled

IP Protection Class:

IP54

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6656 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chari rail/trim, closet shelves/drawers, paneling/wainscounting

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Cross-Line Laser Level Instruction Manuals

Other Support

How to Use a Line Laser Level
How to Use a Self Leveling Laser Level
How to Choose a Laser Line Level for Indoor Use Only

Replacement Parts

replacement elevating magnetic bracket image
Replacement Elevating Magnetic Bracket for 40-6650, 40-6656, 40-6645,40-6657, and 40-6551 Model: 40-6392 $40.00
replacement soft-sided carrying case image
Replacement Soft-Sided Carrying Case for 40-6650 and 40-6656 Model: 40-6393 $10.80
