Self-Leveling Cross and Line Laser Kit

MODEL #:  40-6649

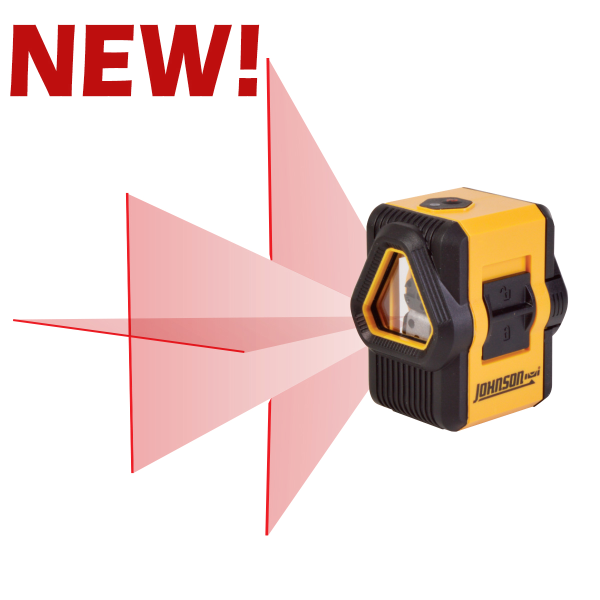

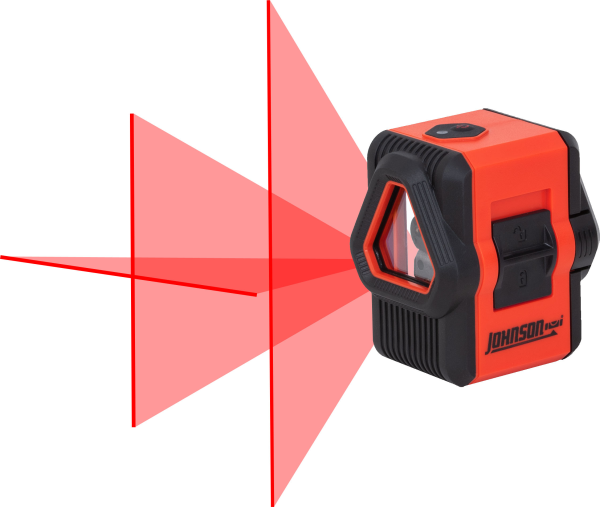

Johnson's 40-6649 self-leveling cross & line laser combines the features of a cross-line laser with an additional 90° plumb line, useful for checking square reference of beams, posts or any other object. Thanks to the laser's visual out-of-level indicator, you'll never need to worry about accuracy - if the laser can’t self-level, it will alert you by flashing the beam. With the included magnetic target, magnetic bracket, and tinted glasses, you'll have everything you need to get your job up and running!

+ Hover over main image to zoom
  • 1 Horizontal and 2 Vertical lines at 90°

  • Pendulum lock protects laser during transport

  • Visual out-of-level indicator

  • Manual mode for use at any angle

  • 1/4"-20 tripod thread for use with most common tripods

  • Ideal for flooring and alignment

40-6649 Includes > Red laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±5/32"/30'

Working Range:

Up to 50'

Self-Leveling Range:

±4°

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

10 Hours contiuous use

Dimensions:

2.5" x 3.0" x 3.6"

Weight:

8.8 oz (without batteries)

Working Temperature:

32°F to 104°F

IP Protection Class:

IP 50

Warranty:

2 Years

The Johnson Level 40-6649 is a must-have for flooring, cabinetry, drop ceiling installation, wainscoting, carpentry, tiling, electrical boxes and switches, drywall track/stud wall installation, and plumbing & squaring of posts. Its 1/4"-20 tripod thread and manual mode also let you project orthogonal lines at any angle, for stairs and other non-level applications.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6649 English Manual
