Self-Leveling 360° Laser w/Plumb Line Kit

MODEL #:  40-6611

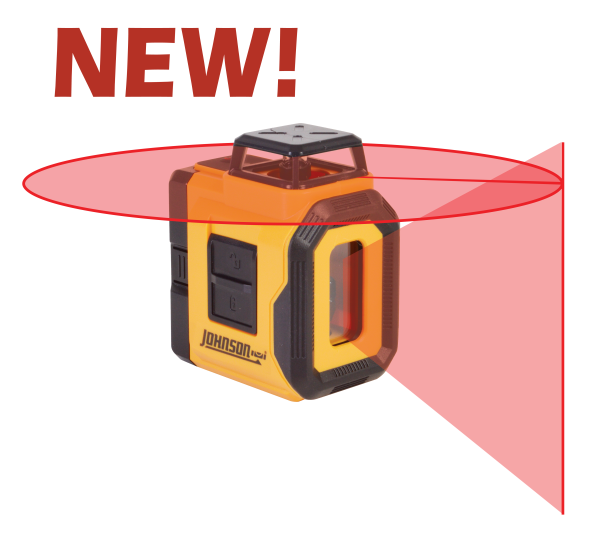

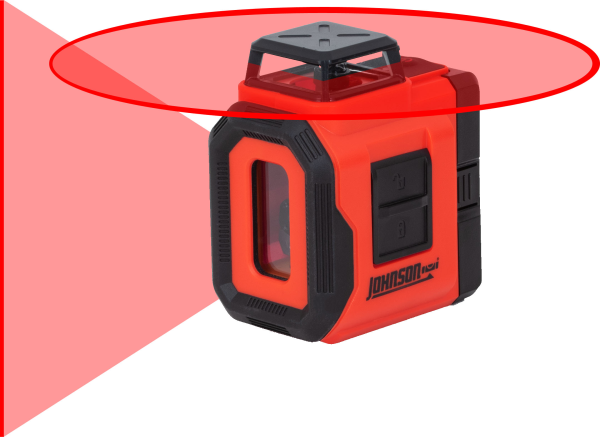

Johnson's 40-6611 Self-Leveling 360° Laser displays a full horizontal line 360 degrees around the tool, plus a plumb layout line that intersects the 360 to help you layout your jobsite quickly and accurately. With the included magnetic target, magnetic bracket, and tinted glasses, you'll have everything you need to get your job up and running!

+ Hover over main image to zoom
  • 360° horizontal laser line and 1 vertical line

  • Pendulum lock protects laser during transport

  • Visual out-of-level indicator

  • Manual mode for use at any angle

  • 1/4"-20 tripod thread for use with most common tripods

  • Ideal for carpentry, tile and more

40-6611 Includes > Laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±3/16"/30'

Working Range:

Up to 50'

Self-Leveling Range:

±4°

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

12 Hours continuous use

Dimensions:

2.3" x 3.6" x 4.2"

Weight:

10.5 oz (without batteries)

Working Temperature:

32°F to 104°F

IP Protection Class:

IP 50

Warranty:

2 Years

The Johnson Level 40-6611 is an ideal tool for any number of jobs, including layout, piping, post installation, framing, flooring and more! Its 1/4"-20 tripod thread and manual mode also let you project orthogonal lines at any angle, for stairs and other non-level applications.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6611 English Manual

Product Details

Johnson's 40-6611 Self-Leveling 360° Laser displays a full horizontal line 360 degrees around the tool, plus a plumb layout line that intersects the 360 to help you layout your jobsite quickly and accurately. With the included magnetic target, magnetic bracket, and tinted glasses, you'll have everything you need to get your job up and running!



40-6611 Includes > Laser, magnetic target, magnetic bracket, glasses, 2 "AA" alkaline batteries, hard-shell carrying case

Specifications

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±3/16"/30'

Working Range:

Up to 50'

Self-Leveling Range:

±4°

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

12 Hours continuous use

Dimensions:

2.3" x 3.6" x 4.2"

Weight:

10.5 oz (without batteries)

Working Temperature:

32°F to 104°F

IP Protection Class:

IP 50

Warranty:

2 Years

Application

The Johnson Level 40-6611 is an ideal tool for any number of jobs, including layout, piping, post installation, framing, flooring and more! Its 1/4"-20 tripod thread and manual mode also let you project orthogonal lines at any angle, for stairs and other non-level applications.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6611 English Manual
