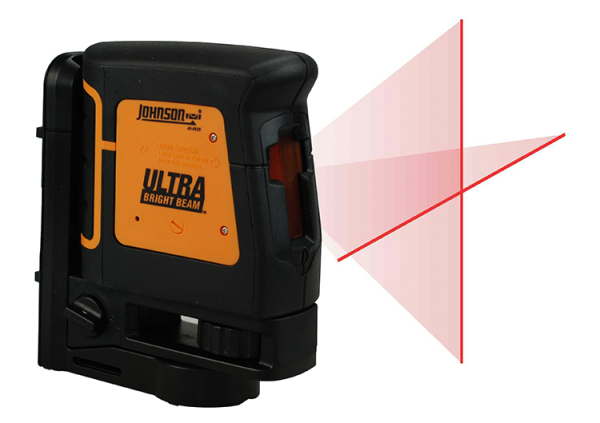

Self-Leveling Ultra-Bright Cross-Line Laser (This Product Has Been Discontinued)

MODEL #:  40-6625

High-powered bright red cross beam laser, Manual mode allows unit to tilt to extreme angles, Locking mechanism protects inner pendulum during transportation, Self-leveling with visual and audible alarms when beyond leveling range, Multi-functional magnetic base with rare earth magnets for use on walls, metallic surfaces or tripod.  40-6625 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, and soft-sided pouch.

+ Hover over main image to zoom
  • High-powered bright red cross beam laser

  • Manual mode allows unit to tilt to extreme angles

  • Locking mechanism protects inner pendulum during transportation

  • Self-leveling with visual and audible alarms when beyond leveling range

  • Multi-functional magnetic base with rare earth magnets for use on walls, metallic surfaces or tripod

40-6625 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, and soft-sided pouch.

Maximum Power Output:

<5mW

Accuracy:

+1/8"/35

Interior Range:

Up to 150'

Self-Leveling Range:

±5°

Working Temperature:

14°F-113°F

Tripod Thread:

5/8"-11, 1/4"-20

IP Protection Class:

55

Warranty:

3 Year Warranty

The Johnson Level 40-6625 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chair rail/trim, closet shelves/drawers, paneling/wainscoting.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Instruction Manuals

40-6625 Manual

Replacement Mount for Cross-Line Laser Levels
Replacement Mount for 40-6620v2, 40-6620v3 and 40-6625 Model: 40-6849 $34.66
replacement mount image
Replacement Multi-Functional Elevating Magnetic Base for 40-6625v3 Model: 40-6755 $36.00
Replacement Laser Level Soft-Sided Pouch
Replacement Soft-Sided Pouch for 40-6625 Model: 40-6807 $5.44
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620, 40-6625, 40-6680,40-6640, 40-6693, 40-6678, 40-6693, 40-6695, 40-6650, 40-6656, 40-6657, 40-6688, 40-6645 Model: 40-6854 $1.00


Product Details

High-powered bright red cross beam laser, Manual mode allows unit to tilt to extreme angles, Locking mechanism protects inner pendulum during transportation, Self-leveling with visual and audible alarms when beyond leveling range, Multi-functional magnetic base with rare earth magnets for use on walls, metallic surfaces or tripod.  40-6625 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, and soft-sided pouch.



40-6625 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, and soft-sided pouch.

Specifications

Maximum Power Output:

<5mW

Accuracy:

+1/8"/35

Interior Range:

Up to 150'

Self-Leveling Range:

±5°

Working Temperature:

14°F-113°F

Tripod Thread:

5/8"-11, 1/4"-20

IP Protection Class:

55

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6625 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chair rail/trim, closet shelves/drawers, paneling/wainscoting.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Instruction Manuals

40-6625 Manual

Replacement Parts

Replacement Mount for Cross-Line Laser Levels
Replacement Mount for 40-6620v2, 40-6620v3 and 40-6625 Model: 40-6849 $34.66
replacement mount image
Replacement Multi-Functional Elevating Magnetic Base for 40-6625v3 Model: 40-6755 $36.00
Replacement Laser Level Soft-Sided Pouch
Replacement Soft-Sided Pouch for 40-6625 Model: 40-6807 $5.44
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620, 40-6625, 40-6680,40-6640, 40-6693, 40-6678, 40-6693, 40-6695, 40-6650, 40-6656, 40-6657, 40-6688, 40-6645 Model: 40-6854 $1.00
