Machine Mountable Electronic Level w/Bluetooth®

MODEL #:  40-6250

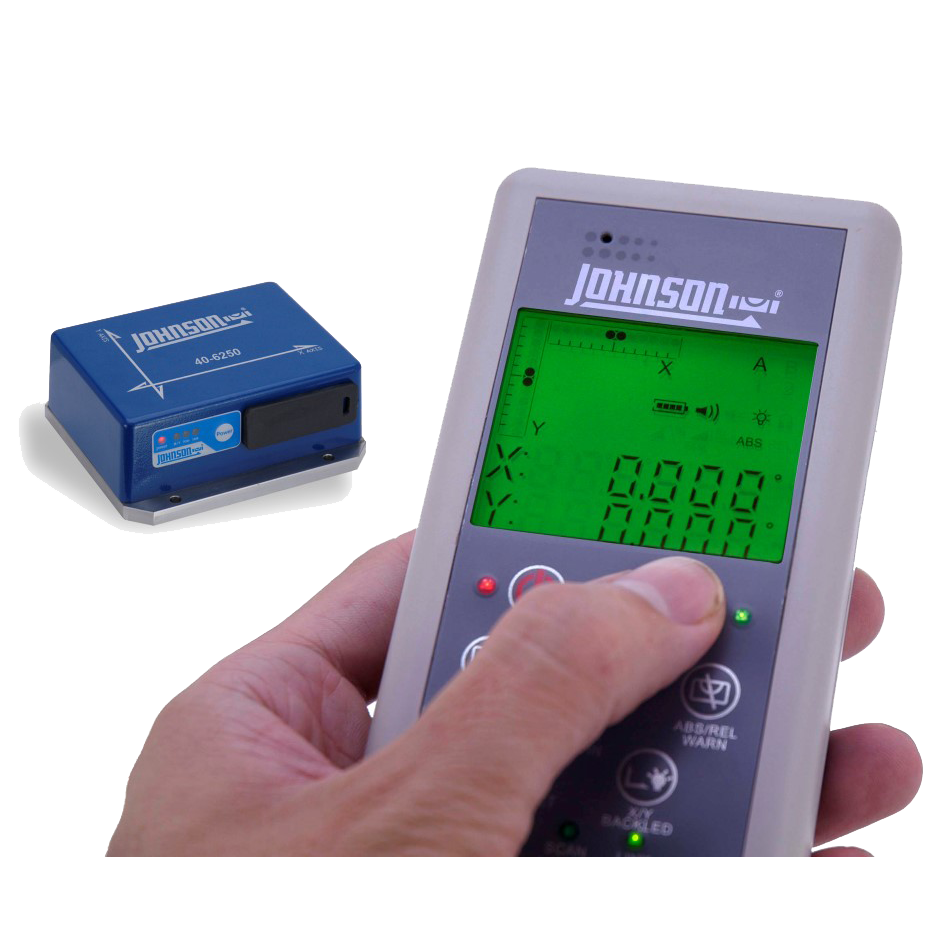

Johnson's machine mountable electronic level incorporates the latest developments in digital levels by combining highly accurate sensors with a Bluetooth hand-held display that shows slope in %, mm/m and in/ft, accurate to ±0.01°. The hand-held remote control with wireless Bluetooth technology allows the user to be up to 32 feet away from the leveling instrument, although the level also reads via cable outlet. Read level in X or Y axis at the push of a button with an operating range of ±10°. The included remote control features a large LCD screen, while the green backlit screen reads digitally and graphically. The level also comes with a carrying case to keep your tool clean and safe when not in use.

40-6250+ Hover over main image to zoom
40-6250
  • Use for new machinery installation and machinery relocation

  • Remote control features large LCD screen reads level in X or Y axis

  • Green backlit screen reads digitally and graphically

  • Reads via cable outlet or wireless Bluetooth

  • 32 ft. Bluetooth supported operating range

  • Reads slope in %, mm/m, and in/ft.

  • Operation range is -10° to +10°

  • Measures level in X or Y axis to within a maximum accuracy of"0.0" degrees

40-6250 Includes > Electronic level with bluetooth® with 3 "AA" alkaline batteries, remote control with 3 "AA" alkaline batteries, DC 5V adapter, remote cable, PC cable, and carrying case

Accuracy:

Less than 0.01°, Less than 0.04

Interior Range:

32'

Power Supply:

Alkaline

Warranty:

1 Year Warranty

Resolution:

0.002°

This electronic level with Bluetooth makes new machinery installation and machinery relocation a snap! It is ideal for leveling of any plant equipment including injection molding machines, CNC equipment, punch presses and more!

replacement remote control image
Replacement Remote Control for 40-6250 Model: 40-6754 $300.00


Product Details

Johnson's machine mountable electronic level incorporates the latest developments in digital levels by combining highly accurate sensors with a Bluetooth hand-held display that shows slope in %, mm/m and in/ft, accurate to ±0.01°. The hand-held remote control with wireless Bluetooth technology allows the user to be up to 32 feet away from the leveling instrument, although the level also reads via cable outlet. Read level in X or Y axis at the push of a button with an operating range of ±10°. The included remote control features a large LCD screen, while the green backlit screen reads digitally and graphically. The level also comes with a carrying case to keep your tool clean and safe when not in use.



40-6250 Includes > Electronic level with bluetooth® with 3 "AA" alkaline batteries, remote control with 3 "AA" alkaline batteries, DC 5V adapter, remote cable, PC cable, and carrying case

Specifications

Accuracy:

Less than 0.01°, Less than 0.04

Interior Range:

32'

Power Supply:

Alkaline

Warranty:

1 Year Warranty

Resolution:

0.002°

Application

This electronic level with Bluetooth makes new machinery installation and machinery relocation a snap! It is ideal for leveling of any plant equipment including injection molding machines, CNC equipment, punch presses and more!
