Self-Leveling 5 Beam Laser Dot

MODEL #:  40-6680

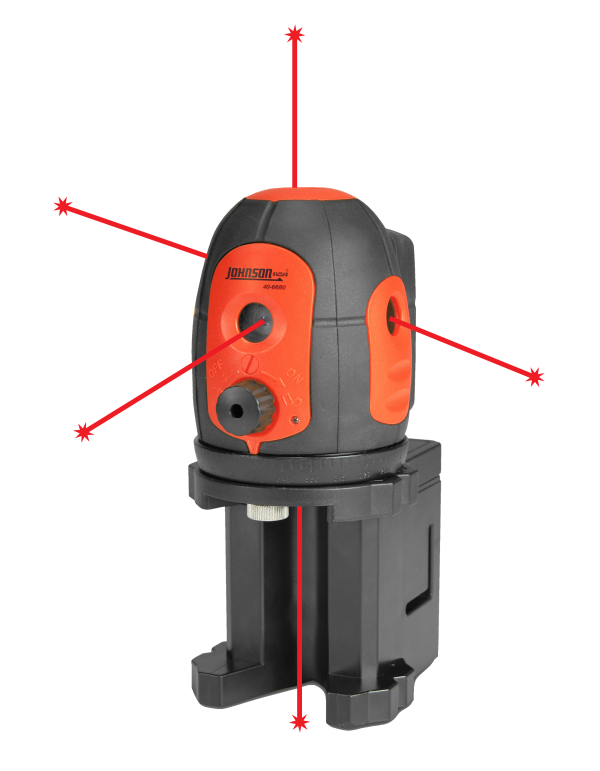

Johnson's self-leveling 5-dot laser offers the accuracy and convenience your next project requires. It simultaneously projects 5 self-leveling beams, making it a versatile tool for your jobsite, and it can be rotated 360° when attached to the included multi-functional base that mounts to metal surfaces. Accuracy is never a problem thanks to the design - just spin the laser on its base to quickly validate calibration - no special equipment needed. The laser also features a locking mechanism that protects the inner pendulum during transportation. With the included multi-functional magnetic laser mount, mounting strap, magnetic target, tinted glasses, and soft-sided carrying case, this laser comes equipped with everything you need to get your job up and running.

+ Hover over main image to zoom
  • Self-leveling, Projects five self-leveling beams simultaneously

  • Locking mechanism protects inner pendulum during transportation

  • Visual and audible alarms when beyond leveling range

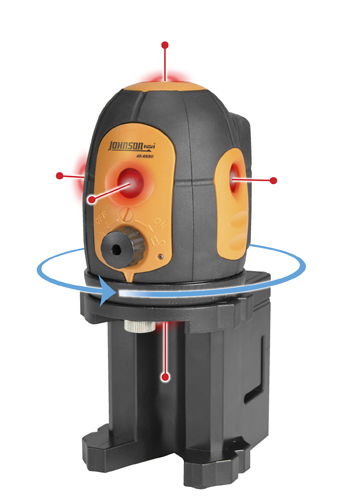

  • Laser can be rotated 360 degrees when attached to magnetic laser mount

40-6680 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, tinted glasses, and soft-sided carrying case

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

650nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

<5mW

Accuracy:

+1/8"/50

Interior Range:

Up to 200'

Self-Leveling Range:

+4.5°

Working Temperature:

14°F-113°F

Tripod Thread:

5/8"-11, 1/4"-20

IP Protection Class:

55

This level is perfectly suited for any number of jobs, including layout, piping, ramp installation, framing and more! And this level's 5 dot laser beams are ideal for transferring reference points from the floor to the ceiling. The magnetic laser mount is also useful when your project involves ferrous metals, such as steel studs or steel reinforced concrete.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Dot Laser Level Instruction Manuals

40-6680 - English
40-6680 - Spanish
40-6680 - French

Replacement Hard-Shell Carrying Case for 40-6680
Replacement Hard-Shell Carrying Case for 40-6680 Model: 40-6822 $40.72
Replacement Mount for Dot Laser Level Version 1
Replacement Multi-Functional Magnetic Base for 40-6680v1 Model: 40-6847 $21.74
Replacement Mount for Dot Laser Level Version 2
Replacement Multi-Functional Magnetic Base for 40-6680v2 Model: 40-6859 $28.32
Replacement Laser Level Soft-Shell Carrying Case
Replacement Soft-Shell Carrying Case for 40-6680 Model: 40-6367 $22.58
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620, 40-6625, 40-6680,40-6640, 40-6693, 40-6678, 40-6693, 40-6695, 40-6650, 40-6656, 40-6657, 40-6688, 40-6645 Model: 40-6854 $1.00


Product Details

Johnson's self-leveling 5-dot laser offers the accuracy and convenience your next project requires. It simultaneously projects 5 self-leveling beams, making it a versatile tool for your jobsite, and it can be rotated 360° when attached to the included multi-functional base that mounts to metal surfaces. Accuracy is never a problem thanks to the design - just spin the laser on its base to quickly validate calibration - no special equipment needed. The laser also features a locking mechanism that protects the inner pendulum during transportation. With the included multi-functional magnetic laser mount, mounting strap, magnetic target, tinted glasses, and soft-sided carrying case, this laser comes equipped with everything you need to get your job up and running.



40-6680 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, tinted glasses, and soft-sided carrying case

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

650nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

<5mW

Accuracy:

+1/8"/50

Interior Range:

Up to 200'

Self-Leveling Range:

+4.5°

Working Temperature:

14°F-113°F

Tripod Thread:

5/8"-11, 1/4"-20

IP Protection Class:

55

Application

This level is perfectly suited for any number of jobs, including layout, piping, ramp installation, framing and more! And this level's 5 dot laser beams are ideal for transferring reference points from the floor to the ceiling. The magnetic laser mount is also useful when your project involves ferrous metals, such as steel studs or steel reinforced concrete.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Dot Laser Level Instruction Manuals

40-6680 - English
40-6680 - Spanish
40-6680 - French

Replacement Parts

Replacement Hard-Shell Carrying Case for 40-6680
Replacement Hard-Shell Carrying Case for 40-6680 Model: 40-6822 $40.72
Replacement Mount for Dot Laser Level Version 1
Replacement Multi-Functional Magnetic Base for 40-6680v1 Model: 40-6847 $21.74
Replacement Mount for Dot Laser Level Version 2
Replacement Multi-Functional Magnetic Base for 40-6680v2 Model: 40-6859 $28.32
Replacement Laser Level Soft-Shell Carrying Case
Replacement Soft-Shell Carrying Case for 40-6680 Model: 40-6367 $22.58
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620, 40-6625, 40-6680,40-6640, 40-6693, 40-6678, 40-6693, 40-6695, 40-6650, 40-6656, 40-6657, 40-6688, 40-6645 Model: 40-6854 $1.00
