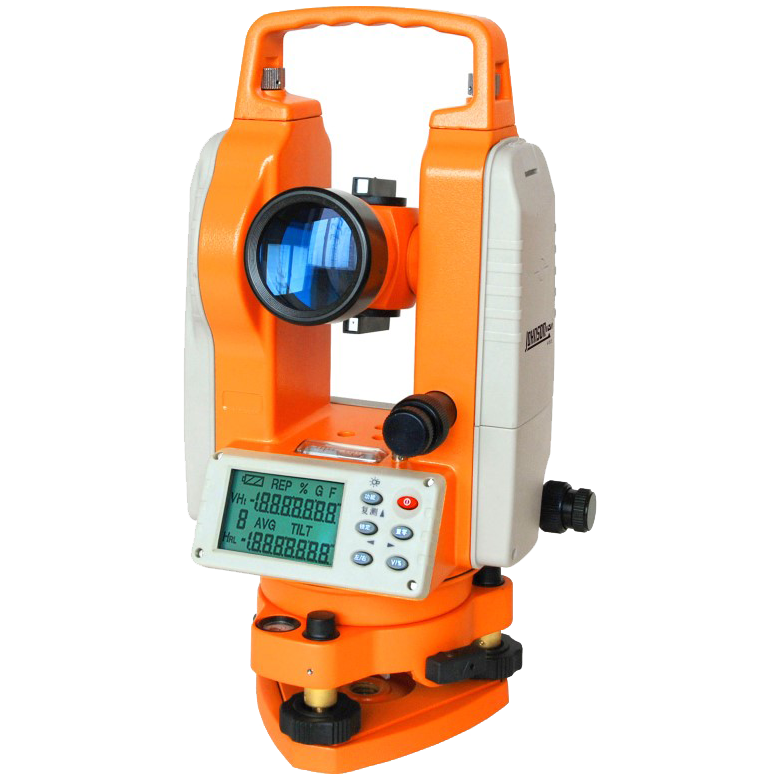

Electronic Digital Theodolite - Two Second

MODEL #:  40-6932

This electronic digital theodolite offers the simplest and most accurate solution to measuring angles and estimating distances in the horizontal and vertical planes. Its two arcsecond angular accuracy (<1/8" at 1,000') guarantees the accuracy your jobsite demands. And while it is a versatile tool offering a large selection of programmable settings, its dual six-button keypads and optical plummet keep the setup and operation quick and easy. It allows for multiple operations for various job requirements, including zero position of the vertical angle and instant conversion of vertical angles to percent of grade. This tool is also user-friendly - its dual LCD features large characters that are easy to read while the backlit LCD and telescope reticle are ideal for working in dimly lit work environments. This theodolite comes with everything you'll need to get up and running - including a NiMH rechargeable battery pack, an alkaline battery compartment, rain cover and hard-shell carrying case.

40-6932+ Hover over main image to zoom
40-6932
40-6932
  • Two second angular accuracy - accurate enough for any construction job

  • Vertical axis compensation - tilt sensor provides the highest level of accuracy and be turned on or off depending upon job requirements

  • Dual LCD with large characters - easy to see, angle readings, eliminate errors and reduce eye fatigue

  • Backlit LCD and telescope reticle - allows work in low light conditions including indoor and extended hours near dawn and dusk

  • Simple six button keypad - quick set-ups and simple operation with low operator learning curve

  • Large selection of programmable settings - provide multiple operations for various users and job requirements including zero position of vertical angle and instant conversion of vertical angles to percent of grade - convenient for slope work and when used in conjunction with pipe work

  • 90 degrees audible notification - for quick turning and set out of right angles

  • Instant conversion of vertical angles to percent of grade - convenient for slope work and when used in conjunction with pipe work

  • NiMH rechargeable battery pack and charger lower operating cost with reusable batteries

  • Alkaline battery pack standard - provides back-up and eliminated down time if the charge is lost in the middle of a job

40-6932 Includes > Two second theodolite, NiMH rechargeable battery pack, alkaline battery compartment (batteries not included), 3-7.5V battery adapter, rain cover, and hard-shell carrying case

Warranty:

3 Year Warranty

Magnification:

30X

Aperture:

1.7"

Telescope Resolution:

3"

Angle View:

1°30'

Short Distance:

5 ft

Stadia Constant:

100

Telescope Length:

6.18"

Angle Measurement:

Incremental

Minimal Reading:

1", 2", 5", optional

Angle Measurement Unit:

360°, 400gon, 6,400mil

Accuracy:

2" (40-6932), 5" (40-6935)

Tubular Vial:

30"

Circular Vial:

8'

Tilt Sensor:

Upright angle automatice compensation

Compensation Range:

±3'

Plummet:

Optical, 3X

Display Type:

Double sided LCD

Date Input & Output:

Joint (one) - RS232

Power Supply:

NiMH or 5 X "AA"

Operating Voltage:

6V DC

Battery Life:

16

Working Temperature:

-4°F to 104°F

Tripod Thread:

5/8"-11

Johnson's electronic digital theodolite is the perfect tool for measuring angles in the horizontal and vertical planes. It is a must-have for surveying and road construction work, and its instant conversion of vertical angles to percent of grade makes it useful for pipe and slope work.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Manuals

Other Johnson Laser Level Support

List of Authorized Non-Warranty Laser Level Service Centers
Laser Level and Level Full Warranties
All Leveling Product Manuals
Johnson Level Marketing Support
How to Use a Theodolite
How a Theodolite Works
Theodolite vs Transit
Replacement 3-7.5V Adapter for 40-6932, 40-6935 and 40-6936
Replacement 3-7.5V Charger for 40-6932, 40-6935 and 40-6936 Model: 40-6823 $30.00
Replacement Alkaline Battery Compartment (no batteries) for 40-6932, 40-6935 and 40-6936
Replacement Alkaline Battery Compartment (no batteries) for 40-6932, 40-6935 and 40-6936 Model: 40-6829 $4.80
Replacement Hard-Shell Carrying Case for 40-6932, 40-6935 and 40-6936
Replacement Hard-Shell Carrying Case for 40-6932, 40-6935 and 40-6936 Model: 40-6738 $96.00
Replacement NiMH Rechargeable Battery Pack for 40-6932 and 40-6935 Model: 40-6739 $58.80
Replacement Rain Cover for 40-6932, 40-6935 and 40-6936
Replacement Rain Cover for 40-6932, 40-6935 and 40-6936 Model: 40-6855 $3.90
