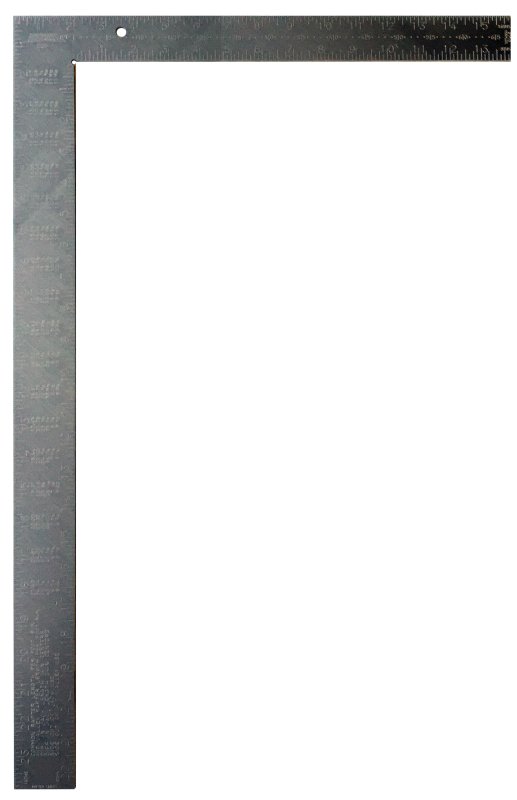

16" x 24" Aluminum Rafter Square

MODEL #:  CS5

Johnson's 16" x 24" rafter square is everything a builder needs to get the work done quickly, efficiently and accurately. It includes graduations in 1/8", 1/10", 1/12" and 1/16" as well as octagon scales, rafter tables, brace tables and board foot tables, making it useful for any number of different jobs. And those graduations and tables are permanently stamped so you'll never worry about them fading or wearing. This rafter square's aluminum construction makes it conveniently lightweight while also keeping the tool safe from rust.

+ Hover over main image to zoom
  • 24" x 2" body, 16" x 1-1/2" tongue, 1/8" thick

  • Aluminum body will not rust

  • Permanently stamped graduations and numbers

  • Graduations measure in 1/8", 1/10", 1/12", 1/16"

  • Includes octagon scales, rafter tables, brace tables and board foot tables

Warranty:

1 Year Warranty

While this square was designed for rafter work, it is a versatile tool for any carpenter or builder - it is handy for framing, layout, rafter and stair work, finding and establishing right angles, marking cut-off work and more!

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Product Details

Johnson's 16" x 24" rafter square is everything a builder needs to get the work done quickly, efficiently and accurately. It includes graduations in 1/8", 1/10", 1/12" and 1/16" as well as octagon scales, rafter tables, brace tables and board foot tables, making it useful for any number of different jobs. And those graduations and tables are permanently stamped so you'll never worry about them fading or wearing. This rafter square's aluminum construction makes it conveniently lightweight while also keeping the tool safe from rust.



Specifications

Warranty:

1 Year Warranty

Application

While this square was designed for rafter work, it is a versatile tool for any carpenter or builder - it is handy for framing, layout, rafter and stair work, finding and establishing right angles, marking cut-off work and more!
