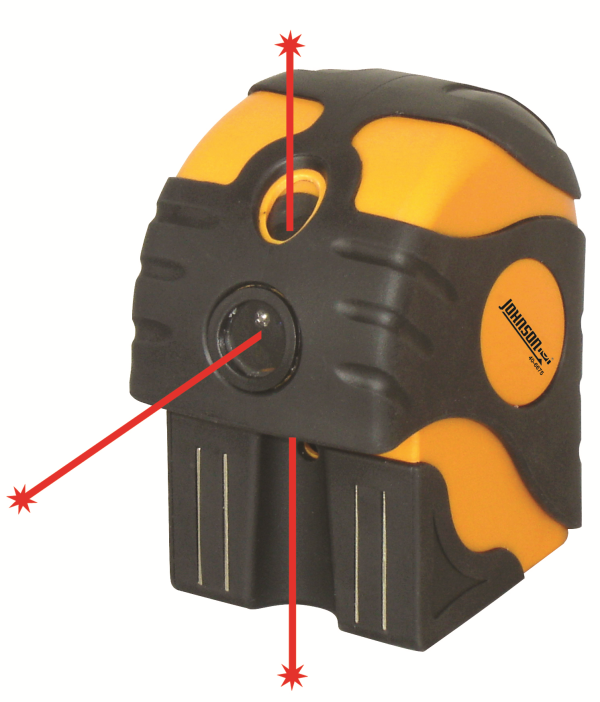

Self-Leveling 3 Beam Laser Dot (This Model Has Been Discontinued)

MODEL #:  40-6675

Self-leveling, projects three self-leveling beams simultaneously, locking mechanism protects inner pendulum during transportation, and visual and audible alarms when beyond leveling range.

+ Hover over main image to zoom
  • Self-leveling

  • Projects three self-leveling beams simultaneously

  • Locking mechanism protects inner pendulum during transportation

  • Visual and audible alarms when beyond leveling range

40-6675 Includes > Laser, magnetic target, 3 "AA" alkaline batteries, and soft-sided pouch

Accuracy:

+1/8"/50

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

<5mW

Range of Angle Measurement:

Up to 100'

Self-Leveling Range:
+3°

The Johnson Level 40-6675 can be used for the following indoor and outdoor applications; setting foundations and footings, alignment of concrete forms, layout of interior walls, room additions/partition installation, install sprinkler systems, HVAC, plumbing and pipe installation, machinery installation, electrical outlets and switches, install conduit and wiring, track and canned lighting, align brick, square up battered boards, align fences, plumb posts and pickets, align 90 degree joints and edges, level cabinets, shelving and countertops.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Dot Laser Level Instruction Manuals

40-6675 - English
40-6675 - Spanish
40-6675 - French

Product Details

Self-leveling, projects three self-leveling beams simultaneously, locking mechanism protects inner pendulum during transportation, and visual and audible alarms when beyond leveling range.



40-6675 Includes > Laser, magnetic target, 3 "AA" alkaline batteries, and soft-sided pouch

Specifications

Accuracy:

+1/8"/50

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

<5mW

Range of Angle Measurement:

Up to 100'

Self-Leveling Range:
+3°

Application

The Johnson Level 40-6675 can be used for the following indoor and outdoor applications; setting foundations and footings, alignment of concrete forms, layout of interior walls, room additions/partition installation, install sprinkler systems, HVAC, plumbing and pipe installation, machinery installation, electrical outlets and switches, install conduit and wiring, track and canned lighting, align brick, square up battered boards, align fences, plumb posts and pickets, align 90 degree joints and edges, level cabinets, shelving and countertops.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Dot Laser Level Instruction Manuals

40-6675 - English
40-6675 - Spanish
40-6675 - French
