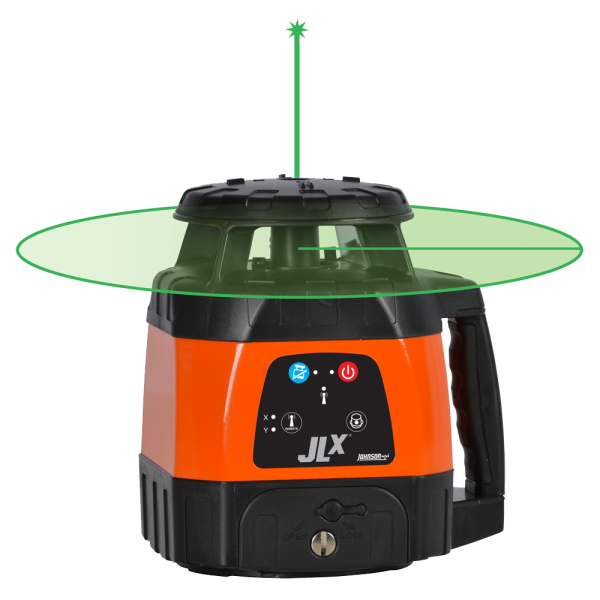

JLX® Horizontal/Vertical Tracking Rotary System with GreenBrite® Technology

MODEL #:  40-6590

Level Up® to a tracking rotary. Simplify long-distance layout work and turn a two person job into a single person job. Set reference lines with ease, work indoors or outdoors. With the 40-6590 tracking rotary, you'll get everything you need to level your jobsite, both indoors and out, including a tripod, grade rod, vertical floor mount, detector, and remote control.

  • GreenBrite® Technology - 400% more visible

  • Tracks to the detector position for simple reference line layout

  • Horizontal / Vertical Operation - track in either plane

  • Vertical mode is ideal for layout of walls or forms

  • Slope track / Slope match to 5° in both the X and Y axes

  • Bright, Class 3 green beam laser is the most visible laser for indoor work

  • Tilt indicator alerts operator if the laser is bumped or moved

  • Includes everything to grade or level your jobsite, including a full 13' grade rod

40-6590 Includes > NiMH battery and charger, 4 "C" alkaline battery compartment (batteries not included), detector with clamp and 4 "AA" alkaline batteries, remote control with 2 "AA" alkaline batteries, tinted glasses, magnetic target, vertical bracket, 13' grade rod, tripod, instruction manual, and hard-shell carrying case

Accuracy:

±3/32"/100'

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

520nm±10nm

Laser Classification:

Class III

Maximum Power Output:

≤5mW

Exterior Range:

Up to 1,500' diameter with detector

Remote Range:

Up to 200' diameter with remote

Self-Leveling Range:

±5°

Power Supply:

NIMH or 4 "C" alkaline batteries

Battery Life:

18 hours with NiMH; 16 hours with alkaline

Dimensions:

7.95" x 8.62" x 6.29"

Working Temperature:

32°F-104°F

Center Screw Thread:

5/8"-11

Scanning Modes:

0°, 30°, 60°

Rotation Speeds:

300 and 800 RPM

IP Protection Class:

54

Warranty:

3 Years

Layout work including framing, drywall track, and tilt-up. Also ideal for other interior applications such as drop ceilings, wainscoting, and more. Can be used outside for grading and excavation.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Rotary Laser Level Instruction Manuals

Replacement 6.4V Battery Adapter
Replacement 6.4V Battery Charger for 40-6529, 40-6532, 40-6534, 40-6539, 40-6543, 40-6544, 40-6551, 40-6552, 40-6590, 40-6662, 99-028k Model: 40-6838 $37.62
Replacement Alkaline Battery Compartment (no batteries) for 40-6529 and 40-6544
Replacement Alkaline Battery Compartment (no batteries) for 40-6526, 40-6529, 40-6534, 40-6544, 40-6590, and 99-028K Model: 40-6857 $7.20
Replacement NiMH Rechargeable Battery Pack for 40-6529 and 40-6544
Replacement NiMH Rechargeable Battery Pack for 40-6529, 40-6544, 40-6534, 40-6590, and 99-028K Model: 40-6383 $63.00
