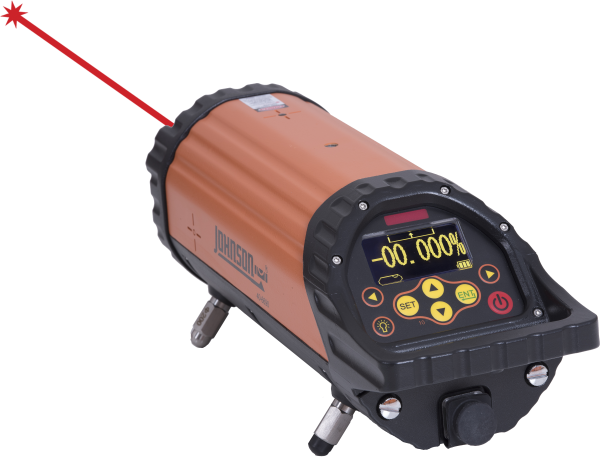

Electronic Self-Leveling Pipe Laser

MODEL #:  40-6690

Johnson's electronic self-leveling pipe laser offers construction professionals the accuracy, convenience and durability needed for a diverse range of working conditions. This pro quality tool offers an accuracy of ±1/16 in. at 100 ft. and is programmable with a desired rate of slope from -20° to +40°. Its large, illuminated OLED display is easy to see and to use. And its infrared remote control works over long distances, to keep you out of the trench. Designed for easy use, the laser dot center feature automatically centers the laser dot on the target. This pipe laser is enclosed in a solid metal nitrogen-purged housing to ensure the tool can withstand the rigors of even the roughest jobsite and will not be damaged when exposed to wet work environments (IP68). We've included everything you need to get your jobsite up and running - the laser comes with a NiMH rechargeable battery pack, alkaline battery compartment (batteries not included), remote control with 2 AA batteries, small and large targets, car adapter charger with a conversion plug, 6.4V AC battery adapter, (5) leg sets for the most common pipe sizes and a hard-shell carrying case.

+ Hover over main image to zoom
40-6690
  • Large, illuminated OLED display makes information easy to see and use

  • Easy grade input to enter by individual digit for quick set-up changes

  • Infrared remote control works over long distances providing real time data between remote and pipe laser

  • Laser dot center feature automatically centers laser dot on target

  • Battery indicator monitors battery level in rechargeable and alkaline battery packs

  • Sleep mode turns off laser beam and display

This pipe laser is the ideal tool for contractors involved with road construction, landscaping, bridge building, pipe jacking, tunnel boring or the installation of sanitary storm sewer pipelines.

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Accuracy:

±1/16"/100ft.

Remote Range:

Front 300', rear 50'

Working Range Angle:

Up to 800'

Grade Setting:

-20% to +40%

Grade Display:

0.00%

Power Supply:

NiMH rechargeable battery pack (included), 6.4V adapter and 12V car charger (included) or 4 "D" alkaline batteries (not included)

Dimensions:

5.19" x 14.96"

Weight:

13.2Ibs

Working Temperature:

-4°F - 122°F

IP Protection Class:

68 Nitrogen Purged

Warranty:

3 Year Warranty

Battery Life:

64 hours NiMH; 40 hours with alkaline batteries

The Johnson Level 40-6690 can be used for the following applications; aligning storm, sanitary or other gravity flow drainage pipes.

Replacement 10"/250mm Back Leg for 40-6690
Replacement 10"/250mm Back Leg for 40-6690 Model: 40-6971 $12.60
Replacement 10"/250mm Front Leg
Replacement 10"/250mm Front Leg for 40-6690 Model: 40-6733 $12.00
Replacement 12"/300mm Back Leg for 40-6690
Replacement 12"/300mm Back Leg for 40-6690 Model: 40-6972 $16.32
Replacement 12"/300mm Front Leg
Replacement 12"/300mm Front Leg for 40-6690 Model: 40-6734 $16.92
Replacement 12V Car Charger/Adapter with 12V Adapter for 40-6690 Model: 40-6837 $72.00
Replacement 15"/400mm Back Leg for 40-6690
Replacement 15"/400mm Back Leg for 40-6690 Model: 40-6973 $31.20
Replacement 15"/400mm Front Leg for 40-6690
Replacement 15"/400mm Front Leg for 40-6690 Model: 40-6736 $29.34
Replacement 21"/500mm Back Leg for 40-6690
Replacement 21"/500mm Back Leg for 40-6690 Model: 40-6974 $42.42
Replacement 21"/500mm Front Leg for 40-6690
Replacement 21"/500mm Front Leg for 40-6690 Model: 40-6737 $42.42
Replacement 6.4V Adapter for 40-6690
Replacement 6.4V Charger for 40-6690 Model: 40-6835 $36.00
Replacement 8"/200mm Back Leg for 40-6690
Replacement 8"/200mm Back Leg for 40-6690 Model: 40-6970 $12.00
Replacement 8"/200mm Front Leg
Replacement 8"/200mm Front Leg for 40-6690 Model: 40-6732 $7.62

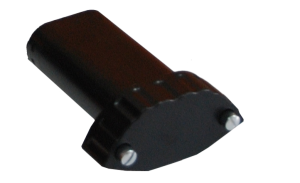

Replacement Alkaline Battery Compartment (no batteries) for 40-6690
Replacement Alkaline Battery Compartment (no batteries) for 40-6690 Model: 40-6831 $7.20
Replacement Hard-Shell Carrying Case for 40-6690
Replacement Hard-Shell Carrying Case for 40-6690 Model: 40-6741 $129.00
Replacement Large Target for 40-6690
Replacement Large Target for 40-6690 Model: 40-6841 $15.00
Replacement NiMH Rechargeable Battery Pack for 40-6690
Replacement NiMH Rechargeable Battery Pack for 40-6690 Model: 40-6833 $147.60
Replacement Remote Control for 40-6690 V1 Model: 40-6731 $90.00
Replacement Small Target for 40-6690
Replacement Small Target for 40-6690 Model: 40-6845 $9.60
Replacement Target Stand for 40-6690
Replacement Target Stand for 40-6690 Model: 40-6879 $40.00


Product Details

Johnson's electronic self-leveling pipe laser offers construction professionals the accuracy, convenience and durability needed for a diverse range of working conditions. This pro quality tool offers an accuracy of ±1/16 in. at 100 ft. and is programmable with a desired rate of slope from -20° to +40°. Its large, illuminated OLED display is easy to see and to use. And its infrared remote control works over long distances, to keep you out of the trench. Designed for easy use, the laser dot center feature automatically centers the laser dot on the target. This pipe laser is enclosed in a solid metal nitrogen-purged housing to ensure the tool can withstand the rigors of even the roughest jobsite and will not be damaged when exposed to wet work environments (IP68). We've included everything you need to get your jobsite up and running - the laser comes with a NiMH rechargeable battery pack, alkaline battery compartment (batteries not included), remote control with 2 AA batteries, small and large targets, car adapter charger with a conversion plug, 6.4V AC battery adapter, (5) leg sets for the most common pipe sizes and a hard-shell carrying case.



This pipe laser is the ideal tool for contractors involved with road construction, landscaping, bridge building, pipe jacking, tunnel boring or the installation of sanitary storm sewer pipelines.

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Accuracy:

±1/16"/100ft.

Remote Range:

Front 300', rear 50'

Working Range Angle:

Up to 800'

Grade Setting:

-20% to +40%

Grade Display:

0.00%

Power Supply:

NiMH rechargeable battery pack (included), 6.4V adapter and 12V car charger (included) or 4 "D" alkaline batteries (not included)

Dimensions:

5.19" x 14.96"

Weight:

13.2Ibs

Working Temperature:

-4°F - 122°F

IP Protection Class:

68 Nitrogen Purged

Warranty:

3 Year Warranty

Battery Life:

64 hours NiMH; 40 hours with alkaline batteries

Application

The Johnson Level 40-6690 can be used for the following applications; aligning storm, sanitary or other gravity flow drainage pipes.
