48" Digital Box Level

MODEL #:  1760-4800

Johnson's durable and accurate 48" digital box level is the perfect addition to your toolbox. Its EZ-Read™ backlit display is highly visible on both the dimmest and the brightest jobsites, while the digital measurement reading will automatically invert for convenience when you are taking overhead measurements. This level can show five units of measurement - degrees, percent, in/ft (fractional), in/ft (decimal) and mm/m - and has an accuracy of +0.1° at 0°/90°. Durability is also never a concern with this level - its rigid box frame resists deflection and twist, shock-absorbing end caps protect the level when it is dropped and the solid block vials were designed to never fog, leak or crack. It comes with a soft-sided pouch to keep your tool clean and safe when not in use.

+ Hover over main image to zoom
  • High accuracy +0.1° at 0°/90°

  • Ideal for checking ADA compliance

  • Angle inclination in 5 units of measure (degrees, percent, in/ft (fractional), in/ft (decimal), mm/m)

  • EZ-Read™ backlit display visible in all lighting conditions

  • Display inverts when working overhead

  • Rigid box frame resists deflection and twist

  • Solid block vials won't fog, leak or crack

  • Shock absorbing end caps

1760-4800 Includes > Level and soft-sided pouch

Accuracy:

±0.1° for 0°and 90°, ±0.2° for other angles

Working Range:

0 to 90°

Resolution:

0.1°, 0.1%, 1/8", .125", 1mm/m

Power Supply:

2 "AAA" alkaline batteries

Battery Life:

100 hours

Dimensions:

1 X 2.5 X 48

Weight:

2.360

Working Temperature:

14°F to 122°F

IP Protection Class:

54

Warranty:

Limited Lifetime Warranty

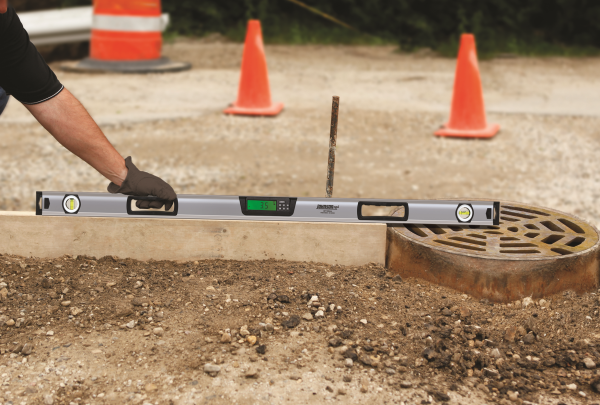

This level is perfectly suited for any number of indoor and outdoor jobs, including jobsite prep, cabinetry work, grading, excavation, landscaping, concrete formwork and more! It is also ideal for measuring slope for ADA compliance.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Digital Level Instruction Manuals

1760-4800 - English
1760-4800 - Spanish
1760-4800 - French
1760-4800 Quick Start Guide



Replacement Soft-Sided Carrying Pouch for 1876-4800, 1880-4800, 1714-4800, and 40-6048
Replacement Soft-Sided Carrying Pouch for 1876-4800, 1880-4800, 1714-4800, 1760-4800 and 5700-4800D Model: 1825-4800B $30.00


Product Details

Johnson's durable and accurate 48" digital box level is the perfect addition to your toolbox. Its EZ-Read™ backlit display is highly visible on both the dimmest and the brightest jobsites, while the digital measurement reading will automatically invert for convenience when you are taking overhead measurements. This level can show five units of measurement - degrees, percent, in/ft (fractional), in/ft (decimal) and mm/m - and has an accuracy of +0.1° at 0°/90°. Durability is also never a concern with this level - its rigid box frame resists deflection and twist, shock-absorbing end caps protect the level when it is dropped and the solid block vials were designed to never fog, leak or crack. It comes with a soft-sided pouch to keep your tool clean and safe when not in use.



1760-4800 Includes > Level and soft-sided pouch

Specifications

Accuracy:

±0.1° for 0°and 90°, ±0.2° for other angles

Working Range:

0 to 90°

Resolution:

0.1°, 0.1%, 1/8", .125", 1mm/m

Power Supply:

2 "AAA" alkaline batteries

Battery Life:

100 hours

Dimensions:

1 X 2.5 X 48

Weight:

2.360

Working Temperature:

14°F to 122°F

IP Protection Class:

54

Warranty:

Limited Lifetime Warranty

Application

This level is perfectly suited for any number of indoor and outdoor jobs, including jobsite prep, cabinetry work, grading, excavation, landscaping, concrete formwork and more! It is also ideal for measuring slope for ADA compliance.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Digital Level Instruction Manuals

1760-4800 - English
1760-4800 - Spanish
1760-4800 - French
1760-4800 Quick Start Guide



Replacement Parts

Replacement Soft-Sided Carrying Pouch for 1876-4800, 1880-4800, 1714-4800, and 40-6048
Replacement Soft-Sided Carrying Pouch for 1876-4800, 1880-4800, 1714-4800, 1760-4800 and 5700-4800D Model: 1825-4800B $30.00
