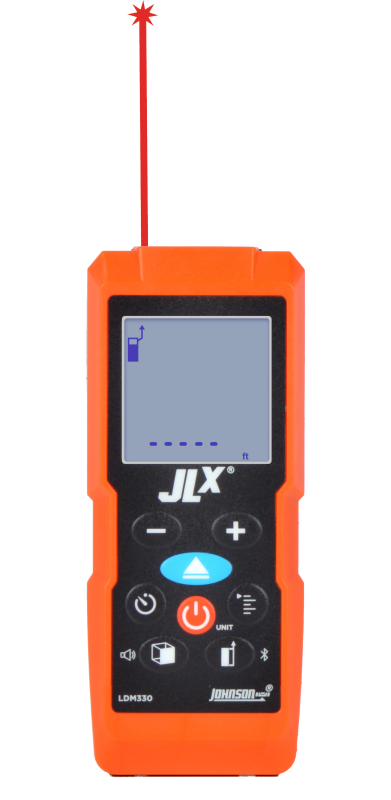

330' Laser Distance Meter w/Angle Sensor and Bluetooth®

MODEL #:  LDM330

Bluetooth® equipped - syncs with Johnson Measure-Up™ App to layout your jobsite in minutes. Integrated angle sensor: Use as a digital level or take 1-point indirect measurements. ISO tested to accuracy of 1/16"/330'. 9 measurement modes: Length (single or continuous), Area/Square, Volume/Cube, 1-Point Pythagoras, 2-Point Pythagoras, 3-Point Pythagoras, 3-Point Partial Pythagoras, Digital Level, Stakeout. IP54 Rating. Backlit display for easy reading. LDM330 Includes > Laser, 2 "AAA" alkaline batteries, wrist strap, soft-sided pouch, quick start guide.

+ Hover over main image to zoom
  • Bluetooth® equipped - syncs with Johnson Measure-Up™ App to layout your jobsite in minutes

  • Integrated angle sensor: Use as a digital level or take 1-point indirect measurements

  • ISO tested to accuracy of 1/16"/330'

  • 9 measurement modes: Length (single or continuous), Area/Square, Volume/Cube, 1-Point Pythagoras, 2-Point Pythagoras, 3-Point Pythagoras, 3-Point Partial Pythagoras, Digital Level, Stakeout

  • IP54 Rating

  • Backlit display for easy reading

LDM330 Includes > Laser, 2 "AAA" alkaline batteries, wrist strap, soft-sided pouch, quick start guide

Laser Wavelength:

650nm ±10nm (Red)

Laser Classification:

Class II

Maximum Power Output:

<1mW

Accuracy:

±1/16"/330

Working Range:

2"- 330'

Power Supply:

2 "AAA" Alkaline Batteries (Included)

IP Protection Class:

54

Battery Life:

Minimum 10 Hours/ 10,000 measurements

Working Temperature:

23°F - 104°F

Warranty:

2 Year Warranty

Measures where a tape measure can't! Ideal for estimating, drywall, paint, realtors, construction, restoration, carpentry and roofing.

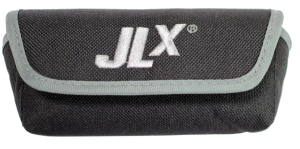

Replacement Soft-Sided Carrying Case Pouch for LDM330 Model: 40-6793 $8.16


Product Details

Bluetooth® equipped - syncs with Johnson Measure-Up™ App to layout your jobsite in minutes. Integrated angle sensor: Use as a digital level or take 1-point indirect measurements. ISO tested to accuracy of 1/16"/330'. 9 measurement modes: Length (single or continuous), Area/Square, Volume/Cube, 1-Point Pythagoras, 2-Point Pythagoras, 3-Point Pythagoras, 3-Point Partial Pythagoras, Digital Level, Stakeout. IP54 Rating. Backlit display for easy reading. LDM330 Includes > Laser, 2 "AAA" alkaline batteries, wrist strap, soft-sided pouch, quick start guide.



LDM330 Includes > Laser, 2 "AAA" alkaline batteries, wrist strap, soft-sided pouch, quick start guide

Specifications

Laser Wavelength:

650nm ±10nm (Red)

Laser Classification:

Class II

Maximum Power Output:

<1mW

Accuracy:

±1/16"/330

Working Range:

2"- 330'

Power Supply:

2 "AAA" Alkaline Batteries (Included)

IP Protection Class:

54

Battery Life:

Minimum 10 Hours/ 10,000 measurements

Working Temperature:

23°F - 104°F

Warranty:

2 Year Warranty

Application

Measures where a tape measure can't! Ideal for estimating, drywall, paint, realtors, construction, restoration, carpentry and roofing.
