Self-Leveling Cross-Line Laser with GreenBrite® Technology

MODEL #:  40-6657

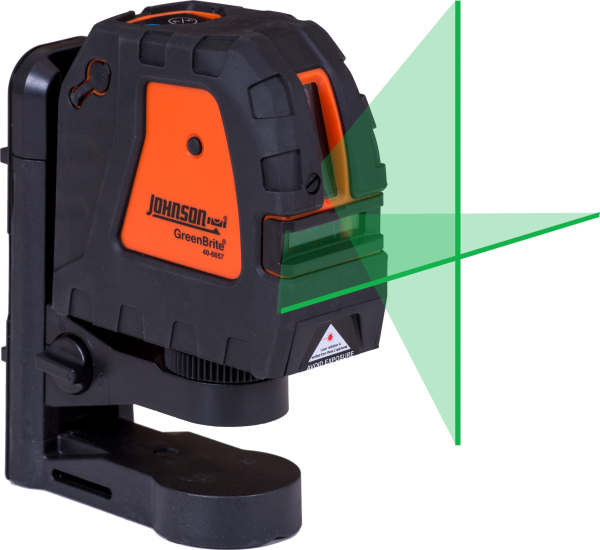

Johnson's 40-6657 Self-Leveling Cross-Line Laser comes with a magnetic bracket so it can attach to all ferrous metal surfaces for hands free use. This laser also can project one horizontal, vertical or cross-line beam simultaneously or individually. Made with GreenBrite® Technology, this laser's green beam is 400% more visible than red beams. It even adds a pulse mode for the cross lines for use with a detector (sold seperately), for use where the lines aren't visible, such as in bright light or outdoor conditions.

+ Hover over main image to zoom
  • GreenBrite® Technology - 400% more visible

  • Multi-functional magnetic elevating bracket

  • Projects horizontal, vertical or cross-line

  • Visual out-of-level indicator

  • Ideal for layout work, drywall, framing, and carpentry

  • Locking compensator protects pendulum during transport

40-6657 Includes > Laser, multi-functional elevating bracket, magnetic target, mounting strap, 4 "AA" alkaline batteries, and hard-shell carrying case

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

532nm±10nm (Green)

Laser Classification:

Class Illa

Maximum Power Output:

<5mW

Accuracy:

±1/8"/35 ft.

Interior Range:

Up to 200 ft.; Detector range up to 75 ft. (with Johnson model 40-6763 green beam laser detector, sold separately)

Self-Leveling Range:

± 3 degrees

Power Supply:

4 "AA" alkaline batteries (included); Li-ion rechargeable battery pack (not included)

Working Temperature:

14° F to 113° F

Battery Life:

11 Hours Li-ion. 6 Hours alkaline*

*Battery life as tested with Lithium AA/Alkaline AA batteries, and all beams enabled.

IP Protection Class:

54

Warranty:

3 Year Warranty

The Johnson Level 40-6657 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chair rail/trim, closet shelves/drawers, paneling/wainscoting.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Instruction Manual

replacement elevating magnetic bracket image
Replacement Elevating Magnetic Bracket for 40-6650, 40-6656, 40-6645,40-6657, and 40-6551 Model: 40-6392 $40.00
Replacement Hard-Shell Carrying Case for 40-6657 V1 Model: 40-6788 $135.30


Product Details

Johnson's 40-6657 Self-Leveling Cross-Line Laser comes with a magnetic bracket so it can attach to all ferrous metal surfaces for hands free use. This laser also can project one horizontal, vertical or cross-line beam simultaneously or individually. Made with GreenBrite® Technology, this laser's green beam is 400% more visible than red beams. It even adds a pulse mode for the cross lines for use with a detector (sold seperately), for use where the lines aren't visible, such as in bright light or outdoor conditions.



40-6657 Includes > Laser, multi-functional elevating bracket, magnetic target, mounting strap, 4 "AA" alkaline batteries, and hard-shell carrying case

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

532nm±10nm (Green)

Laser Classification:

Class Illa

Maximum Power Output:

<5mW

Accuracy:

±1/8"/35 ft.

Interior Range:

Up to 200 ft.; Detector range up to 75 ft. (with Johnson model 40-6763 green beam laser detector, sold separately)

Self-Leveling Range:

± 3 degrees

Power Supply:

4 "AA" alkaline batteries (included); Li-ion rechargeable battery pack (not included)

Working Temperature:

14° F to 113° F

Battery Life:

11 Hours Li-ion. 6 Hours alkaline*

*Battery life as tested with Lithium AA/Alkaline AA batteries, and all beams enabled.

IP Protection Class:

54

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6657 can be used for the following indoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chair rail/trim, closet shelves/drawers, paneling/wainscoting.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Instruction Manual

Replacement Parts

replacement elevating magnetic bracket image
Replacement Elevating Magnetic Bracket for 40-6650, 40-6656, 40-6645,40-6657, and 40-6551 Model: 40-6392 $40.00
Replacement Hard-Shell Carrying Case for 40-6657 V1 Model: 40-6788 $135.30
