Self-Leveling Cross-Line Laser

MODEL #:  40-6603

Johnson's 40-6603 Self-Leveling Cross-Line Laser displays plumb and level layout lines to help you layout your jobsite quickly and accurately. A 1/4"-20 tripod thread and manual mode also let you project orthogonal lines at any angle, for stairs and other non-level applications.

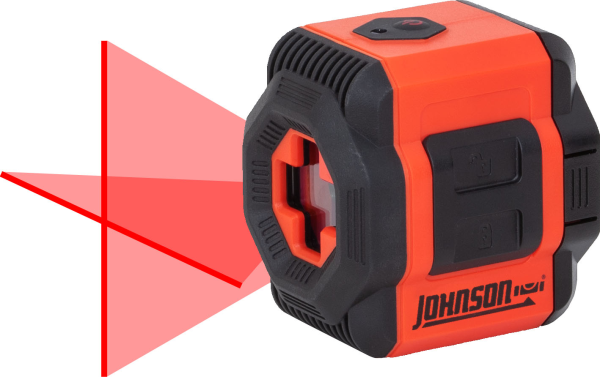

w/beam+ Hover over main image to zoom

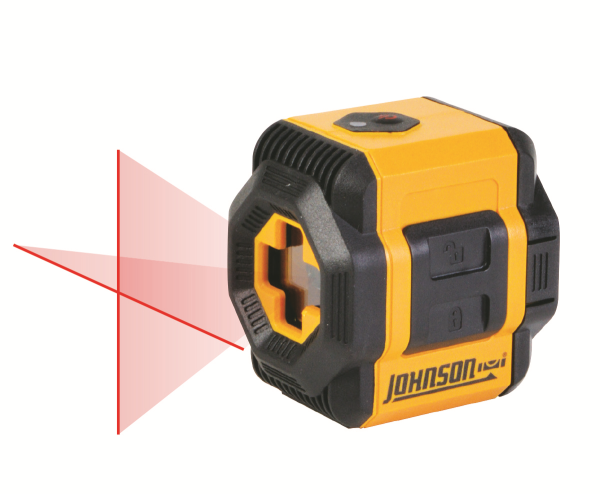

w/beam
  • Vertical and horizontal laser cross

  • Manual mode for use at any angle

  • Locking compensator protects pendulum during transport.

  • Visual out-of-level indicator

  • 1/4"-20 tripod thread for use with most common tripods

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class II

Maximum Power Output:

<1mW

Accuracy:

±3/16"/30'

Working Range:

Up to 30'

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

20 hours continuous use

Dimensions:

2.4" x 2.9" x 3.0"

Weight:

6.9 oz (without batteries)

Working Temperature:

32° F to 104° F

IP Protection Class:

IP 50

Warranty:

2 Years

The Johnson Level 40-6603 can be used for the following indoor applications; flooring, cabinetry, drop ceiling installation, wainscoting, carpentry, tiling, electrical boxes and switches, drywall track/stud wall installation, setting drainage slope.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6603 English

Product Details

Johnson's 40-6603 Self-Leveling Cross-Line Laser displays plumb and level layout lines to help you layout your jobsite quickly and accurately. A 1/4"-20 tripod thread and manual mode also let you project orthogonal lines at any angle, for stairs and other non-level applications.



Specifications

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class II

Maximum Power Output:

<1mW

Accuracy:

±3/16"/30'

Working Range:

Up to 30'

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

20 hours continuous use

Dimensions:

2.4" x 2.9" x 3.0"

Weight:

6.9 oz (without batteries)

Working Temperature:

32° F to 104° F

IP Protection Class:

IP 50

Warranty:

2 Years

Application

The Johnson Level 40-6603 can be used for the following indoor applications; flooring, cabinetry, drop ceiling installation, wainscoting, carpentry, tiling, electrical boxes and switches, drywall track/stud wall installation, setting drainage slope.
