Tiling Laser

MODEL #:  40-6624

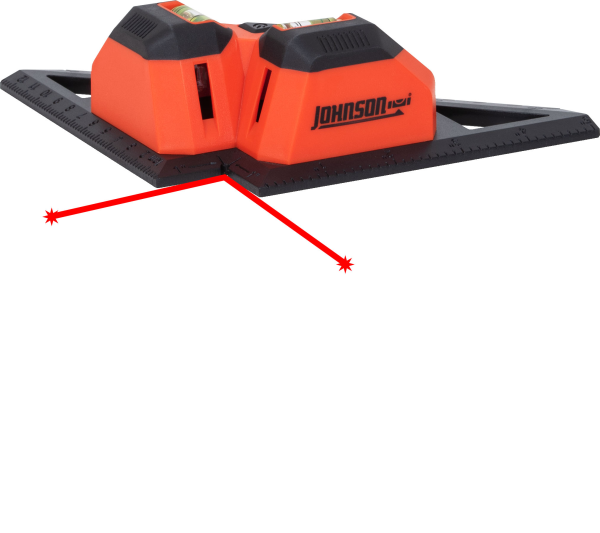

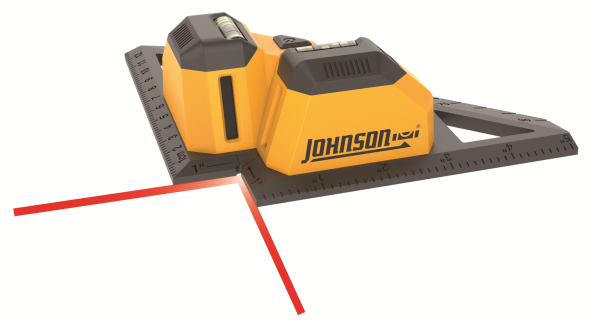

Laser beams project over wet mastic or concrete. Perpendicular lasers form a 90° reference for flooring installation. Dual leveling vials for use on vertical surfaces. Ruled ends - inch, metric, and angle.  40-6624 INCLUDES > Laser, 2 "AA" alkaline batteries.

+ Hover over main image to zoom
  • Perpendicular lasers form a 90° reference for floor installation

  • Dual leveling vials for use on vertical surfaces

  • Ruled ends – inch, metric and angle

  • Laser beams project over wet mastic or concrete

Leveling Method:
Manual (vials)
Laser Wavelength:
635nm+10nm (Red)
Laser Classification:
Class II
Maximum Power Output:
<1mW
Accuracy:
±1/4"/20'
Working Range:
Up to 23'
Power Supply:
2 "AA" alkaline batteries (included)
Battery Life:
20 hours continuous use
Working Temperature:
32° F to 104° F
IP Protection Class:
IP 50
Warranty:
2 years
Dimensions:

6.1" x 0.61" x 1.9"

Weight:

4.6 oz without the batteries

The Johnson Level 40-6624 can be used for the following indoor applications; layout of tile, stone, brick, carpet and hardwood flooring.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6624 User Manual

Product Details

Laser beams project over wet mastic or concrete. Perpendicular lasers form a 90° reference for flooring installation. Dual leveling vials for use on vertical surfaces. Ruled ends - inch, metric, and angle.  40-6624 INCLUDES > Laser, 2 "AA" alkaline batteries.



Specifications

Leveling Method:
Manual (vials)
Laser Wavelength:
635nm+10nm (Red)
Laser Classification:
Class II
Maximum Power Output:
<1mW
Accuracy:
±1/4"/20'
Working Range:
Up to 23'
Power Supply:
2 "AA" alkaline batteries (included)
Battery Life:
20 hours continuous use
Working Temperature:
32° F to 104° F
IP Protection Class:
IP 50
Warranty:
2 years
Dimensions:

6.1" x 0.61" x 1.9"

Weight:

4.6 oz without the batteries

Application

The Johnson Level 40-6624 can be used for the following indoor applications; layout of tile, stone, brick, carpet and hardwood flooring.
