Self-Leveling 3 Dot Laser

MODEL #:  40-6646

3-Dot lasers are the most common dot laser, and for good reason. In most framing applications, these lasers can replace levels and plumb bobs, and are great for plumbing walls, checking floor level, transferring reference points from floor to ceiling, and leveling posts and beams, and setting drainage slopes.

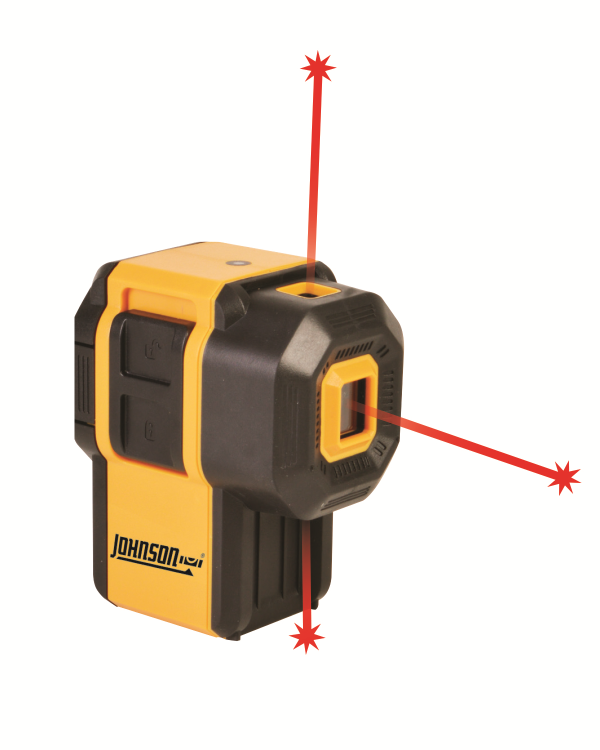

w/beam+ Hover over main image to zoom

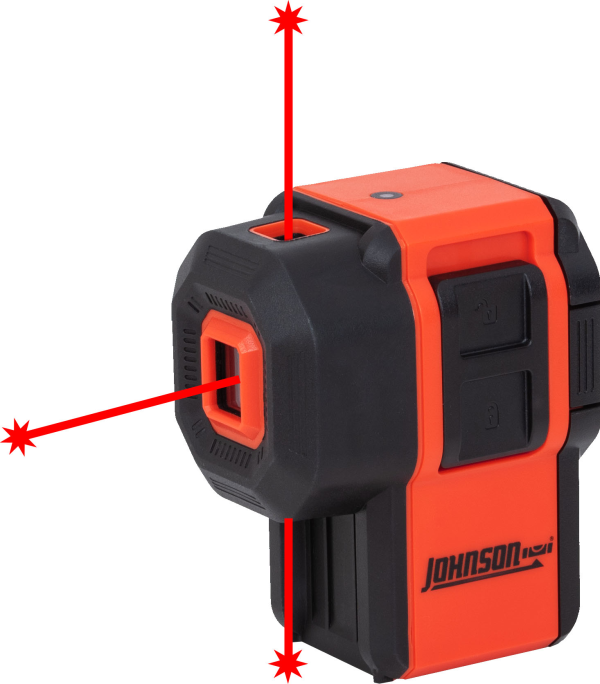

w/beam
  • Projects 2 plumb dots and 1 level dot

  • Tall profile for clearance of wood or metal drywall track

  • Visual out-of-level indicator

  • 1/4"-20 tripod thread for use with most common tripods

  • Dust resistant construction

  • Locking compensator protects pendulum during transport

40-6646 Includes > Laser and 2 "AA" alkaline batteries

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

650nm±10nm (Red)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±1/8"/30'

Working Range:

Up to 100'

Self-Leveling Range:

±5°

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

20 hours continuous use

Dimensions:

3.6" x 2.6" x 4.5"

Weight:

9.9 oz (without batteries)

Working Temperature:

32° F to 104° F

IP Protection Class:

IP 50

Warranty:

2 years

The Johnson Level 40-6646 can be used for the following indoor applications; flooring, cabinetry, drop ceiling installation, wainscoting, carpentry, tiling, electrical boxes and switches, drywall track/stud wall installation, setting drainage slope.

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6646 - English Manual

Product Details

3-Dot lasers are the most common dot laser, and for good reason. In most framing applications, these lasers can replace levels and plumb bobs, and are great for plumbing walls, checking floor level, transferring reference points from floor to ceiling, and leveling posts and beams, and setting drainage slopes.



40-6646 Includes > Laser and 2 "AA" alkaline batteries

Specifications

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

650nm±10nm (Red)

Laser Classification:

Class II

Maximum Power Output:

≤1mW

Accuracy:

±1/8"/30'

Working Range:

Up to 100'

Self-Leveling Range:

±5°

Power Supply:

2 "AA" alkaline batteries (included)

Battery Life:

20 hours continuous use

Dimensions:

3.6" x 2.6" x 4.5"

Weight:

9.9 oz (without batteries)

Working Temperature:

32° F to 104° F

IP Protection Class:

IP 50

Warranty:

2 years

Application

The Johnson Level 40-6646 can be used for the following indoor applications; flooring, cabinetry, drop ceiling installation, wainscoting, carpentry, tiling, electrical boxes and switches, drywall track/stud wall installation, setting drainage slope.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

40-6646 - English Manual
