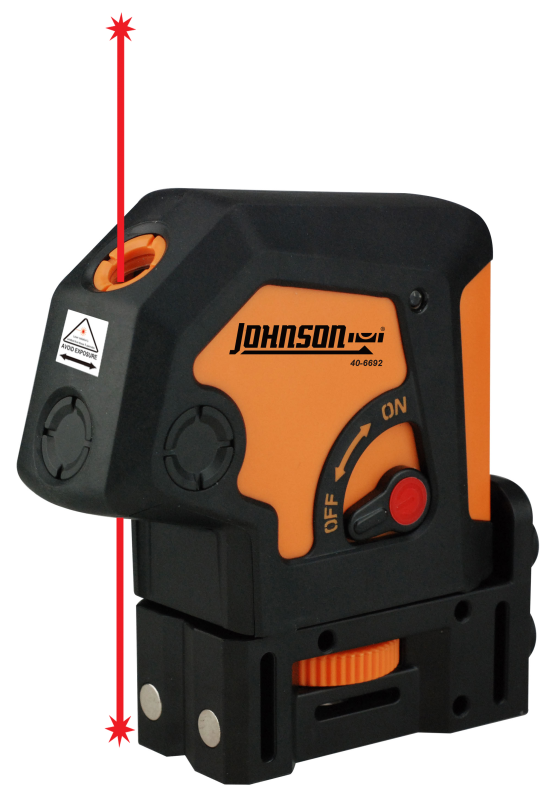

"JLT 2" Self-Leveling 2 Dot Laser

MODEL #:  40-6692

Johnson's self-leveling 2 dot laser offers the accuracy and convenience your next project requires. It simultaneously projects 3 bright Class IIIa self-leveling beams (plumb up, plumb down and level) that assure enhanced visablilty, making it a versitile tool for your jobsite. The design of the laser housing allows for fast and easy top and bottom, track installation, and the multi- functional magnetic base mounts easily to metal surfaces. The laser also features a locking mechanism that protects the inner pendulum during transportation. With the included multi- functional magnetic laser mount, mounting strap, tinted glasses, soft-sided pouch and hard- shell carring case, this laser comes equipped with everything you need to get your job up and running.

 + Hover over main image to zoom
  • Self-leveling - 2 dot laser accurate + 1/4"/100'

  • Locking pendulum assures durability in transportation

  • Multi-functional magnetic base mounts to metal surfaces

  • Laser housing design allows fast and easy top and bottom track installation

  • Bright, bold dots assure enhanced visibility

40-6692 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, instruction manual, soft-sided pouch and hard-shell carrying case

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/8"/50ft. (+/-2mm/10m)

Magnets:

Rare Earth Magnets

Interior Range:

Up to 100ft. (30m) depending upon light conditions

Measuring Range:

+/- 3 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 50 hours continuous use

Dimensions:

5.00" x 1.97" x 5.75" (127 x 51 x 146mm)

Weight:

1.43lbs. (0.65kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11, 1/4"-20

IP Protection Class:

54

Warranty:

3 Year Warranty

The Johnson Level 40-6692 can be used for the following indoor and outdoor applications; setting foundations and footings, alignment of concrete forms, layout of interior walls, room additions/partition installation, install sprinkler systems, HVAC, plumbing and pipe installation, machinery installation, electrical outlets and switches, install conduit and wiring, track and canned lighting, align brick, square up battered boards, align fences, plumb posts and pickets, align 90 degree joints and edges, level cabinets, shelving and countertops.

replacement hard-shell carrying case image
Replacement Hard-Shell Carrying Case for 40-6692, 40-6693 and 40-6695 Model: 40-6372 $42.00
replacement multi-functional magnetic base
Replacement Multi-Functional Magnetic Base for 40-6692, 40-6693, 40-6695, 40-6678 Model: 40-6307 $18.00
replacement soft-sided carrying case image
Replacement Soft-Sided Carrying Case for 40-6650 and 40-6656 Model: 40-6393 $10.80


Product Details

Johnson's self-leveling 2 dot laser offers the accuracy and convenience your next project requires. It simultaneously projects 3 bright Class IIIa self-leveling beams (plumb up, plumb down and level) that assure enhanced visablilty, making it a versitile tool for your jobsite. The design of the laser housing allows for fast and easy top and bottom, track installation, and the multi- functional magnetic base mounts easily to metal surfaces. The laser also features a locking mechanism that protects the inner pendulum during transportation. With the included multi- functional magnetic laser mount, mounting strap, tinted glasses, soft-sided pouch and hard- shell carring case, this laser comes equipped with everything you need to get your job up and running.



40-6692 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, instruction manual, soft-sided pouch and hard-shell carrying case

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/8"/50ft. (+/-2mm/10m)

Magnets:

Rare Earth Magnets

Interior Range:

Up to 100ft. (30m) depending upon light conditions

Measuring Range:

+/- 3 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 50 hours continuous use

Dimensions:

5.00" x 1.97" x 5.75" (127 x 51 x 146mm)

Weight:

1.43lbs. (0.65kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11, 1/4"-20

IP Protection Class:

54

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6692 can be used for the following indoor and outdoor applications; setting foundations and footings, alignment of concrete forms, layout of interior walls, room additions/partition installation, install sprinkler systems, HVAC, plumbing and pipe installation, machinery installation, electrical outlets and switches, install conduit and wiring, track and canned lighting, align brick, square up battered boards, align fences, plumb posts and pickets, align 90 degree joints and edges, level cabinets, shelving and countertops.
