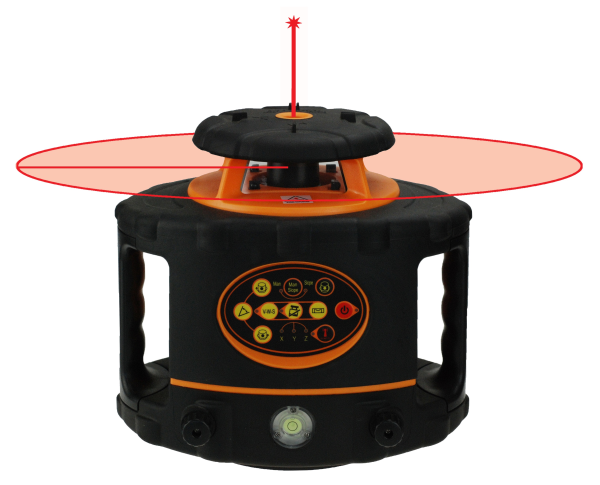

Electronic Self-Leveling Horizontal & Vertical Rotary Laser System (This product has been discontinued)

MODEL #:  40-6558

This product has been discontinued.

Designed for indoor and outdoor applications, Electronically-controlled dual slope feature, Electronic self-leveling horizontally and vertically, Laser beam modes include four adjustable line lengths and three rotational speeds, Three rotational speeds: 0, 300 and 800 RPM, Visual and audible alarms when beyond leveling range, and Height of Instrument/Tilt alarm function ensures product accuracy.

60-6558+ Hover over main image to zoom
60-6558
rotary laser level kit image
  • Designed for indoor and outdoor applications

  • Electronically-controlled dual slope feature

  • Electronic self-leveling horizontally and vertically

  • Laser beam modes include four adjustable line lengths and three rotational speeds

  • Three rotational speeds: 0, 300 and 800 RPM

  • Visual and audible alarms when beyond leveling range

  • Height of Instrument/Tilt alarm function ensures product accuracy

  • 40-6558 Includes > Laser, Li-ion rechargeable battery pack, alkaline battery compartment (batteries not included), Li-ion battery adapter, remote control with 9V battery, detector with 9V battery and clamp, magnetic target, tinted glasses, aluminum tripod, 13 ft. grade rod, instruction manual with warranty card, hard-shell carrying case

40-6558 Includes > Laser, Li-ion rechargeable battery pack, alkaline battery compartment (batteries not included), Li-ion battery charger, remote control with 9V battery, detector with 9V battery and clamp, magnetic target, tinted glasses, aluminum tripod, 13 ft. grade rod, and hard-shell carrying case

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/16"/100ft. (+/-1.5mm/30m)

Interior Range:

Up to 200ft. (60m) diameter depending on light conditions

Exterior Range:

Up to 2000ft. (600m) diameter with detector

Remote Range:

Up to 200ft. (60m) diameter with remote

Slope:

+/- 5 degrees

Auto-Leveling Range:

+/- 5 degrees

Power Supply:

Li-ion rechargeable battery pack or adapter (included); 3 "C" alkaline batteries (not included)

Battery Life:

Approximately 25 hours with Li-ion rechargeable battery pack (included); 16 hours with alkaline batteries (not included)

Dimensions:

8.62" x 6.30" x 7.95" (219 x 160 x 202mm)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11

Rotation Speeds:

0, 300 and 800 RPM

IP Protection Class:

66

Warranty:

3 Year Warranty

The Johnson Level 40-6558 can be used for the following indoor and outdoor applications; leveling, checking cut and fill, setting foundations and footings, concrete pours, septic tanks and basement excavations, acoustical ceiling and drywall, align and plumb walls, metal stud and wood framers, level deck floors, establish diagonals and footings, contour framing, drainage, terracing and retaining walls.

replacement alkaline battery compartment image
Replacement Alkaline Battery Compartment (no batteries) for 40-6557, 40-6558, 40-6559, 40-6546 and 40-6548 Model: 40-6758 $8.76
replacement hard-shell carrying case image
Replacement Hard-Shell Carrying Case for 40-6557, 40-6558 and 40-6559 Model: 40-6759 $151.68
Replacement LI-ion Adapter for 40-6582 and 40-6584
Replacement Li-ion Charger for 40-6582 40-6584, 40-6546, 40-6548, 40-6557, 40-6558, and 40-6559 Model: 40-6887 $33.00
replacement rechargeable battery pack image
Replacement LI-ion Rechargeable Battery Pack for 40-6557, 40-6558, 40-6559, 40-6546 and 40-6548 Model: 40-6757 $147.72
replacement remote for rotary laser levels image
Replacement Remote Control for 40-6557, 40-6558, 40-6559, 40-6546 and 40-6548 Model: 40-6752 $90.00


Product Details

This product has been discontinued.

Designed for indoor and outdoor applications, Electronically-controlled dual slope feature, Electronic self-leveling horizontally and vertically, Laser beam modes include four adjustable line lengths and three rotational speeds, Three rotational speeds: 0, 300 and 800 RPM, Visual and audible alarms when beyond leveling range, and Height of Instrument/Tilt alarm function ensures product accuracy.



40-6558 Includes > Laser, Li-ion rechargeable battery pack, alkaline battery compartment (batteries not included), Li-ion battery charger, remote control with 9V battery, detector with 9V battery and clamp, magnetic target, tinted glasses, aluminum tripod, 13 ft. grade rod, and hard-shell carrying case

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/16"/100ft. (+/-1.5mm/30m)

Interior Range:

Up to 200ft. (60m) diameter depending on light conditions

Exterior Range:

Up to 2000ft. (600m) diameter with detector

Remote Range:

Up to 200ft. (60m) diameter with remote

Slope:

+/- 5 degrees

Auto-Leveling Range:

+/- 5 degrees

Power Supply:

Li-ion rechargeable battery pack or adapter (included); 3 "C" alkaline batteries (not included)

Battery Life:

Approximately 25 hours with Li-ion rechargeable battery pack (included); 16 hours with alkaline batteries (not included)

Dimensions:

8.62" x 6.30" x 7.95" (219 x 160 x 202mm)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11

Rotation Speeds:

0, 300 and 800 RPM

IP Protection Class:

66

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6558 can be used for the following indoor and outdoor applications; leveling, checking cut and fill, setting foundations and footings, concrete pours, septic tanks and basement excavations, acoustical ceiling and drywall, align and plumb walls, metal stud and wood framers, level deck floors, establish diagonals and footings, contour framing, drainage, terracing and retaining walls.
