Electronic Self-Leveling Horizontal & Vertical Rotary Laser Kit with GreenBrite Technology (This Product Has Been Discontinued)

MODEL #:  40-6546

Green beam is 400% more visible than red beam, Designed for indoor and outdoor applications, Electronically-controlled dual slope feature, Electronic self-leveling horizontally and vertically, Laser beam modes include four adjustable line lengths and three rotational speeds, Three rotation al speeds: 0,  300 and 800 RPM, Visual and audible alarms when beyond leveling range, and Height of Instrument/Tilt alarm function ensures product accuracy.

40-6546+ Hover over main image to zoom
40-6546

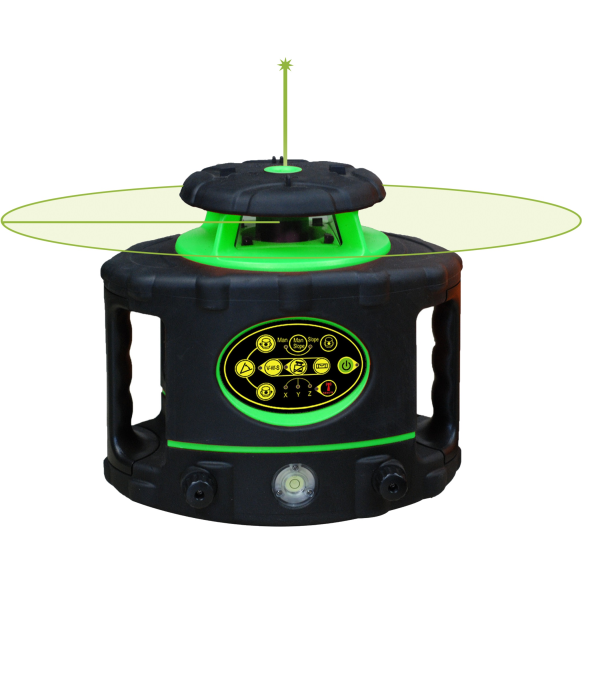

green rotary laser level kit image
  • Green beam is 400% more visible than red beam

  • Designed for indoor and outdoor applications

  • Electronically-controlled dual slope feature

  • Electronic self-leveling horizontally and vertically

  • Laser beam modes include four adjustable line lengths and three rotational speeds

  • Three rotational speeds: 0,  300 and 800 RPM

  • Visual and audible alarms when beyond leveling range

  • Height of Instrument/Tilt alarm function ensures product accuracy

  • 40-6546 Includes > Laser, Li-ion rechargeable battery pack, alkaline battery compartment (batteries not included), Li-ion battery adapter, remote control with 9V battery, wall/ceiling mount, magnetic target, tinted glasses, instruction manual with warranty card, hard-shell carrying case

40-6546 Includes > Laser, Li-ion rechargeable battery pack, alkaline battery compartment (batteries not included), Li-ion battery charger, remote control with 9V battery, wall/ceiling mount, magnetic target, tinted glasses, and hard-shell carrying case.

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

532nm+/-10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

+/-1/16"/100 ft.

Interior Range:

Up to 400 ft. diameter depending on light conditions

Exterior Range:

Up to 1400 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter with remote

Slope:

+/- 5°

Auto-Leveling Range:

+/- 5°

Power Supply:

Li-ion rechargeable battery pack or adapter (included); 3 "C" alkaline batteries (not included)

Battery Life:

Approximately 25 hours with Li-ion rechargeable battery pack (included); 16 hours with alkaline batteries (not included)

Dimensions:

7.50" x 8" x 6"

Weight:

5.47 LBS

Working Temperature:

32°F-104°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

0, 300 and 800 RPM

IP Protection Class:

66

Warranty:

3 Years

The Johnson Level 40-6546 can be used for the following indoor applications; layout of interior walls, check door and window heights, acoustical/drop ceilings, layout warehouse racking, room additions, drywall installation, partition installation, squaring floor and wall tiles, installing sprinkler systems, align and plumb walls, level floors, metal stud and wood framers, level cabinets, level shelving and countertops.

replacement alkaline battery compartment image
Replacement Alkaline Battery Compartment (no batteries) for 40-6557, 40-6558, 40-6559, 40-6546 and 40-6548 Model: 40-6758 $8.76
hard-shell carrying case replacement image
Replacement Hard-Shell Carrying Case for 40-6546 and 40-6548 Model: 40-6797 $198.30
Replacement LI-ion Adapter for 40-6582 and 40-6584
Replacement Li-ion Charger for 40-6582 40-6584, 40-6546, 40-6548, 40-6557, 40-6558, and 40-6559 Model: 40-6887 $33.00
replacement rechargeable battery pack image
Replacement LI-ion Rechargeable Battery Pack for 40-6557, 40-6558, 40-6559, 40-6546 and 40-6548 Model: 40-6757 $147.72
replacement remote for rotary laser levels image
Replacement Remote Control for 40-6557, 40-6558, 40-6559, 40-6546 and 40-6548 Model: 40-6752 $90.00


Product Details

Green beam is 400% more visible than red beam, Designed for indoor and outdoor applications, Electronically-controlled dual slope feature, Electronic self-leveling horizontally and vertically, Laser beam modes include four adjustable line lengths and three rotational speeds, Three rotation al speeds: 0,  300 and 800 RPM, Visual and audible alarms when beyond leveling range, and Height of Instrument/Tilt alarm function ensures product accuracy.



40-6546 Includes > Laser, Li-ion rechargeable battery pack, alkaline battery compartment (batteries not included), Li-ion battery charger, remote control with 9V battery, wall/ceiling mount, magnetic target, tinted glasses, and hard-shell carrying case.

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

532nm+/-10nm (Green)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

+/-1/16"/100 ft.

Interior Range:

Up to 400 ft. diameter depending on light conditions

Exterior Range:

Up to 1400 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter with remote

Slope:

+/- 5°

Auto-Leveling Range:

+/- 5°

Power Supply:

Li-ion rechargeable battery pack or adapter (included); 3 "C" alkaline batteries (not included)

Battery Life:

Approximately 25 hours with Li-ion rechargeable battery pack (included); 16 hours with alkaline batteries (not included)

Dimensions:

7.50" x 8" x 6"

Weight:

5.47 LBS

Working Temperature:

32°F-104°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

0, 300 and 800 RPM

IP Protection Class:

66

Warranty:

3 Years

Application

The Johnson Level 40-6546 can be used for the following indoor applications; layout of interior walls, check door and window heights, acoustical/drop ceilings, layout warehouse racking, room additions, drywall installation, partition installation, squaring floor and wall tiles, installing sprinkler systems, align and plumb walls, level floors, metal stud and wood framers, level cabinets, level shelving and countertops.
