TRI-Line Laser (This product has been discontinued)

MODEL #:  40-6645

This product has been discontinued.

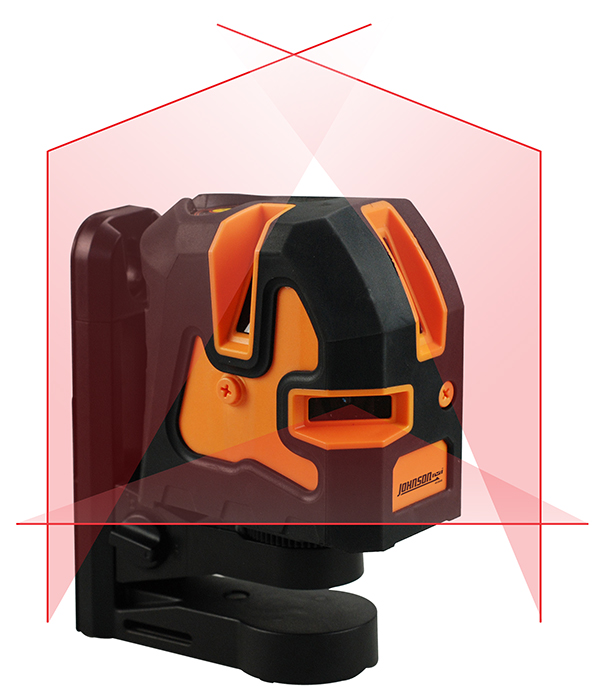

Johnson's 40-6645 Self-Leveling TRI-Line Laser has some very user friendly features such as being able to turn on one horizontal line, or one vertical line or two vertical lines that are 90° to each other. When all three beams are on the laser beams form three cross-lines. The laser beams can also be set to pulse mode for use outside with Line Generator Laser Detector. The 40-6645 also features a manual mode that allows the operator to generate uneven lines, for example,  when marking a stair railing. Included with the laser is a multi-functional elevating magnetic bracket that allows the horizontal laser beam to be raised or lowered 2 1/2" for precise laser beam placement. When the laser is mounted on the bracket the laser can hang on a wall, be attached to any metal surface or be connected to a tripod (5/8" - 11 or 1/4" - 20). The laser can also rotate on the bracket 360°. This self-leveling lasers feature a locking, magnetic dampened compensator and an out of level warning with flashing beams and audible sounds. This cross-line laser can be used for a variety of interior or exterior applications such as installing cabinets, shelving, baseboards, doors and windows, hanging pictures, setting concrete forms or installing fence posts.   Includes:  Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, and soft-sided pouch.

40-6645+ Hover over main image to zoom
40-6645
40-6645 Kit
40-6645 Magnets
  • Locking mechanism protects inner pendulum during transportation

  • Manual mode allows unit to tilt to extreme angles

  • Projects three lines or three cross-lines simultaneously or individually

  • Self-leveling with visible and audible alarms when beyond leveling range

  • Laser beam can be set to pulse for use with optional line detector (not included)

  • While on the bracket, the laser can be raised or lowered 2-1/2" and rotate 360°

40-6645 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, and soft-sided pouch

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-3/16"/50ft. (+/-3mm/10m)

Interior Range:

Up to 200ft. (60m) diameter depending upon light conditions

Exterior Range:

Up to 300ft. (90m) diameter with detector (not included)

Self-Leveling Range:

+/- 3 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approx. battery life 10 hours continuous use

Dimensions:

4.25" x 2.5" x 4.25" (108 x 64 x 108mm)

Weight:

1.3 lbs (0.6 Kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11

IP Protection Class:

54

Warranty:

3 Year Warranty

replacement elevating magnetic bracket image
Replacement Elevating Magnetic Bracket for 40-6650, 40-6656, 40-6645,40-6657, and 40-6551 Model: 40-6392 $40.00
replacement soft-sided case image
Replacement Soft-Sided Pouch for 40-6645 Model: 40-6753 $16.14


Product Details

This product has been discontinued.

Johnson's 40-6645 Self-Leveling TRI-Line Laser has some very user friendly features such as being able to turn on one horizontal line, or one vertical line or two vertical lines that are 90° to each other. When all three beams are on the laser beams form three cross-lines. The laser beams can also be set to pulse mode for use outside with Line Generator Laser Detector. The 40-6645 also features a manual mode that allows the operator to generate uneven lines, for example,  when marking a stair railing. Included with the laser is a multi-functional elevating magnetic bracket that allows the horizontal laser beam to be raised or lowered 2 1/2" for precise laser beam placement. When the laser is mounted on the bracket the laser can hang on a wall, be attached to any metal surface or be connected to a tripod (5/8" - 11 or 1/4" - 20). The laser can also rotate on the bracket 360°. This self-leveling lasers feature a locking, magnetic dampened compensator and an out of level warning with flashing beams and audible sounds. This cross-line laser can be used for a variety of interior or exterior applications such as installing cabinets, shelving, baseboards, doors and windows, hanging pictures, setting concrete forms or installing fence posts.   Includes:  Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, and soft-sided pouch.



40-6645 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, and soft-sided pouch

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-3/16"/50ft. (+/-3mm/10m)

Interior Range:

Up to 200ft. (60m) diameter depending upon light conditions

Exterior Range:

Up to 300ft. (90m) diameter with detector (not included)

Self-Leveling Range:

+/- 3 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approx. battery life 10 hours continuous use

Dimensions:

4.25" x 2.5" x 4.25" (108 x 64 x 108mm)

Weight:

1.3 lbs (0.6 Kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11

IP Protection Class:

54

Warranty:

3 Year Warranty
