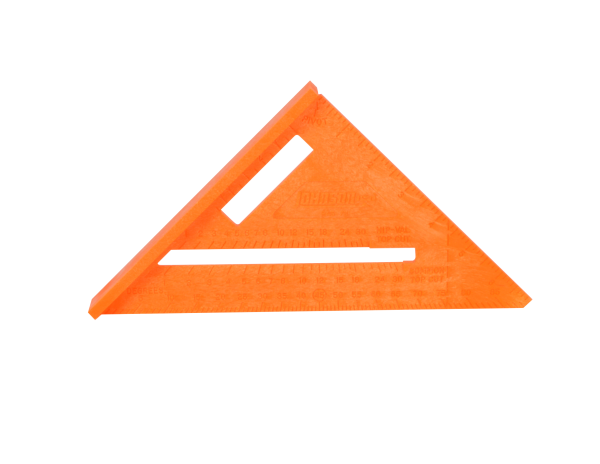

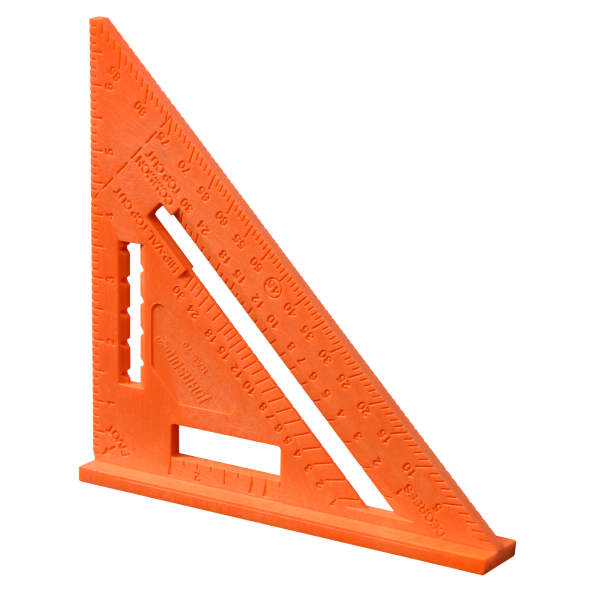

7" Structo-Cast® Rafter Square w/out Manual

MODEL #:  RAS-70B-ORAN

As a saw guide, stair layout tool or rafter tool, Johnson's 7" rafter square will help you get the job done accurately and easily. It features Johnson's unique Structo-Cast® molded frame that is both lightweight and durable, as well as permanent molded graduations for making quick and easy measurements. This rafter square comes with handy markers that measure 2x4 board dimensions of 1-1/2", 3" and 3-1/2". And you'll always find this square quickly in your toolbox thanks to its fluorescent, easy-to-see color.

RAS-70B-ORAN+ Hover over main image to zoom
RAS-70B-ORAN
  • Durable, light weight Structo-Cast® high-impact molded frame

  • Permanent molded graduations for quick and easy measurements

  • 2x4 board dimension markers for measuring 1-1/2", 3" and 3-1/2"

  • Thick edge is useful as a saw guide

  • Fluorescent easy-to see color

Warranty:

1 Year Warranty

This 7" rafter square is a versatile tool for builders and contractors. Its thick edge is useful as a saw guide - it can be used directly with the saw against the square for cross cuts or angled cuts using the etched protractor scale. The rafter square also simplifies stair layout - its integrated distance and angle scales let you quickly and accurately mark your cut lines on your stringers.

Johnson Level Rapid Response Center for Repair and Service

In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.

In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.



Manual

RAS-1 English Manual

Other Resources

How to Read a Rafter Angle Square
How to Use a Rafter Angle Square
Using a Rafter Angle Square for Roof Pitch
Using a Rafter Angle Square for Rafters
How to Cut Rafters with a Rafter Angle Square

Product Details

As a saw guide, stair layout tool or rafter tool, Johnson's 7" rafter square will help you get the job done accurately and easily. It features Johnson's unique Structo-Cast® molded frame that is both lightweight and durable, as well as permanent molded graduations for making quick and easy measurements. This rafter square comes with handy markers that measure 2x4 board dimensions of 1-1/2", 3" and 3-1/2". And you'll always find this square quickly in your toolbox thanks to its fluorescent, easy-to-see color.



Specifications

Warranty:

1 Year Warranty

Application

This 7" rafter square is a versatile tool for builders and contractors. Its thick edge is useful as a saw guide - it can be used directly with the saw against the square for cross cuts or angled cuts using the etched protractor scale. The rafter square also simplifies stair layout - its integrated distance and angle scales let you quickly and accurately mark your cut lines on your stringers.
