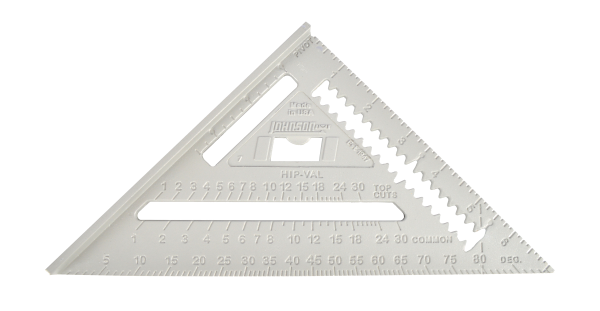

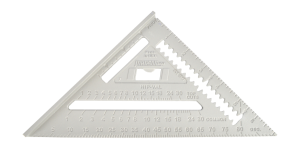

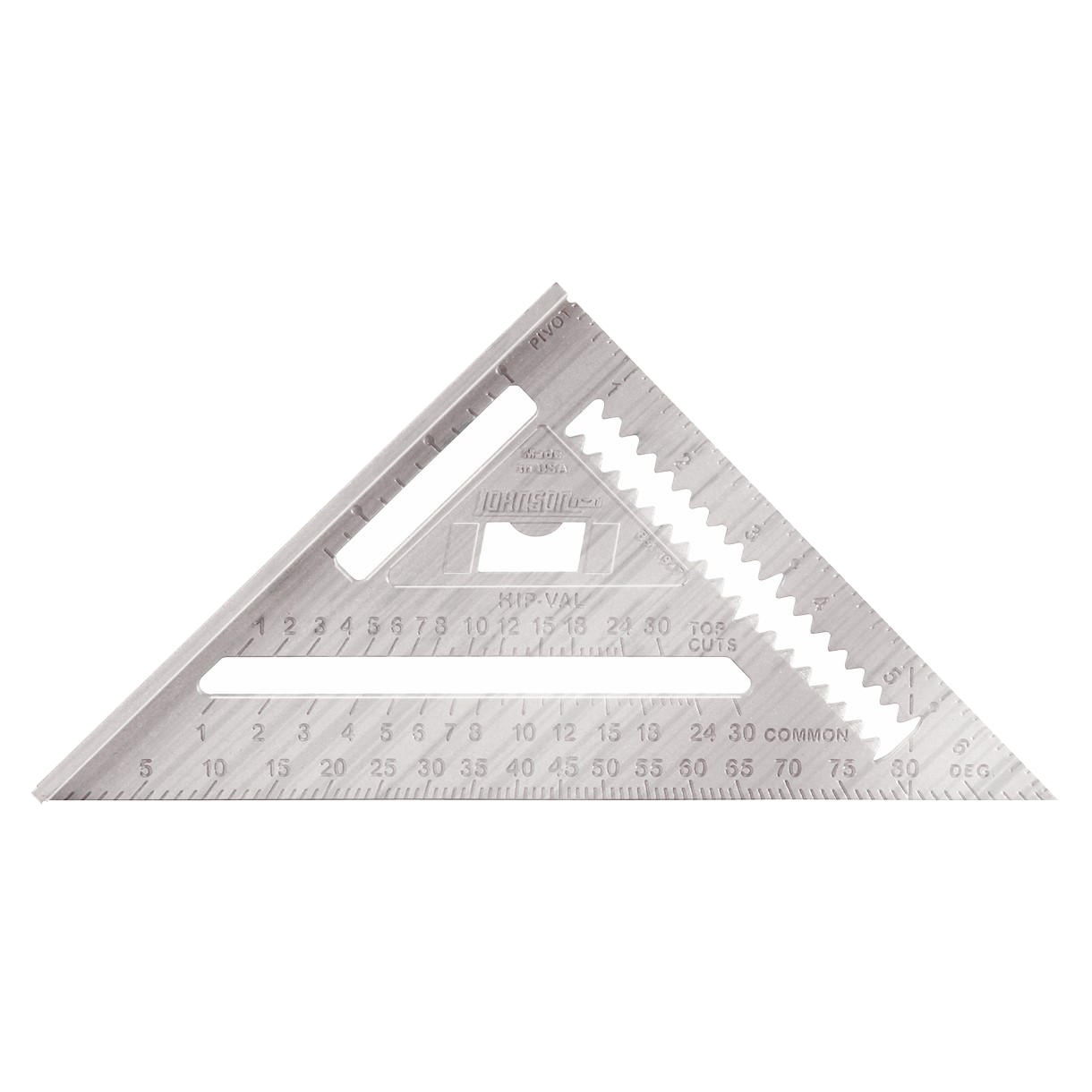

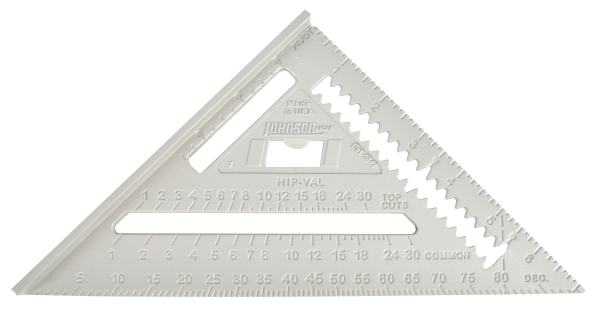

7" Johnny Square Aluminum Rafter Angle Square w/Manual

MODEL #:  RAS-1

This Johnny Square® is proudly Made in the USA and is the first rafter square on the market to use a continuous scribing notch - meaning you can mark and rip lumber to any size you want. This rafter square is solid aluminum die-cast and CNC-machined right here in Wisconsin. And, staying true to its Wisconsin roots, Johnson even included an integrated bottle opener in the center of the square. This square uses deep cast-in graduations that will never peel off, wear off, fade or smudge and also comes with a low-glare, protective-powder coated finish. It also features handy markers that measure 2x4 board dimensions of 1-1/2", 3" and 3-1/2".

+ Hover over main image to zoom
  • Solid aluminum body with CNC machined edges for greater accuracy and durability

  • Permanent graduations and numbers are easy-to-read

  • Thick edge is useful as a saw guide

  • Continuous scribing notches - ideal for ripping at 3-1/2" and 5-1/2"

  • 2x4 board dimension markers for measuring 1-1/2", 3" and 3-1/2"

  • Low-glare, protective powder coated finish

  • Complete instruction manual included with rafter tables

  • Integrated bottle opener in the center of the square

Warranty:

Limited Lifetime Warranty

This 7" Johnny Square® is a versatile tool for builders and contractors. Its thick edge is useful as a saw guide - it can be used directly with the saw against the square for cross cuts or angled cuts using the etched protractor scale. It can be used indirectly as well, using the scribing notches to create a saw cut line for rip cuts. The Johnny Square® also simplifies stair layout - its integrated distance and angle scales let you quickly and accurately mark your cut lines on your stringers. And, of course, this rafter square has scales for cutting hip, valley and jack rafters.

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.

Manual

RAS-1 - English

Other Support

How to Read a Rafter Angle Square
How to Use a Rafter Angle Square
Using a Rafter Angle Square for Roof Pitch
Using a Rafter Angle Square for Rafters
How to Cut Rafters with a Rafter Angle Square

Product Details

This Johnny Square® is proudly Made in the USA and is the first rafter square on the market to use a continuous scribing notch - meaning you can mark and rip lumber to any size you want. This rafter square is solid aluminum die-cast and CNC-machined right here in Wisconsin. And, staying true to its Wisconsin roots, Johnson even included an integrated bottle opener in the center of the square. This square uses deep cast-in graduations that will never peel off, wear off, fade or smudge and also comes with a low-glare, protective-powder coated finish. It also features handy markers that measure 2x4 board dimensions of 1-1/2", 3" and 3-1/2".



Specifications

Warranty:

Limited Lifetime Warranty

Application

This 7" Johnny Square® is a versatile tool for builders and contractors. Its thick edge is useful as a saw guide - it can be used directly with the saw against the square for cross cuts or angled cuts using the etched protractor scale. It can be used indirectly as well, using the scribing notches to create a saw cut line for rip cuts. The Johnny Square® also simplifies stair layout - its integrated distance and angle scales let you quickly and accurately mark your cut lines on your stringers. And, of course, this rafter square has scales for cutting hip, valley and jack rafters.

Support

Johnson Level Rapid Response Center for Repair and Service

In the U.S., call 888-953-8357 from 8AM-5PM CT.  In Canada, call 514-695-7221 8AM-5PM ET.
