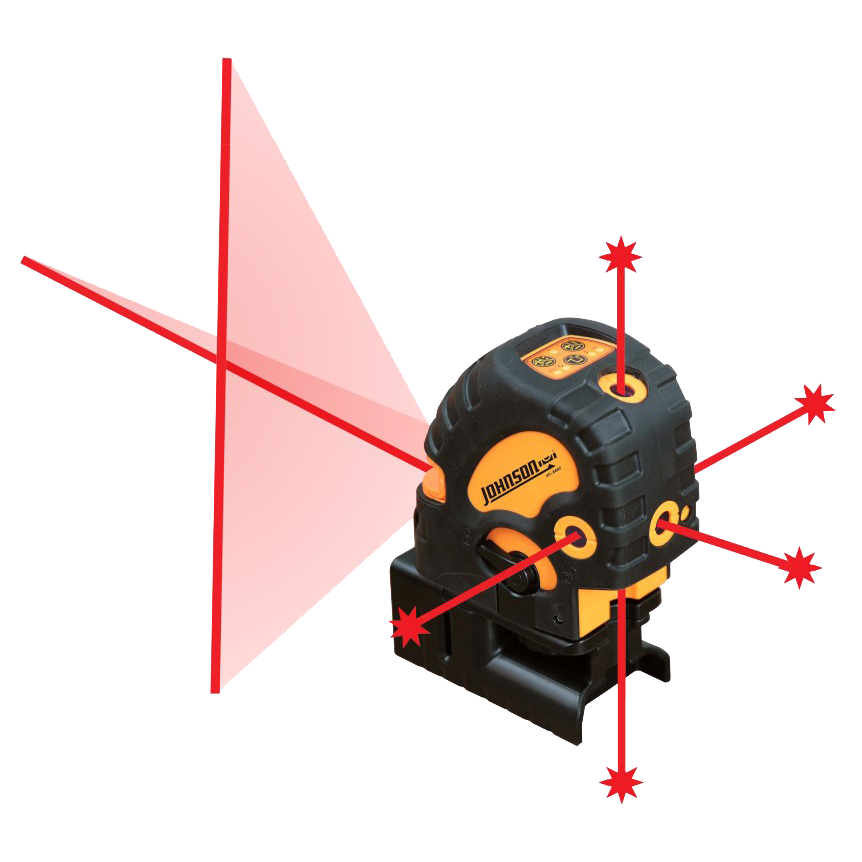

Self-Leveling Combination Cross-Line and 5 Beam Laser Dot (This Model Has Been Discontinued)

MODEL #:  40-6685

Locking mechanism protects inner pendulum during transportation, Manual mode allows unit to tilt to extreme angles, Projects five self-leveling beams and two cross-lines simultaneously, Able to control beams and cross-lines separately, Self-leveling with visible and audible alarms when beyond leveling range, Laser beam can be set to pulse for use with optional line detector (not included), 40-6685 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, tinted glasses, instruction manual with warranty card, hard-shell carrying case

40-6685+ Hover over main image to zoom
40-6685
40-6685
  • Locking mechanism protects inner pendulum during transportation

  • Self-leveling with visible and audible alarms when beyond leveling range

  • Projects five self-leveling beams and two cross-lines simultaneously. Able to contol dots and cross-line separately.

  • Manual mode allows unit to tilt to extreme angles

  • Laser beam can be set to pulse for use with optional line detector

40-6685 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, tinted glasses, instruction manual with warranty card and a hard-shell carrying case

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

+/-1/8"/50ft. (+/-1m/5m)

Interior Range:

Up to 150ft. (45m) for lines depending upon light conditions Up to 200ft. (60m) for dots depending upon light conditions

Exterior Range:

Up to 300ft. (90m) diameter with detector

Self-Leveling Range:

+/- 4 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 20 hours continuous use

Dimensions:

4.803" x 2.835" x 4.567 (122x72x116mm)

Weight:

1.869Ibs (0.84kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11, 1/4"-20

IP Protection Class:

54

Warranty:

3 Year Warranty

The Johnson Level 40-6685 can be used for the following indoor applications; drywall installation, sprinkler installation, HVAC, ceiling joist and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chair rain/trim, closet shelves/doors, paneling/wainscouting, setting foundations and footings, alignment of concrete forms, layout of interior walls, room additions/partition installation, plumbing and pipe installation, machinery installation, track and canned lighting, align brick, square up battered boards, align fences, plumb posts and pickets, align 90 degree joints and edges, level cabinets, shelving and countertops, check door and window heights, acoustical/drop ceilings, layout warehouse racking, squaring floor and wall tiles, align and plumb walls, level floors, metal stud and wood framers, leveling, checking cut and fill, concrete pours, septic tanks and basement excavations, level deck floors, establish diagonals and footings, contour framing, drainage, terracing and retaining walls.

Replacement Hard-Shell Carrying Case for 40-6685 and 40-6688 Model: 40-6885 $39.00
Replacement Mulit-Functional Magnetic Base for 40-6683, 40-6685 and 40-6687
Replacement Mulit-Functional Magnetic Base for 40-6683, 40-6685, 40-6687, 40-6688 Model: 40-6884 $31.20
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620
Replacement Strap for 40-6636, 40-6637, 40-6638, 40-6639, 40-6683, 40-6685, 40-6687, 40-6620, 40-6625, 40-6680,40-6640, 40-6693, 40-6678, 40-6693, 40-6695, 40-6650, 40-6656, 40-6657, 40-6688, 40-6645 Model: 40-6854 $1.00


Product Details

Locking mechanism protects inner pendulum during transportation, Manual mode allows unit to tilt to extreme angles, Projects five self-leveling beams and two cross-lines simultaneously, Able to control beams and cross-lines separately, Self-leveling with visible and audible alarms when beyond leveling range, Laser beam can be set to pulse for use with optional line detector (not included), 40-6685 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, tinted glasses, instruction manual with warranty card, hard-shell carrying case



40-6685 Includes > Laser, multi-functional magnetic base, 3 "AA" alkaline batteries, mounting strap, magnetic target, tinted glasses, instruction manual with warranty card and a hard-shell carrying case

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

+/-1/8"/50ft. (+/-1m/5m)

Interior Range:

Up to 150ft. (45m) for lines depending upon light conditions Up to 200ft. (60m) for dots depending upon light conditions

Exterior Range:

Up to 300ft. (90m) diameter with detector

Self-Leveling Range:

+/- 4 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 20 hours continuous use

Dimensions:

4.803" x 2.835" x 4.567 (122x72x116mm)

Weight:

1.869Ibs (0.84kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11, 1/4"-20

IP Protection Class:

54

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6685 can be used for the following indoor applications; drywall installation, sprinkler installation, HVAC, ceiling joist and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chair rain/trim, closet shelves/doors, paneling/wainscouting, setting foundations and footings, alignment of concrete forms, layout of interior walls, room additions/partition installation, plumbing and pipe installation, machinery installation, track and canned lighting, align brick, square up battered boards, align fences, plumb posts and pickets, align 90 degree joints and edges, level cabinets, shelving and countertops, check door and window heights, acoustical/drop ceilings, layout warehouse racking, squaring floor and wall tiles, align and plumb walls, level floors, metal stud and wood framers, leveling, checking cut and fill, concrete pours, septic tanks and basement excavations, level deck floors, establish diagonals and footings, contour framing, drainage, terracing and retaining walls.
