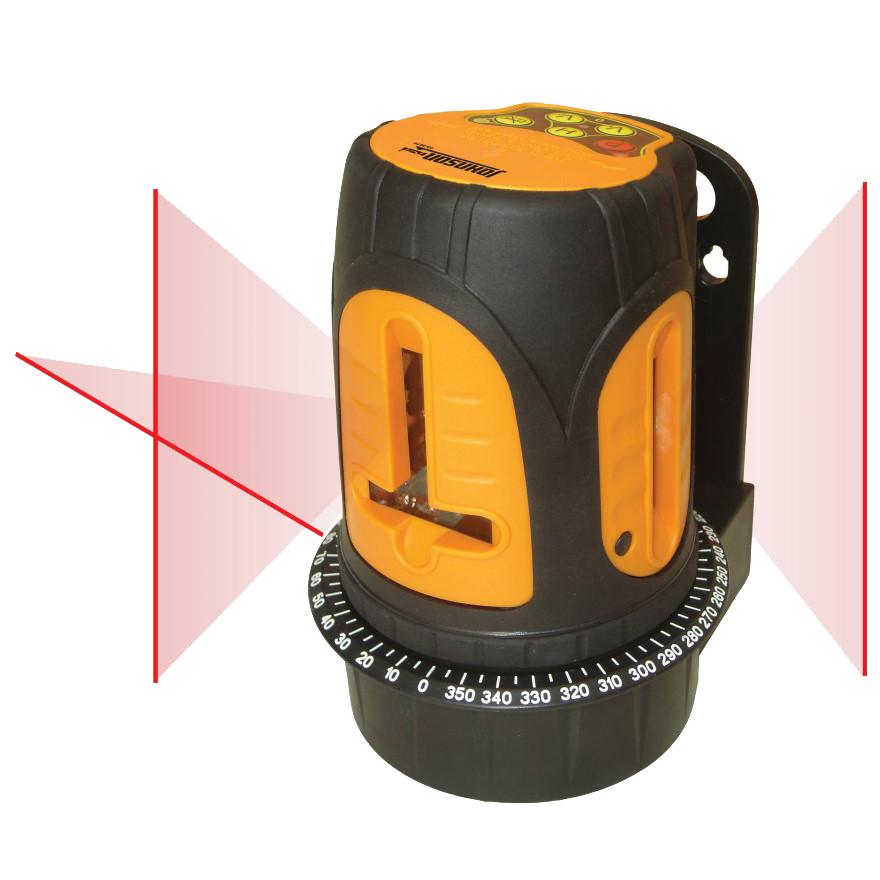

Self-Leveling Cross-Line Laser with 3 Vertical Lines Kit (This product has been discontinued)

MODEL #:  40-6604

Locking mechanism protects inner pendulum during transportation, Manual mode allows unit to tilt to extreme angles, Laser can be rotated 360º, Projects three vertical lines and one horizontal line simultaneously or individually, Self-leveling with visual and audible alarms when beyond leveling range, and Laser beam can be set to pulse for use with optional line detector (not included).  40-6604 Includes > Laser, 3 "AA" alkaline batteries, detector with 9V battery and clamp, tinted glasses, magnetic target, and soft-sided carrying case.

40-6604+ Hover over main image to zoom
40-6604
40-6604
  • Locking mechanism protects inner pendulum during transportation

  • Manual mode allows unit to tilt to extreme angles

  • Laser can be rotated 360§

  • Projects three vertical lines and one horizontal line simultaneously or individually

  • Self-leveling with visual and audible alarms when beyond leveling range

  • Laser beam can be set to pulse for use with optional line detector (included in 40-6604)

40-6604 Includes > Laser, 3 "AA" alkaline batteries, detector with 9V battery and clamp, tinted glasses, magnetic target, and soft-sided carrying case

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-3/16"/50ft. (+/-3mm/10m)

Interior Range:

Up to 200ft. (60m) diameter depending upon light conditions

Exterior Range:

Up to 300ft. Diameter with detector (included in 40-6604)

Self-Leveling Range:

+/- 3 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 10 hours continous use

Dimensions:

3.55" x 3.55" x 5.83" (90x90x148mm)

Weight:

2.2Ibs. (1.0kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11

IP Protection Class:

54

Warranty:

3 Year Warranty

The Johnson Level 40-6604 can be used for the following indoor and outdoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chari rail/trim, closet shelves/drawers, paneling/wainscounting, site preperation, establishing grades, excavating, landscaping-terracing and retaining walls, rough and fine grading, digging basements, setting foundation and footers, retention ponds and septic tank, controlling concrete pours, alignment and plumb of concrete forms, leveling deck floors, establish diagonals and footings for decks/patios, contour framing, drainage.

Replacement Laser Level Red Magnetic Target
Replacement Red Magnetic Target Model: 40-6844 $10.20
Replacement mount image
Replacement Tripod/WallMount for 40-6602 and 40-6604 Model: 40-6397 $14.40


Product Details

Locking mechanism protects inner pendulum during transportation, Manual mode allows unit to tilt to extreme angles, Laser can be rotated 360º, Projects three vertical lines and one horizontal line simultaneously or individually, Self-leveling with visual and audible alarms when beyond leveling range, and Laser beam can be set to pulse for use with optional line detector (not included).  40-6604 Includes > Laser, 3 "AA" alkaline batteries, detector with 9V battery and clamp, tinted glasses, magnetic target, and soft-sided carrying case.



40-6604 Includes > Laser, 3 "AA" alkaline batteries, detector with 9V battery and clamp, tinted glasses, magnetic target, and soft-sided carrying case

Specifications

Leveling Method:

Self-leveling (Pendulum)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-3/16"/50ft. (+/-3mm/10m)

Interior Range:

Up to 200ft. (60m) diameter depending upon light conditions

Exterior Range:

Up to 300ft. Diameter with detector (included in 40-6604)

Self-Leveling Range:

+/- 3 degrees

Power Supply:

3 "AA" alkaline batteries (included)

Battery Life:

Approximately 10 hours continous use

Dimensions:

3.55" x 3.55" x 5.83" (90x90x148mm)

Weight:

2.2Ibs. (1.0kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11

IP Protection Class:

54

Warranty:

3 Year Warranty

Application

The Johnson Level 40-6604 can be used for the following indoor and outdoor applications; drop ceilings, drywall installation, sprinkler installation, HVAC, ceiling joint and rafter alignment, wallpaper and stenciling/painting, tiling (walls and floors), electrical outlets and switches, install conduit and wiring, track lighting, curtain walls/shower doors, windows, cabinet and countertop alignment, soffits, chari rail/trim, closet shelves/drawers, paneling/wainscounting, site preperation, establishing grades, excavating, landscaping-terracing and retaining walls, rough and fine grading, digging basements, setting foundation and footers, retention ponds and septic tank, controlling concrete pours, alignment and plumb of concrete forms, leveling deck floors, establish diagonals and footings for decks/patios, contour framing, drainage.
