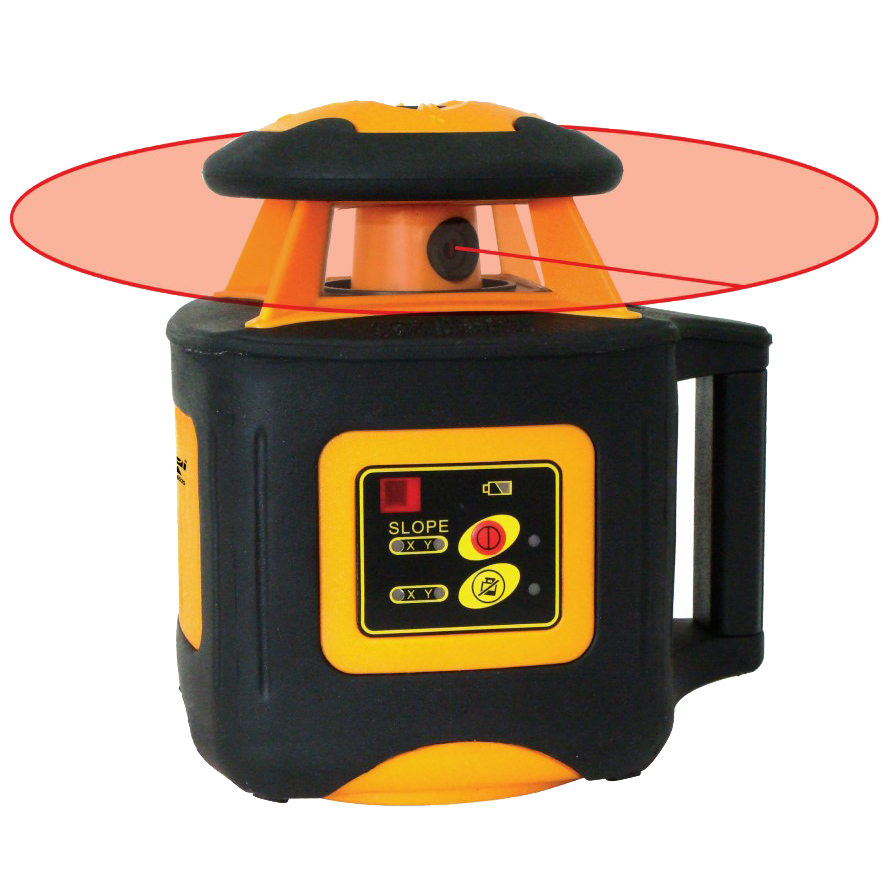

Electronic Self-Leveling Horizontal Rotary Laser System (This product has been discontinued)

MODEL #:  40-6536

Designed for outdoor use and simple set up, Electronic self-leveling in the horizontal plane, Electronically-controlled dual slope feature, Visual and audible alarms when beyond leveling range, Single speed rotation 700 RPM, Slope operation function allows user to perform slope 8 degrees in both x and y axis, and Height of instrument (HI) alarm function ensures product accuracy.  40-6536 Includes > Laser, detector with clamp and 9V battery, multi-function mount, NiMH rechargeable battery pack, alkaline battery compartment (batteries not included), charger, remote control with 9V battery, tinted glasses, magnetic target, and a hard-shell carrying case.

40-6536+ Hover over main image to zoom
40-6536
40-6536
  • Designed for outdoor use and simple set up

  • Electronically-controlled dual slope feature

  • Electronic self-leveling in the horizontal plane

  • Visual and audible alarms when beyond leveling range

  • Single speed rotation 700 RPM

  • Slope operation function allows user to perform slope 8 degrees in both x and y axis

  • Remote control and detector for one person operation

  • Height of Instrument/Tilt alarm function ensures product accuracy

40-6536 Includes > Laser, detector with clamp and 9V battery, multi-function mount, NiMH rechargeable battery pack, alkaline battery compartment (batteries not included), charger, remote control with 9V battery, tinted glasses, magnetic target, and a hard-shell carrying case.

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/16"/100 ft.

Interior Range:

Up to 100 ft. diameter depending upon light conditions

Exterior Range:

Up to 2,000 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter

Slope:

±8°

Auto-Leveling Range:

±5 degrees

Power Supply:

NiMH rechargeable battery pack and 6V adapter (included), 4 "C" alkaline batteries (not included)

Battery Life:

Approximately 28 hours with rechargeable battery pack; 33 hrs with alkaline batteries

Dimensions:

7.4" x 5.9" x 8.15"

Weight:

5.51 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

700 RPM

IP Protection Class:

66

Warranty:

3 Years

The Johnson Level 40-6536 can be used for the following outdoor applications; site preperation, establishing grades, excavating, landscaping-terracing and retaining walls, rough and fine grading, digging basements, setting foundation and footers, retention ponds and septic tanks, controlling concrete pours, alignment and plumb of concrete forms, leveling deck floors, establish diagonals and footings for decks/patios, contour framing, drainage.

Replacement 6V Battery Adapter
Replacement 6V Battery Charger Model: 40-6836 $40.72


Product Details

Designed for outdoor use and simple set up, Electronic self-leveling in the horizontal plane, Electronically-controlled dual slope feature, Visual and audible alarms when beyond leveling range, Single speed rotation 700 RPM, Slope operation function allows user to perform slope 8 degrees in both x and y axis, and Height of instrument (HI) alarm function ensures product accuracy.  40-6536 Includes > Laser, detector with clamp and 9V battery, multi-function mount, NiMH rechargeable battery pack, alkaline battery compartment (batteries not included), charger, remote control with 9V battery, tinted glasses, magnetic target, and a hard-shell carrying case.



40-6536 Includes > Laser, detector with clamp and 9V battery, multi-function mount, NiMH rechargeable battery pack, alkaline battery compartment (batteries not included), charger, remote control with 9V battery, tinted glasses, magnetic target, and a hard-shell carrying case.

Specifications

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

≤5mW

Accuracy:

±1/16"/100 ft.

Interior Range:

Up to 100 ft. diameter depending upon light conditions

Exterior Range:

Up to 2,000 ft. diameter with detector

Remote Range:

Up to 200 ft. diameter

Slope:

±8°

Auto-Leveling Range:

±5 degrees

Power Supply:

NiMH rechargeable battery pack and 6V adapter (included), 4 "C" alkaline batteries (not included)

Battery Life:

Approximately 28 hours with rechargeable battery pack; 33 hrs with alkaline batteries

Dimensions:

7.4" x 5.9" x 8.15"

Weight:

5.51 LBS

Working Temperature:

14°F-113°F

Center Screw Thread:

5/8"-11

Rotation Speeds:

700 RPM

IP Protection Class:

66

Warranty:

3 Years

Application

The Johnson Level 40-6536 can be used for the following outdoor applications; site preperation, establishing grades, excavating, landscaping-terracing and retaining walls, rough and fine grading, digging basements, setting foundation and footers, retention ponds and septic tanks, controlling concrete pours, alignment and plumb of concrete forms, leveling deck floors, establish diagonals and footings for decks/patios, contour framing, drainage.

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.
